Rotation Luminaire Goniospectroradiometer

Product No: LSG-1800CCD

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description
  • Download
  • LSG-1800CCD/LSG-1700CCD goniospectroradiometer is an automatic goniophotometric instrument for luminous intensity distribution measurement with facility for rotating the light source. The LSG-1800CCD can do the spatial CCT test and the intensity distribution test. It is for industrial laboratory photometric data measurement of luminaires such as LED luminaires, HID luminaires, fluorescent lamps and so on.

    LSG 1800CCD Goniospectroradiometer Darkroom

    Specification:
    • Meets the requirements of CIE, IEC, IES LM-79 & GB standards

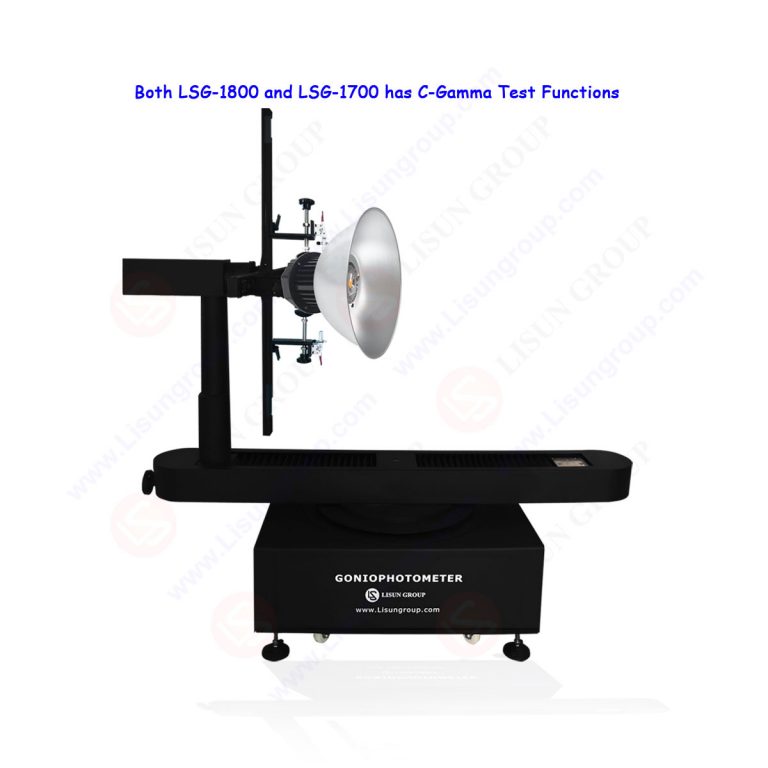

    • Reaching many measurement ways such as B-Beta & C-Gamma (LSG-1800CCD) and C-Gamma (LSG-1700CCD)
    • The luminaries under test rotates around an angle of (γ)±180°(or 0-360°) and the luminaries rotates around itself with an angle of (C)±180°(or 0-360°)
    • Luminosity testing range: Illuminance 0.001lx~10,000lx; Light Intensity 1.0cd~107cd(detector)
    • The accuracy of angle: 0.2°
    • Test CCT and spectrum distribution for the lamp and can export excel
    • Spectral wavelength range: 380~780nm; Wavelength accuracy: ±0.2nm
    • Accuracy of chromaticity coordinates x, y: ±0.0015
    • Correlated color temperature range: 1000~100000K, Resolution: 1K
    • Accuracy of photometry: Class 1
    • Testing accuracy: 3%(Under the standard lamp); Stray light: less than 0.2%
    • English version software can run on Win 7, Win8 or Win 10

    LISUN Model The max size for the Luminaires Under Test Max Weight
    C-Gamma Test with One Pillar B-Beta Test with Two Pillars
    LSG-1800CCD 1600*550 700*600 50kg
    LSG-1700CCD 1600*550 N/A 40kg
