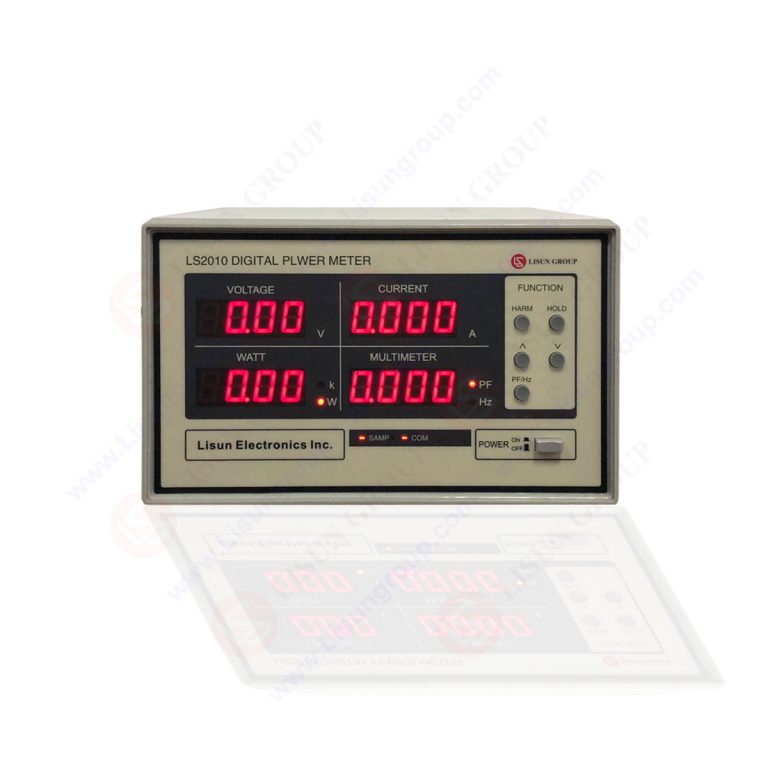

Digital Power Meter (Harmonic Analyzer Model)

Name: Digital Power Harmonic Analyzer Meter
Brand: LISUN
SKU: LS2010
Price: 495 USD
Availability: InStock
Rating: 5 (1 reviews)

Product No: LS2010

Specifications
Downloads
Standards

Specification:
• Measure Vrms, lrms, W, PF, Hz and Harmonic;
• Harmonic distortion analysis for voltage & current, display total harmonic and 0-50 times;
• Voltage range: 10.0-600.0V (Auto range), Current range: 0.010-20.00A (Auto range)
• Accuracy: ± (0.4% reading + 0.1% range + 1 digit);
• Simultaneously display Vrms, lrms, W, PF value on 4 windows, suitable for production line;
• Its software can be run in Win7, Win8 , Win10 and Win11 to test and print the voltage, current and harmonic data/curve
• It also can be communicated with LISUN LPCE and LSG Series Test System
Tags：LS2010 , LS2011 , LS2030 , LS2050B
LS2010 Calibrate Certificate
