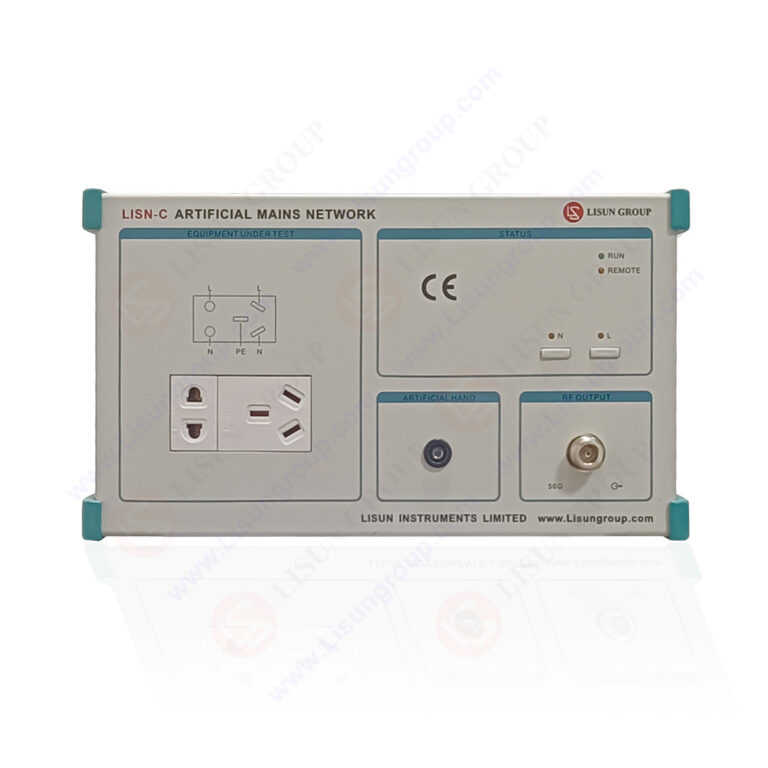

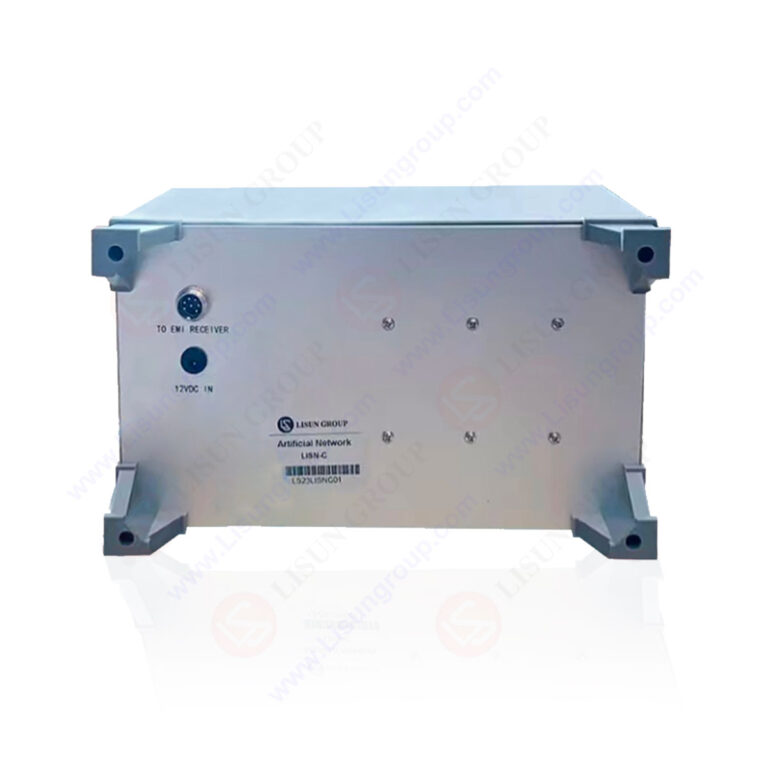

Artificial Network | Line Impedance Stabilization Network

Product No: LISN-C

  • Specifications
  • Downloads
  • Applications
  • Standards
  • Tech Articles

  • Artificial power supply networks (LISN/AMN, Line Impedance Stabilized Networks) are connected in series between the power grid and the device under test (DUT) during EMI conducted interference testing. They output standardized impedance in the 9kHz~30MHz test frequency band, isolating background noise from the power grid and filtering out radio frequency interference from the external power grid, providing a clean power supply environment for the DUT. The device’s RF measurement port can couple and extract the conducted interference voltage generated by the power terminals of the DUT. An external EMI receiver can then be connected to complete the acquisition and spectrum analysis of the power line terminal interference voltage, avoiding test deviations caused by fluctuations in real power grid impedance. This ensures the reproducibility and comparability of test results under different laboratory conditions and time periods, and is widely used for EMI conducted interference certification testing of products such as lighting equipment and information technology equipment.

    Standard:

    标准号 标准名称
    CISPR 16‑1‑2:2014 Specification for radio disturbance and immunity measuring apparatus and methods‑Part1‑2:Radio disturbance and immunity measuring apparatus‑Coupling devices for conducted disturbance measurements
    GB/T 6113.102‑2018 无线电骚扰和抗扰度测量设备和测量方法规范 第 1‑2 部分：无线电骚扰和抗扰度测量设备 传导骚扰测量的耦合装置

    Specifications:

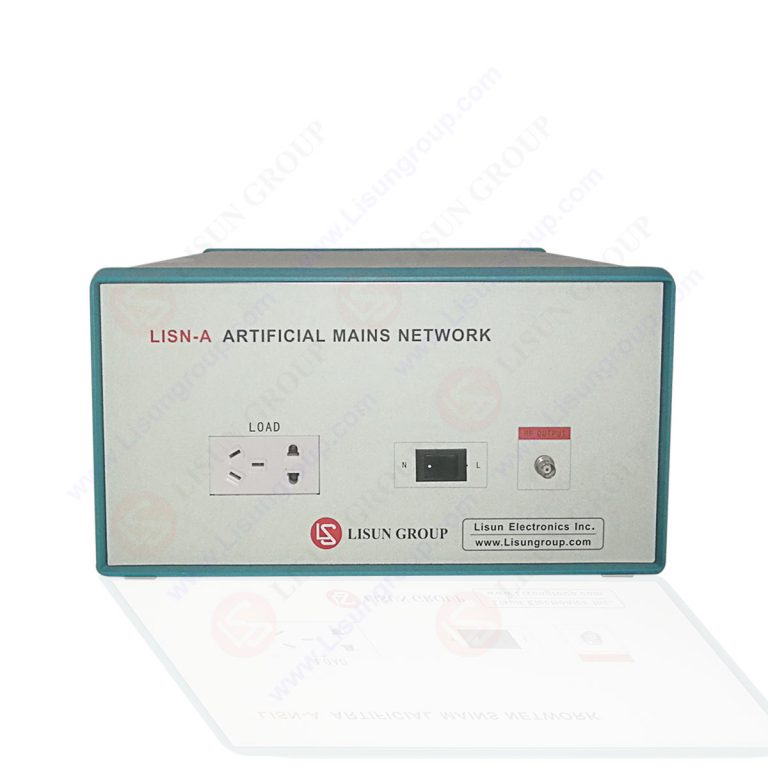

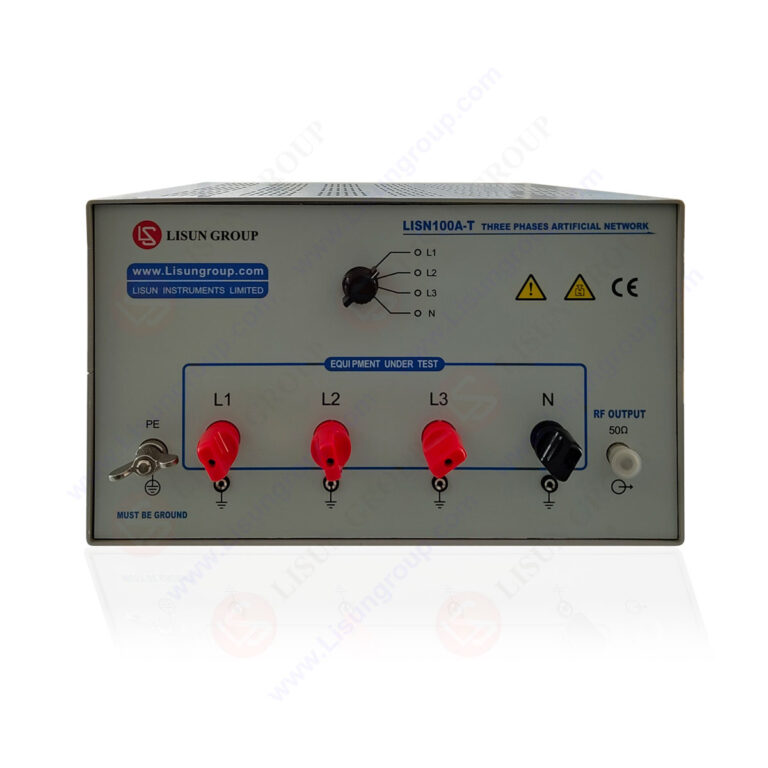

    LISUN Model LISN-A LISN-C LISN-H LISN50A-T LISN100A-T LISN200A-T
    Max Current for EUT 5A 16A 36A 50A*4 100A*4 200A*4
    Max Voltage for EUT AC/DC250V，50Hz/60Hz AC400V/DC600V，50Hz/60Hz
    Output Phase Single Phase：L/N/PE Three Phase：L1/L2/L3/N
    Output Impedance 50Ω/50μH+5Ω 50Ω/50μH
    Test Frequency 9k~30MHz 150k~30MHz
    Meets Standard CISPR 16-1-2:2014 Table 1 and Table 2 CISPR 16-1-2:2014 Table 2

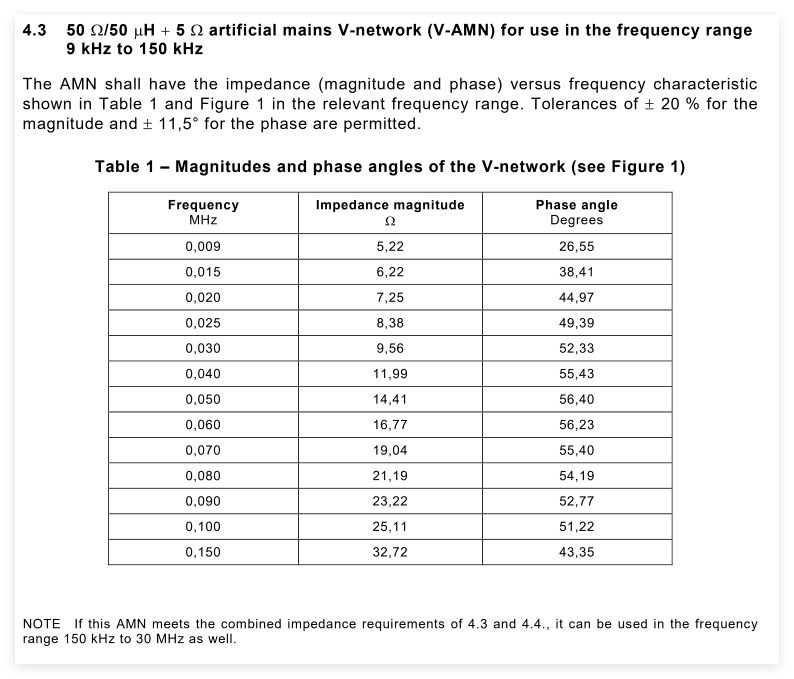

    CISPR 16-1-2:2014 Table 1

    CISPR 16-1-2:2014 Table 1

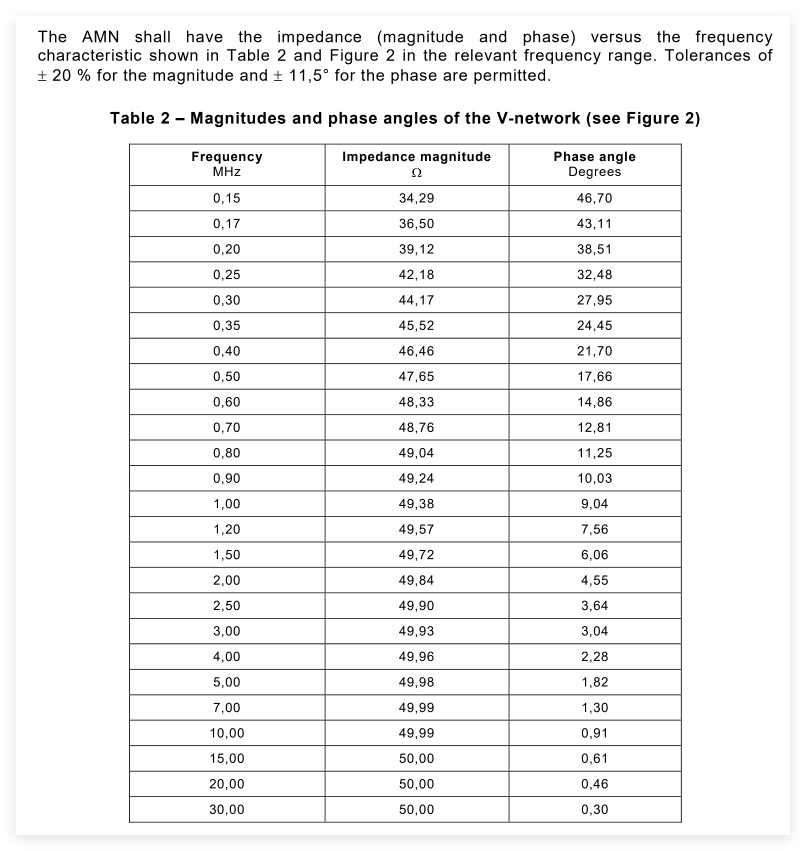

    CISPR 16-1-2:2014 Table 2

    CISPR 16-1-2:2014 Table 2
