IEC 60529 IPX1-IPX2 Vertical Rain Drip Test Device for Water Drop Verification

Abstract
In the design and manufacturing of modern electrical and electronic products, automotive components, and outdoor lighting equipment, the waterproof performance of product enclosures is a key indicator for assessing their environmental adaptability and long-term reliability. The IP (Ingress Protection) ratings defined by the International Electrotechnical Commission (IEC) standard IEC 60529 provide a globally unified criterion for quantifying this performance. Among these, the IEC 60529 IPX1-IPX2 Vertical Rain Drip Test Device for Water Drop Verification plays a foundational and critical role. It is specifically designed to simulate and verify a product’s protective capability against vertically falling or slightly angled dripping water. This article aims to systematically interpret the test requirements and scientific principles of the IPX1 and IPX2 ratings and provide an in-depth analysis of how professional test equipment achieves standardized testing through precise design. Using the vertical drip test module within the LISUN JL-XC series Waterproof Test Chambers as a core example, the article elaborates on its technical implementation, key parameters, and its essential value in R&D verification, production quality inspection, and compliance certification. It offers professional insights for product safety design and quality control in related industries.

1. Introduction: The Cornerstone of Waterproof Rating Certification – The Vertical Drip Test
As electronic products expand into complex environments such as outdoors, vehicles, and industrial settings, their enclosures must effectively resist water ingress to prevent circuit short circuits, functional failures, and even safety incidents. The IP (Ingress Protection) rating system established by the IEC 60529 standard has become the globally recognized framework for evaluating the protective performance of product enclosures. Within the sequence of waterproof tests in this system, the assessment performed by the IEC 60529 IPX1-IPX2 Vertical Rain Drip Test Device for Water Drop Verification is the most fundamental and frequently required entry-level waterproof evaluation. It simulates scenarios where products are exposed to condensation, vertical rainfall, or dripping caused by installation tilt. Accurately understanding and implementing this test is not only a prerequisite for products to meet mandatory or recommended domestic and international standards such as IEC 60529 and GB/T 4208 but also a critical step for manufacturers to demonstrate basic product reliability, avoid early failure risks, and obtain market access qualifications.

2. In-Depth Analysis of IPX1 and IPX2 Ratings under IEC 60529
The second characteristic numeral of the IP code specifically indicates the degree of protection against water ingress, with a higher number signifying greater protection. IPX1 and IPX2 represent the first two levels of waterproof protection.

2.1 Test Definitions and Simulated Scenarios
IPX1 (Protection against vertically falling water drops): This rating requires that the enclosure protect against harmful effects due to vertically falling water drops. It simulates the basic condition of a product in its normal installed orientation encountering condensation or vertical rain.

IPX2 (Protection against vertically falling water drops when enclosure tilted up to 15°): When the enclosure is tilted up to 15° from the vertical in any direction, it must protect against harmful effects due to vertically falling water drops. This simulates a dripping water environment when a product might be slightly tilted in actual use due to an uneven mounting base or structural reasons.

2.2 Standardized Test Methodology
To ensure the comparability and repeatability of test results worldwide, IEC 60529 imposes extremely stringent regulations on the core parameters of the test equipment:

• Dripping Water Device: A drip plate with holes of φ0.4mm diameter, arranged in a uniform 20x20mm grid pattern, must be used.
• Water Precipitation Rate: The water flow must be adjusted so that the precipitation rate on the tested surface is 1.0 mm/min (with a tolerance of ±0.5 mm/min).
• Test Duration: The IPX1 test lasts for 10 minutes; for the IPX2 test, the sample must be tilted to four predetermined positions 90° apart (or placed on a slowly rotating table) for 2.5 minutes each, totaling 10 minutes.
• Pass/Fail Criteria: After the test, upon opening the enclosure, there should be no harmful quantity of water accumulated inside, and components that could affect safety or normal function should not be damp.

Test Element	IPX1 Test Conditions	IPX2 Test Conditions
Protection Objective	Vertically falling water drops	Vertically falling water drops when the enclosure is tilted ≤ 15°
Sample State	Normal mounted position (upright)	Tilted 15° in four directions around the vertical axis
Core Drip Parameters	Hole dia. 0.4mm, spacing 20mm, precipitation 1.0±0.5 mm/min	Hole dia. 0.4mm, spacing 20mm, precipitation 1.0±0.5 mm/min
Test Time	Continuous for 10 minutes	2.5 minutes per tilted position, total 10 minutes
Key Equipment Function	Fixed vertical drip plate, sample table	Sample table with precise 15° tilt capability (or slow turntable)

3. Technical Implementation of Professional Test Equipment: The JL-XC Series Example

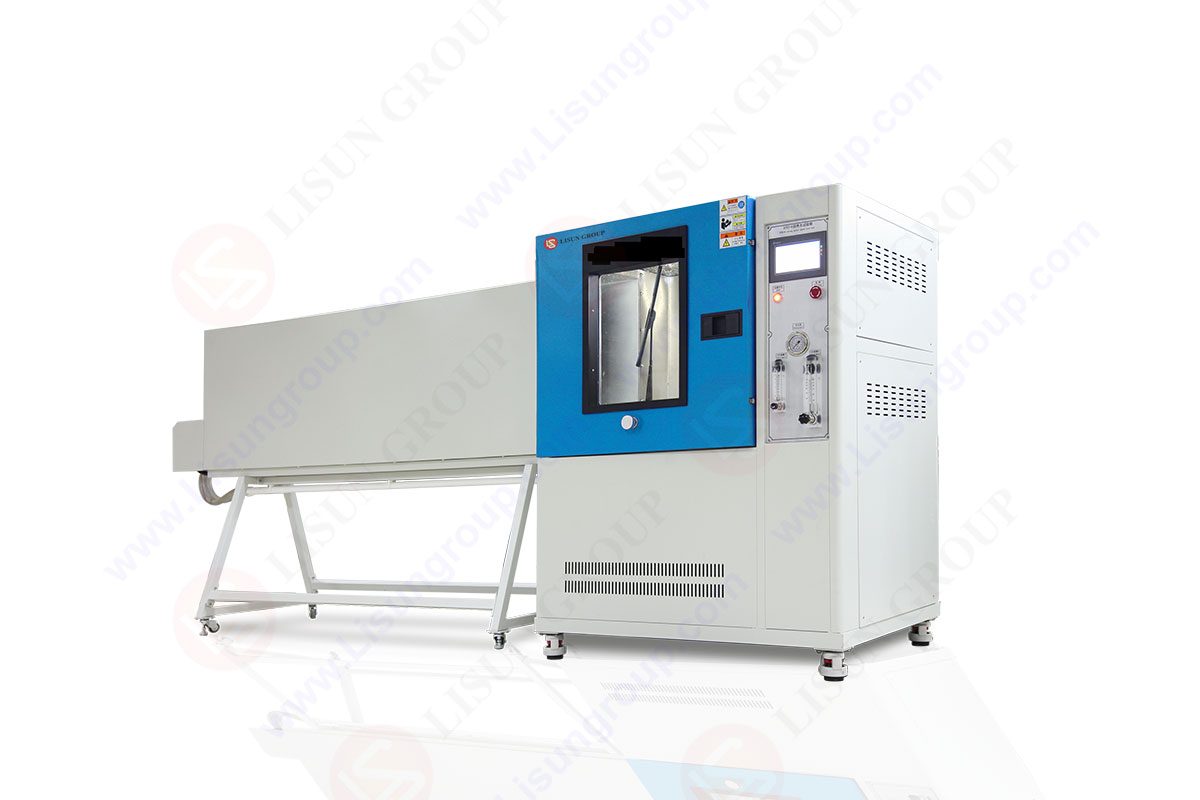

A precise and reliable IEC 60529 IPX1-IPX2 Vertical Rain Drip Test Device for Water Drop Verification must translate the standard clauses into precisely executable physical controls. The drip test module of the LISUN JL-XC series Waterproof Test Chambers is designed for this very purpose.

3.1 Precise Drip Generation and Control System
The core of the equipment is a drip plate manufactured strictly according to the standard, ensuring accuracy in hole spacing and diameter. It is equipped with a high-precision flow meter and regulating valve, allowing the operator to manually adjust the flow within the range of 1-5 mm/min and maintain it within the ±0.5 mm/min tolerance band. This is the fundamental guarantee for the consistency of test severity. Some advanced models also feature a compressed air drying function to blow dry the water passages in the drip plate after maintenance, preventing scale buildup from clogging the micro-holes.

3.2 Flexible and Varied Sample Placement Solutions
To accommodate products of different sizes and test requirements, the equipment offers diverse sample table options. For IPX1 testing, the sample is placed horizontally on a liftable turntable. For IPX2 testing, the sample table features precise 0° or 15° tilt locking capability. The turntable is typically driven by a stepper motor, with speed adjustable via a touchscreen in the range of 1-5 r/min, and supports continuous or alternating forward/reverse rotation to ensure all sides of the sample are fully evaluated.

3.3 Integrated Design and User-Friendly Operation
As part of the JL-XC series, the drip test module is often integrated with higher-grade spray and immersion modules. The equipment uses a SUS304 stainless steel inner chamber for corrosion resistance. It is equipped with waterproof LED lighting and a large observation window for real-time monitoring. An intelligent touchscreen interface allows users to directly select test grades like “IPX1” or “IPX2,” after which the system automatically matches standard parameters, simplifying the operation process and reducing the risk of human error.

Equipment Model / Belonging Module	JL-12CP-600M (Standalone Drip Chamber)	JL-1234CP-R400 (Drip + Swing Tube Combo Chamber)	JL-123456CP-R400 (Full-Function Integrated Chamber)
Core Testing Capability	IPX1, IPX2	IPX1, IPX2, IPX3, IPX4	IPX1, IPX2, IPX3, IPX4, IPX5, IPX6
Drip Plate Area	600*600mm	200*200mm (IPX1/2 zone)	200*200mm (IPX1/2 zone)
Sample Table Features	Dia. 600mm, load 50kg, tiltable 15°	Dia. 400mm, load 50kg, tiltable 15°, liftable	Dia. 400mm, load 50kg, tiltable 15°, liftable
Test Control	Manual flow adjustment, 0-999 min timer	Touchscreen control, manual flow adjustment, presettable parameters	Integrated touchscreen control, multiple test modes
Equipment Characteristics	Compact structure, focused on basic drip test	Space-saving, covers common rain spray ratings (IPX3/4)	Comprehensive functionality, one-stop testing from drip to strong jet
Typical Application	Production line quick sampling, education/R&D	Small/medium component suppliers, 3rd-party lab routine certification	Large manufacturer QC centers, comprehensive testing/certification bodies

4. Core Application Value and Equipment Selection Guidance
The application of the IEC 60529 IPX1-IPX2 Vertical Rain Drip Test Device for Water Drop Verification spans multiple critical points in the product lifecycle.

4.1 Core Application Value
• Design Verification: During early product R&D, it verifies enclosure sealing design, seam treatment, and drain hole effectiveness, avoiding major design changes later.
• Quality Control: Used for sampling or 100% inspection at the end of the production line to ensure consistent waterproof performance across batches, forming an important line of defense for product quality consistency.
• Compliance Certification: It is a mandatory test item for products to obtain safety certifications like CCC, CE, and UL, proving they meet minimum waterproof requirements and providing key evidence for market access.
• Supply Chain Management: Automakers or brand owners can require their component suppliers to provide verification reports based on this test to manage supply chain quality risks.

4.2 Equipment Selection Guidance
Choosing the right equipment requires a comprehensive consideration of testing needs, efficiency, and budget:

• Solely for Basic Testing Needs: If only IPX1/2 testing is required and sample volume is not large, choosing a standalone drip chamber like the JL-12CP series is cost-effective and efficient.
• For Multi-Rating Routine Testing Needs: If coverage from drip to water splash protection (IPX3/4) is needed, a combo chamber like the JL-1234CP series offers good value for money and saves lab space.
• For Full-Spectrum R&D and Certification Needs: For R&D centers or large testing laboratories that need to perform full-sequence IP certification for various products, a full-function integrated chamber like the JL-123456CP series provides maximum flexibility and testing efficiency.

5. Conclusion
In summary, the IEC 60529 IPX1-IPX2 Vertical Rain Drip Test Device for Water Drop Verification is far more than a simple “drip” tool. It is an indispensable bridge connecting international standards with the physical performance of products, a scientific instrument that enables the quantitative evaluation of waterproof ratings. Through standardized water droplets, precise angle and time control, it transforms abstract protection levels into intuitive and repeatable test results.

Investing in well-designed, standard-compliant, and intelligently operated professional test equipment like the LISUN JL-XC series means that a company builds a fundamental verification capability for its product quality and reliability. In today’s increasingly competitive market where product reliability is a core competency, deeply understanding and correctly applying such foundational test equipment is the cornerstone for ensuring product safety, winning customer trust, and smoothly entering global markets. It safeguards not only the physical boundaries of the product but also the brand’s quality reputation and market prospects.
