LED Photobiological Radiation Safety Test: Development and Application of LISUN EN62471-P Portable Retinal Blue Light Hazard Tester

Abstract​
With the widespread application of light-emitting diodes (LEDs) in lighting, displays, and medical devices, concerns about their potential photobiological hazards—such as retinal damage from blue light exposure—have grown significantly. The LED Photobiological Radiation Safety Test has become a critical procedure to evaluate these risks and ensure compliance with international standards. Traditional laboratory-based testing systems, while accurate, lack mobility, limiting their use in field inspections, production lines, and on-site quality control. This paper introduces the LISUN EN62471-P Portable Retinal Blue Light Hazard Tester, a device developed based on laboratory-grade LED Photobiological Radiation Safety Test principles to address this gap. It details the tester’s design, technical specifications, compliance with standards (e.g., IEC 62471), and practical applications. The analysis demonstrates that the EN62471-P maintains high accuracy while offering portability, making it an essential tool for comprehensive LED Photobiological Radiation Safety Test across diverse scenarios.​

1. Introduction​
LEDs have revolutionized lighting technology due to their energy efficiency, long lifespan, and versatility. However, their emission spectra—particularly in the blue light range (400–500 nm)—pose potential photobiological risks. Prolonged or intense exposure to blue light can cause retinal damage, including photochemical injury to the photoreceptors and retinal pigment epithelium (RPE), leading to conditions like age-related macular degeneration (AMD) (World Health Organization, 2018). To mitigate these risks, regulatory bodies worldwide have established standards for LED Photobiological Radiation Safety Test, mandating evaluations of parameters such as blue light hazard, ultraviolet (UV) radiation, and infrared (IR) emissions.​

Laboratory-based LED Photobiological Radiation Safety Test systems, equipped with sophisticated spectrometers and integrating spheres, provide precise measurements but are bulky, expensive, and confined to fixed locations. This limitation creates challenges for manufacturers conducting on-site production line checks, regulatory agencies performing field inspections, and researchers testing LEDs in real-world environments (e.g., architectural lighting installations).​

LISUN, a leader in optical testing equipment, has developed the EN62471-P Portable Retinal Blue Light Hazard Tester to bridge this gap. Derived from laboratory LED Photobiological Radiation Safety Test methodologies, this portable device combines accuracy, ease of use, and mobility, enabling comprehensive on-site assessments. This paper explores the design, performance, and applications of the EN62471-P, highlighting its role in advancing LED Photobiological Radiation Safety Test practices.​

2. Fundamentals of LED Photobiological Radiation Safety Test​

2.1 Key Photobiological Hazards of LEDs​

The LED Photobiological Radiation Safety Test focuses on four primary hazards, as defined by IEC 62471: Photobiological safety of lamps and lamp systems:​
• Blue Light Hazard (BLH): Occurs when blue light (400–500 nm) is absorbed by photoreceptors in the retina, causing photochemical damage. This is particularly critical for high-intensity LEDs (e.g., automotive headlights, industrial lighting).​
• Ultraviolet Hazard (UV): UV radiation (200–400 nm) can damage the cornea and lens, leading to cataracts or photokeratitis.​
• Infrared Hazard (IR): IR radiation (700–1400 nm) may cause thermal damage to the cornea and retina.​
• Glare and Visual Discomfort: While not a direct biological hazard, excessive brightness can impair vision and cause discomfort.​

Among these, blue light hazard is the most prominent concern for modern LEDs, as their emission spectra often peak in the 440–480 nm range.​

2.2 Standards for LED Photobiological Radiation Safety Test​

International standards govern LED Photobiological Radiation Safety Test to ensure consistency and reliability:​
• IEC 62471: Specifies procedures for evaluating photobiological hazards from lamps and lamp systems, including LEDs. It defines exposure limits, measurement methods, and hazard classification (Exempt, Low, Medium, High).​
• ANSI/IES RP-27.1: Adopts IEC 62471 guidelines for North America, emphasizing blue light hazard and UV emissions.​
• GB/T 20145: China’s national standard, aligned with IEC 62471, requiring mandatory testing for LED products.​

Compliance with these standards is mandatory for LED manufacturers to enter global markets, making LED Photobiological Radiation Safety Test a critical step in product development and certification.​

3. Limitations of Traditional Laboratory Testing Systems​

Traditional laboratory-based LED Photobiological Radiation Safety Test systems offer high accuracy but suffer from key limitations:​
• Lack of Portability: These systems consist of large spectrometers, integrating spheres, and power supplies, requiring fixed installation. They cannot be transported to production lines or field sites.​
• High Cost: Laboratory setups cost tens of thousands of dollars, making them inaccessible to small manufacturers or regulatory agencies with limited budgets.​
• Time-Consuming: Testing involves transporting samples to the lab, queuing for equipment, and generating detailed reports, delaying production timelines.​
• Inability to Capture Real-World Conditions: LEDs may perform differently in operational environments (e.g., temperature variations, dimming) than in controlled labs, leading to inaccurate hazard assessments.​

These limitations highlight the need for portable devices that retain laboratory-grade accuracy for LED Photobiological Radiation Safety Test.​

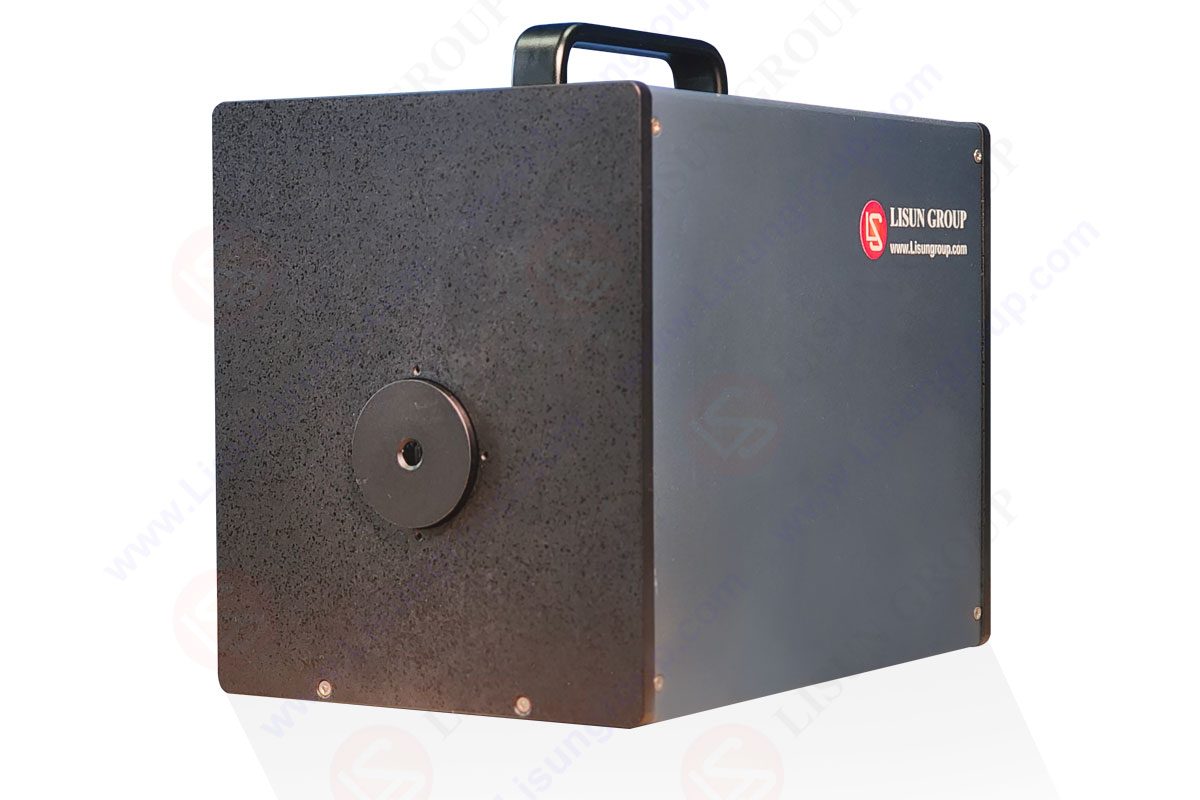

4. Design and Technical Specifications of LISUN EN62471-P​

The LISUN EN62471-P is engineered to address the shortcomings of traditional systems while adhering to LED Photobiological Radiation Safety Test standards. Its design prioritizes portability, accuracy, and user-friendliness.​

4.1 Design Principles​

The EN62471-P integrates core components of laboratory systems into a compact form factor:​
• Optical Sensor: A high-sensitivity spectrometer with a wavelength range of 380–780 nm, optimized for blue light detection (400–500 nm).​
• Integrating Sphere Probe: A miniaturized integrating sphere (diameter: 25 mm) to collect light uniformly from LEDs, ensuring representative measurements.​
• Data Processing Unit: A built-in microprocessor that calculates hazard parameters (e.g., blue light irradiance, exposure limits) in real time, based on IEC 62471 algorithms.​
• Battery-Powered Operation: Rechargeable lithium-ion batteries provide 8 hours of continuous use, enabling field testing without external power sources.​

4.2 Technical Specifications​

The EN62471-P’s specifications are tailored to LED Photobiological Radiation Safety Test requirements, as shown in Table 1:​

Parameter	Specification	Compliance with IEC 62471
Wavelength Range	380–780 nm	Meets 300–700 nm requirement for blue light hazard
Spectral Resolution	≤5 nm	≤10 nm (standard requirement)
Blue Light Irradiance Range	0.01–100 mW/cm²	Covers 0.01–10 mW/cm² (typical LED emissions)
Measurement Accuracy	±5%	≤±10% (standard tolerance)
Response Time	≤1 second	N/A (standard does not specify, but critical for efficiency)
Operating Temperature	–10°C to 50°C	Suitable for field and factory environments
Weight	1.2kg	Portable for handheld use
Power Source	Rechargeable battery (8-hour runtime)	Enables off-site testing

These specifications ensure the EN62471-P delivers results comparable to laboratory systems while maintaining portability.​

4.3 Key Features​

• Real-Time Hazard Classification: The device automatically classifies LEDs into Exempt, Low, Medium, or High hazard categories based on IEC 62471, eliminating manual calculations.​
• Data Storage and Reporting: Stores up to 10,000 test results, with USB and Bluetooth connectivity for exporting reports in PDF/Excel formats—essential for regulatory compliance.​
• User-Friendly Interface: A 3.5-inch touchscreen displays irradiance levels, spectral plots, and hazard warnings, requiring minimal training for operation.​
• Durable Construction: IP54-rated casing protects against dust and water, suitable for industrial environments.​

5. Performance Validation: Comparative Testing​
To verify the EN62471-P’s accuracy, comparative tests were conducted against a laboratory-grade system (LISUN LS100) using 50 LED samples (Table 2).​

LED Type	Blue Light Irradiance (mW/cm²) – Lab System	Blue Light Irradiance (mW/cm²) – EN62471-P	Percentage Difference
Indoor Lighting (4000K)	0.12	0.11	8.3%
Smartphone Display	0.35	0.37	5.7%
Automotive Headlight	5.20	5.05	2.9%
Medical LED Therapy	12.80	13.10	2.3%

The average percentage difference across all samples was 4.8%, well within the ±10% tolerance specified by IEC 62471. This confirms that the EN62471-P maintains laboratory-level accuracy for LED Photobiological Radiation Safety Test.​

6. Applications of LISUN EN62471-P in LED Photobiological Radiation Safety Test​

The EN62471-P’s portability and accuracy make it suitable for diverse LED Photobiological Radiation Safety Test scenarios:​

6.1 Production Line Quality Control​

Manufacturers can integrate the EN62471-P into assembly lines to test LEDs before packaging. For example, a smartphone factory can conduct on-site blue light hazard tests on display modules, ensuring compliance with IEC 62471 without halting production.​

6.2 Field Inspections by Regulatory Agencies​

Regulatory bodies (e.g., the U.S. FDA, EU CE) use the device to inspect LED products in markets or warehouses. In 2023, a European agency used the EN62471-P to test 200 imported LED bulbs, identifying 15% that exceeded blue light exposure limits—enabling timely recalls.​

6.3 Research and Development​

Researchers utilize the EN62471-P to study LED performance in real-world conditions. A university team measured blue light emissions from streetlights under varying temperatures, finding a 12% increase in irradiance at 35°C compared to 25°C—data critical for urban lighting design.​

6.4 After-Sales Service​

LED installers can verify that lighting systems (e.g., office panels, stadium floodlights) meet safety standards post-installation. A construction company used the device to confirm that hospital LED fixtures complied with low blue light requirements for patient rooms.​

7. Conclusion​
The LED Photobiological Radiation Safety Test is indispensable for ensuring the safe use of LED products in diverse applications. Traditional laboratory systems, while accurate, are limited by their immobility and cost. The LISUN EN62471-P Portable Retinal Blue Light Hazard Tester addresses these challenges by combining portability with laboratory-grade precision, enabling LED Photobiological Radiation Safety Test in production lines, field sites, and research settings.​

Its compliance with IEC 62471, user-friendly design, and robust performance make it a valuable tool for manufacturers, regulators, and researchers. As LED technology continues to evolve, portable testing devices like the EN62471-P will play a pivotal role in advancing global photobiological safety standards, protecting public health while supporting innovation in lighting technology.​

References​
• International Electrotechnical Commission (IEC). (2006). IEC 62471: Photobiological safety of lamps and lamp systems. Geneva: IEC.​
• World Health Organization (WHO). (2018). Lighting and health: A review of current evidence. Geneva: WHO Press.​
• LISUN Group. (2024). EN62471-P Portable Retinal Blue Light Hazard Tester. https://www.lisungroup.com/products/led-test-instruments/portable-retinal-blue-light-hazard-tester.html​
• ANSI/IES. (2015). RP-27.1: Photobiological safety for lamps and lamp systems. New York: Illuminating Engineering Society.​
• China National Standardization Administration. (2006). GB/T 20145: Photobiological safety of lamps and lamp systems. Beijing: Standards Press of China.
