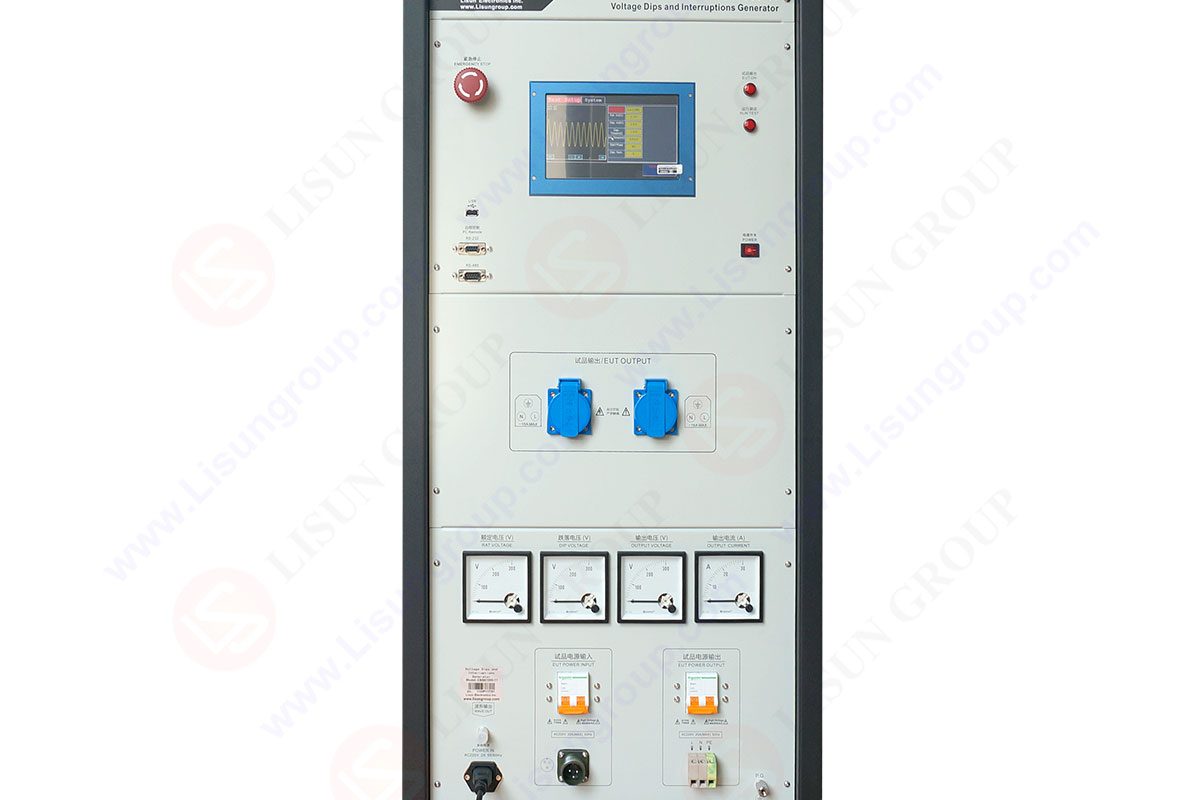

The voltage dip and interruptions generator is specially designed according to the characteristics and requirements of EMS measurement under a sudden reduction or interruption of the voltage at a point. CSS61000-11/ CSS61000-11T uses a big LCD touch screen in both English and Chinese operating interface. It has better performance such as high reliability, convenient operation. It fully meets the standard requirements of IEC 61000-4-11, EN 61000-4-11 and GB/T17626.11
Q1: The rate voltage displayed on the meter under the equipment is incorrect and very low. In addition, when the drop voltage is set on the touch screen, the dip table of the following header has no response.
A1: Note: there is no such problem with new equipment. Only older equipment may have this problem.
If the rated voltage of the connected EUT is too low, such as 60V (The measured rated voltage is too low because the wiring is not connected well), the above situation will occur. Click “system” on the touch screen.
Click to enter the setting interface.
Enter this interface is required a password. Please take clear photos of the following parts to us, and then we will provide the corresponding password.
After entering the setting interface, click the following button.
Click the buttons marked on the left and right in the figure below.
Then you will see that the rated voltage displayed by the rate meter rises to the approximate position shown in the figure below.
Then turn off the equipment, reconnect all wires of the equipment and the sample. And restart the device to restore normal. As figure below:
