As a revised edition released in 2023, IEC 61869-1:2023 supersedes the 2007 version of the same standard as well as IEC 61869-6:2016, updating technical content to meet the latest industry needs of electrical equipment. It should be noted that this standard does not apply to low-voltage instrument transformers (≤1 kV AC or ≤1.5 kV DC), which are instead regulated by IEC 61869-201. Serving as a foundational guideline, it provides uniform technical specifications for the design, production, testing and quality evaluation of instrument transformers, ensuring their compatibility and reliability in electrical systems.
LISUN supplies the fully test solutions for the following IEC 61869-1:2023, please see the below excel table:
| IEC 61869-1:2023 Clause and Subject | LISUN MODEL |
| 4.3.3 Ambient temperature | GDJS-015B |
| 4.3.4 Vibrations or earth tremors | LVD-100KG |
| 6.4 Requirements for temperarure rise of parts and components | WS-1 |
| 7.2.2 Temperature rise test | |
| 6.6 Requirements for the external insulation Table 13 creepage distances | CK-1 |
| 6.10 Degrees of protection by enclosures | JL-X |
| 7.2.3 Impulse voltage withstand teston primary terminals | SUG255 |
| 7.2.5.2.5 Voltage dips and short interruption test | CSS61000-11 |
| 7.2.5.2.6 Surge immunity test | SG61000-5 |
| 7.2.5.2.7&7.2.5.2.8 Conducted immunity test | RFCI61000-6 |
| 7.2.5.2.9 Electrical fast transient/burst immunity test | EFT61000-4 |
| 7.2.5.2.10 Damped oscillatory waves immunity test | DOW61000-18 |
| 7.2.5.2.11 Electrostatic discharge immunity test | ESD61000-2 |
| 7.2.5.2.12 Power-frequency magnetic field immunity test | PFM61000-8A |

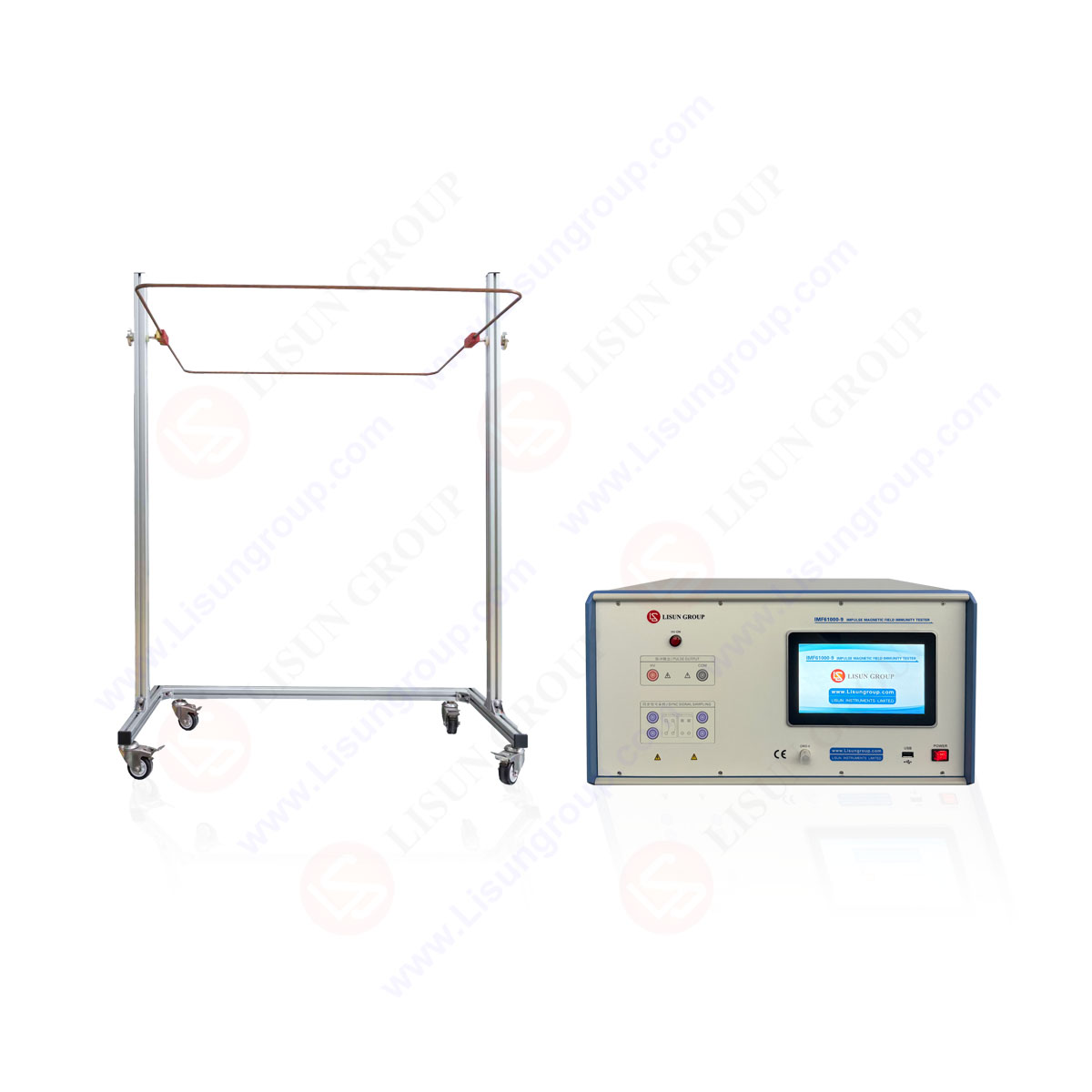

| 7.2.5.2.13 Impulse magnetic field immunity test | IMF61000-9 |

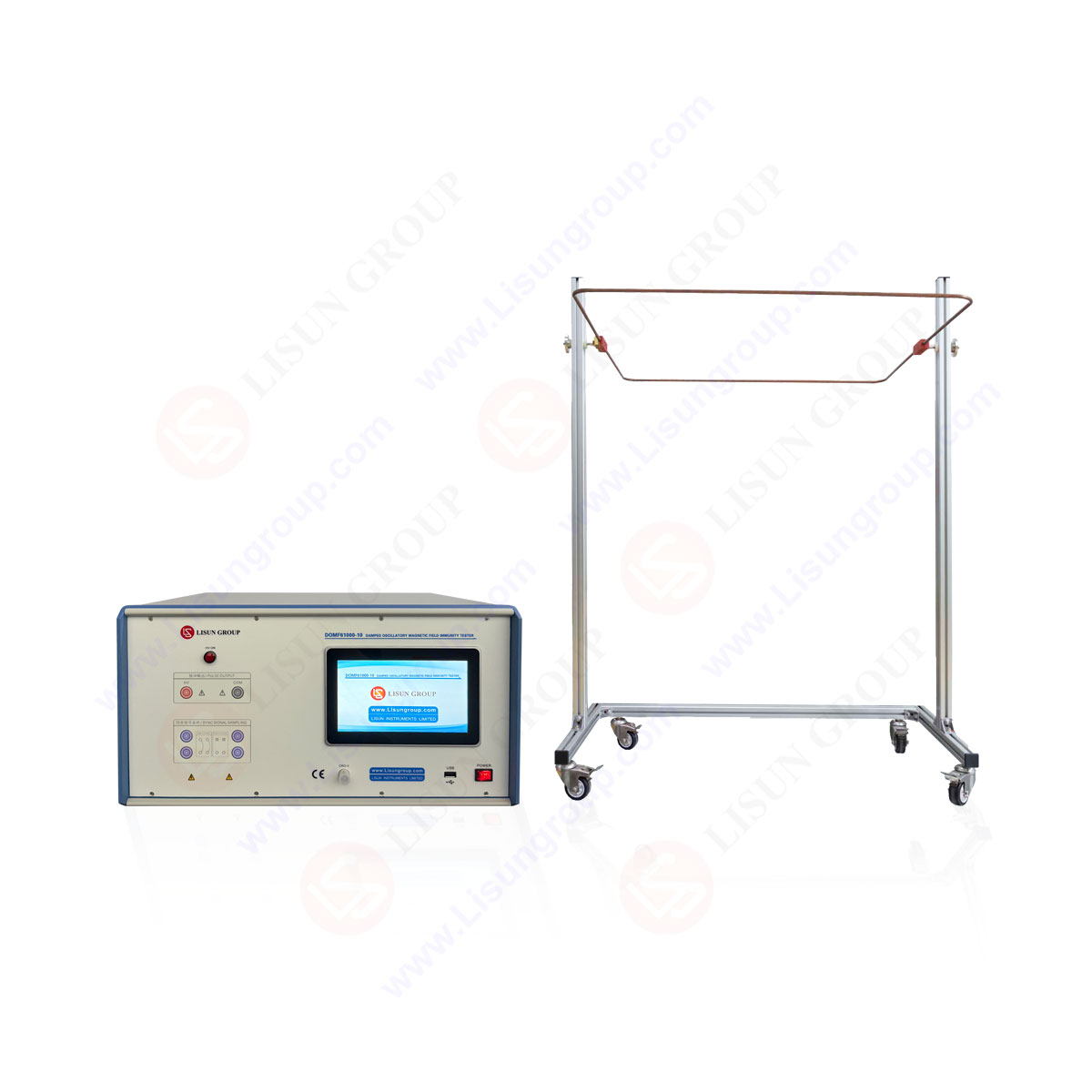

| 7.2.5.2.10 Damped oscillatory waves immunity test | DOMF61000-10 |
| 7.2.5.2.15 Radiated, radio-frequency, electromagnetic field immunity test | AC-3M |
| 7.4.5 Insulation resistance measurement on secondary terminals | WB2681A |
| 7.4.6 Corrosion test | YWX/Q-010 |
| Annex C Fire hazard | ZRS-3H |
