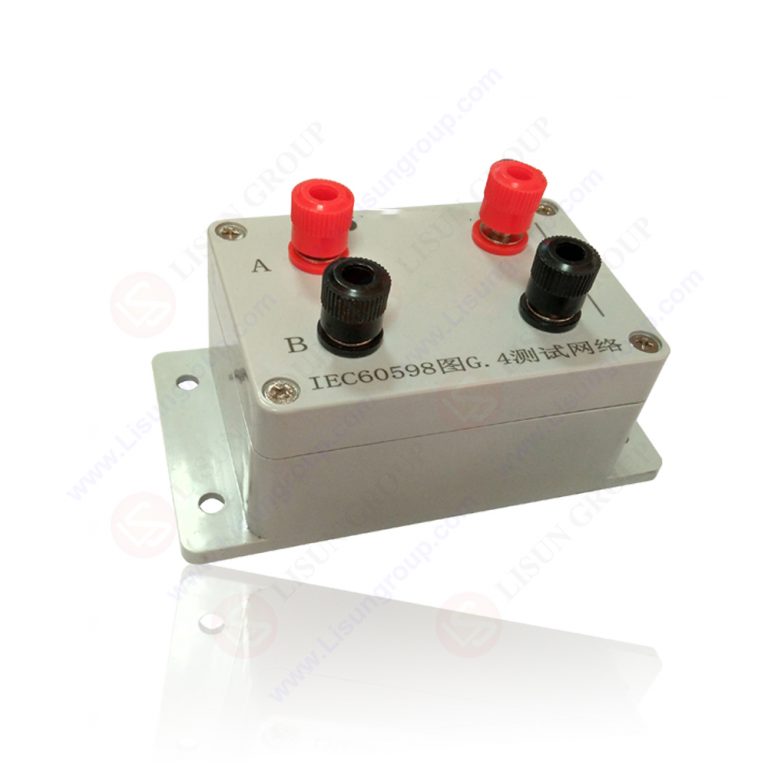

IEC60598 Figure G.4 Simulated Human Impedance Touch Current Measuring Network

MNTC-G4 IEC 60598-1:2024 Figure G.4 Simulated Human Impedance Contact Current Test Network is a standardized test device designed for high-frequency protective conductor current detection. Its core design concept is to simulate the impedance characteristics of the human body and accurately weight the high-frequency protective conductor current. The device adopts a compliant circuit structure design, accurately reproducing the test environment required by the standard, ensuring the standardization and accuracy of contact current measurement. In practical applications, it can be used in combination with supporting test components according to test requirements to provide stable and reliable test conditions for safety performance testing related to contact current of electrical equipment, helping to verify whether products meet relevant safety standards and providing strong support for product quality control and safety assessment.

Standards:

Note:  It should work together with LISUN MNTC-G2G3 and MNTC-G1.

Typical Applications:

• Factory testing of high-frequency protective conductor current parameters for lighting fixtures by manufacturers;
• Third-party testing by electrical product testing institutions to simulate human body impedance contact current;
• Verification and optimization testing of high-frequency current safety performance during lighting fixture R&D;
• Spot checks on contact current safety of lighting products by quality supervision departments;
• Supporting laboratory testing for compliance with lighting safety standards;
• Internal testing for product safety compliance by electrical equipment manufacturers.
