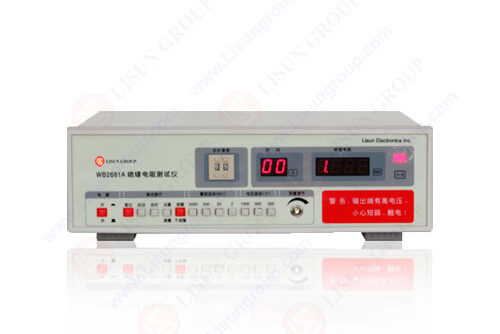

Insulation Resistance Tester: An In-depth Analysis of LISUN WB2681A and Its Application in Earth Resistance Ground Tester

Abstract
The insulation resistance tester plays a crucial role in ensuring the safety and efficiency of electrical equipment. The LISUN WB2681A, as an advanced insulation resistance tester, provides precise testing capabilities and is widely used in electrical safety testing. This paper will provide a detailed discussion of the LISUN WB2681A’s technical specifications, features, testing procedures, and its application in Earth Resistance Ground Tester, emphasizing its importance in maintaining electrical system safety.

1. Introduction
In the field of electrical engineering, ensuring the insulation performance of equipment is essential to prevent current leakage, equipment failures, and electrical fires. The insulation resistance tester, a key tool for detecting the insulation performance of equipment, effectively assesses the condition of insulation materials. The LISUN WB2681A, one of the leading insulation resistance testers on the market, is well-known for its high precision and multifunctionality.

Additionally, the Earth Resistance Ground Tester is used to measure the resistance of grounding systems to ensure the safety and reliability of electrical systems. Although insulation resistance testers and earth resistance testers have different functions, they are often used together in electrical safety testing to provide a comprehensive evaluation of system safety.

2. Technical Specifications of LISUN WB2681A Insulation Resistance Tester
The LISUN WB2681A is designed to provide accurate and reliable insulation resistance measurements for various electrical devices. The key technical specifications are as follows:

Parameter	Value
Measurement Range	0.01 MΩ to 20 GΩ
Test Voltage	500V, 1000V, 2500V, 5000V
Accuracy	±(2% of reading + 2 digits)
Display	Backlit LCD
Test Current	1mA
Test Mode	Continuous, timed, auto shut-off
Power Supply	Rechargeable lithium battery
Temperature Range	-10°C to 50°C
Humidity Range	0% to 90% RH
Dimensions (mm)	230 x 100 x 210
Weight	2.5 kg

These specifications ensure that the WB2681A is suitable for various environments and applications, meeting different testing needs.

3. Features of LISUN WB2681A Insulation Resistance Tester
The LISUN WB2681A is equipped with multiple features that enhance its performance and user experience:

• Multi-voltage Testing Capability: Supports 500V, 1000V, 2500V, and 5000V, making it suitable for various electrical devices with different voltage ratings.
• Wide Measurement Range: Capable of measuring 0.01 MΩ to 20 GΩ, making it applicable for both small electronic components and large electrical installations.
• High Precision: ±2% accuracy ensures reliable measurement results, which is crucial for critical applications.
• User-friendly Interface: Features a backlit LCD display, allowing clear readability under different lighting conditions.
• Timed Testing Function: Built-in timer enables users to set specific test durations. The device automatically shuts off after the test, saving battery power.
• Portability: With a compact design and a weight of only 2.5 kg, it is easy to carry and ideal for field testing.
• Rechargeable Battery: Equipped with a lithium battery for extended operation, eliminating the need for frequent battery replacements.

4. Steps for Conducting an Insulation Resistance Test Using LISUN WB2681A

To ensure accurate test results, follow these steps when using the LISUN WB2681A insulation resistance tester:

Step 1: Preparation

Ensure the tester’s battery is fully charged and the test leads are securely connected.
Select the appropriate test voltage based on the rated voltage and insulation level of the device under test.

Step 2: Connection

Connect the test leads to the conductor and insulation part of the device under test, ensuring a secure contact.

Step 3: Testing

Turn on the tester and select the desired test mode (continuous or timed).
Begin the test and observe the reading on the display until it stabilizes.

Step 4: Interpreting Results

High resistance values (typically in the MΩ or GΩ range) indicate good insulation performance.
Low resistance values may indicate insulation aging or damage, requiring further inspection or maintenance.

Step 5: Post-Test Processing

Turn off the tester and disconnect the test leads.
Record the test results for future reference and analysis.

5. Relationship Between Insulation Resistance Tester and Earth Resistance Ground Tester
Although insulation resistance testers and Earth Resistance Ground Testers serve different functions, they complement each other in electrical safety testing.

• The insulation resistance tester evaluates the internal insulation performance of electrical devices.
• The Earth Resistance Ground Tester assesses the effectiveness of grounding systems, ensuring that in the event of a fault, the current can safely flow into the ground, preventing electric shocks and equipment damage.

By using both devices together, engineers can comprehensively assess electrical system safety, reducing the risk of insulation failures and grounding faults.

6. Experimental Data Analysis
To better understand the performance of the LISUN WB2681A insulation resistance tester, we tested several different devices and recorded the insulation resistance values as shown below:

Tested Equipment	Rated Voltage (V)	Test Voltage (V)	Insulation Resistance (MΩ)	Evaluation Result
Low-voltage motor	380	1000	250	Good Insulation
High-voltage transformer	10,000	5000	1200	Good Insulation
Cable Line	220	500	85	Needs Monitoring
Aged motor	380	1000	8	Poor Insulation
Electronic control device	110	500	500	Excellent Insulation

The data shows that the insulation condition of a device directly affects its safety performance. For instance, insulation resistance below 10MΩ may indicate insulation aging, requiring regular maintenance or replacement.

7. Conclusion
The LISUN WB2681A insulation resistance tester is an ideal tool for electrical safety testing due to its high precision, multiple voltage options, ease of operation, and wide applicability. When used in combination with an Earth Resistance Ground Tester, it provides a comprehensive evaluation of electrical system safety, ensuring the stable operation of industrial, commercial, and residential power systems.

In real-world applications, regular insulation resistance testing can effectively prevent insulation failures, reduce equipment failure rates, and minimize safety risks. Therefore, electrical engineers and maintenance personnel should perform insulation resistance tests periodically to ensure the reliability and safety of power systems.
