Abstract
This article provides an in – depth exploration of the Bulk Current Injection Test System (BCI), a crucial tool in the field of electromagnetic compatibility (EMC) testing. It elaborates on the fundamental principles, test procedures, and key performance indicators of the BCI test system. With a focus on the LISUN LSBCI – 40 Bulk Current Injection (BCI) Test System, this paper details its features, technical specifications, and advantages. By analyzing relevant data and practical applications, the importance of the BCI test system in ensuring the electromagnetic compatibility of electronic products is emphasized, aiming to offer valuable references for professionals in the EMC testing and electronic product development industries.
1. Introduction
In the modern era of rapid development of electronic technology, the electromagnetic environment has become increasingly complex. As a result, electromagnetic compatibility (EMC) has emerged as a significant concern for electronic products. The ability of electronic devices to coexist without interfering with each other in the same electromagnetic environment is crucial for their reliable operation. Among the various EMC testing methods, the Bulk Current Injection Test System (BCI) has gained wide recognition and application.
The BCI test system is designed to simulate the electromagnetic interference (EMI) that electronic products may encounter in real – world scenarios, especially the interference coupled into cables. By injecting a controlled amount of current into the cable harness of the device under test (DUT), engineers can evaluate how the DUT responds to electromagnetic interference and identify potential EMC problems. This helps manufacturers improve the electromagnetic compatibility of their products, ensuring they meet the relevant EMC standards and regulations.
The LISUN LSBCI – 40 Bulk Current Injection (BCI) Test System is a representative product in the BCI test system market. It combines advanced technology and user – friendly design to provide accurate and efficient EMC testing solutions. In the following sections, we will conduct a detailed analysis of the BCI test system and explore the features and applications of the LISUN LSBCI – 40 in depth.
The operation of the BCI test system is based on the principle of electromagnetic coupling. When an alternating current is injected into the injection probe of the BCI system, a magnetic field is generated around the probe. This magnetic field then couples with the cable harness of the DUT, inducing a current in the cables. The induced current simulates the electromagnetic interference that the DUT may experience in its actual operating environment, such as interference from nearby electromagnetic sources or other electronic devices.
The injection probe is a key component of the BCI test system. It is designed to effectively transfer the injected current to the cable harness of the DUT. The probe usually has a toroidal shape, which can evenly distribute the magnetic field around the cable, ensuring a consistent and reliable injection of current. The design of the injection probe also takes into account factors such as impedance matching and frequency response to ensure accurate and efficient current injection across a wide range of frequencies.

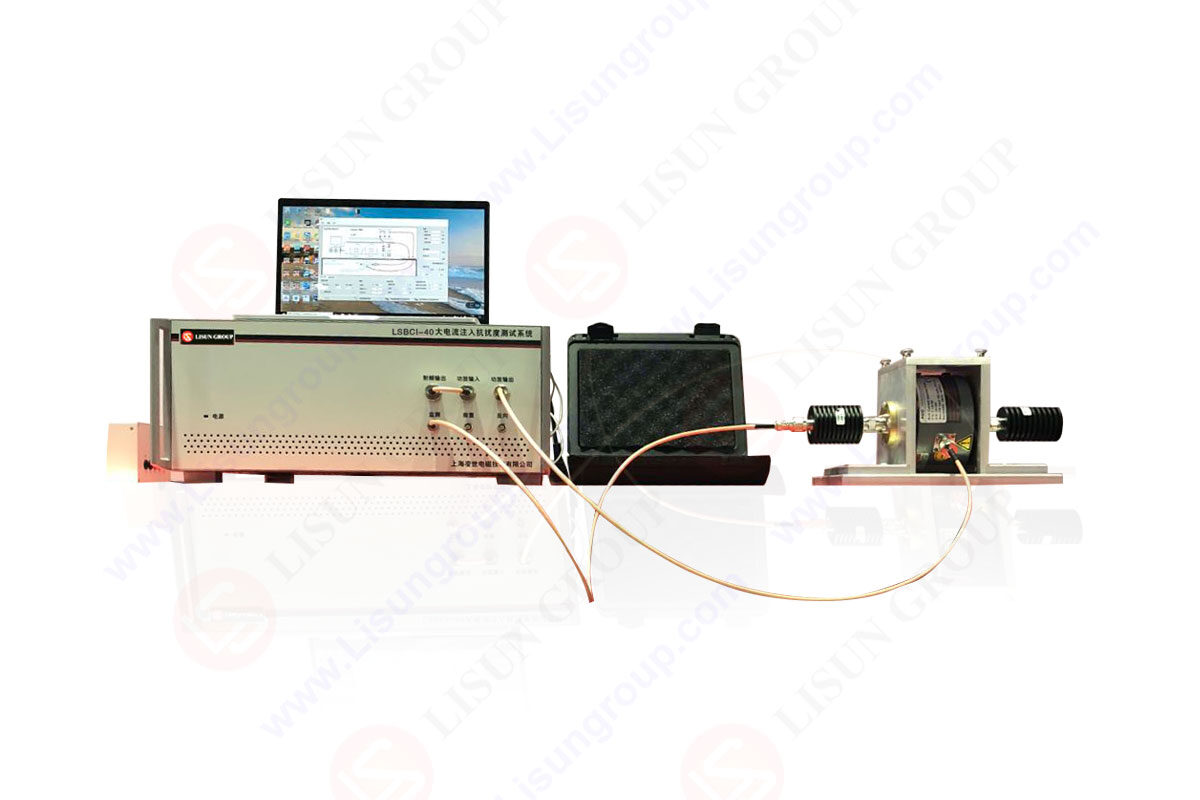

LSBCI-40_Bulk Current Injection Test System
Before the test, several preparations are necessary. First, the DUT should be properly installed and connected according to the test requirements. All relevant cables, such as power cables, signal cables, and communication cables, should be arranged in a way that simulates the actual usage scenario. The test environment should also be controlled to meet the EMC test standards, including temperature, humidity, and electromagnetic background noise.
Secondly, the LISUN LSBCI – 40 Bulk Current Injection (BCI) Test System needs to be calibrated. Calibration ensures the accuracy of the test results by verifying the performance of the test system, such as the output current, frequency range, and impedance. Calibration should be carried out regularly using standard calibration tools and procedures.
In the test setup stage, the injection probe of the LISUN LSBCI – 40 is placed around the cable harness of the DUT. The position and orientation of the probe are carefully determined to ensure maximum coupling efficiency. The test system is then configured to set the test parameters, including the injection current level, frequency range, and modulation mode (if applicable). For example, in a typical BCI test, the frequency range may be set from 100 kHz to 400 MHz, and the injection current can be adjusted according to the test requirements, usually ranging from a few milliamps to several amperes.
During the test execution, the LISUN LSBCI – 40 injects the specified current into the cable harness of the DUT at different frequencies within the set range. The DUT’s performance is continuously monitored during the test. Parameters such as electrical signals, functionality, and performance degradation are measured and recorded. Any abnormal behavior or performance degradation of the DUT is noted, which may indicate potential EMC problems.
After the test is completed, the collected data is analyzed. Engineers compare the measured data with the relevant EMC standards and the DUT’s performance specifications. Based on the analysis results, the electromagnetic compatibility of the DUT is evaluated. If the DUT meets the requirements specified in the standards, it is considered to have passed the BCI test; otherwise, measures need to be taken to improve its electromagnetic compatibility.
The frequency range of the BCI test system determines the scope of electromagnetic interference frequencies that can be simulated. A wider frequency range allows for more comprehensive testing of the DUT’s electromagnetic compatibility. The LISUN LSBCI – 40 has a frequency range of 100 kHz – 400 MHz, which covers a large part of the frequency band where electromagnetic interference commonly occurs in electronic products. This wide frequency range enables it to test various types of electronic devices, from low – frequency control systems to high – frequency communication devices.
The injection current level represents the strength of the electromagnetic interference simulated by the BCI test system. Different electronic products may require different injection current levels for accurate testing. The LISUN LSBCI – 40 can provide an injection current of up to 40 A, which is sufficient for most EMC testing requirements. This high – current injection capability allows for the simulation of severe electromagnetic interference scenarios, helping to identify potential vulnerabilities in the DUT more effectively.
The output impedance of the BCI test system affects the matching between the test system and the DUT’s cable harness. A proper output impedance ensures efficient current injection and accurate simulation of electromagnetic interference. The LISUN LSBCI – 40 is designed with an optimized output impedance to achieve good impedance matching across its frequency range, minimizing signal reflections and ensuring reliable test results.
In some EMC tests, signal modulation is required to simulate more complex electromagnetic interference scenarios. The LISUN LSBCI – 40 supports various signal modulation modes, such as amplitude modulation (AM) and frequency modulation (FM). This feature enhances the test system’s ability to simulate real – world electromagnetic interference, providing more comprehensive and accurate EMC testing results.
The LISUN LSBCI – 40 is equipped with advanced measurement technology, which ensures high – precision measurement of the injection current and other test parameters. Its high – accuracy sensors and signal processing circuits can accurately capture and analyze the test data, providing reliable and repeatable test results. This high – precision measurement is crucial for accurately evaluating the electromagnetic compatibility of electronic products.
With its wide frequency range and high – current injection capability, the LISUN LSBCI – 40 can be applied to a variety of electronic products, including automotive electronics, industrial control equipment, consumer electronics, and communication devices. Whether it is a small – scale consumer product or a large – scale industrial system, the LISUN LSBCI – 40 can provide effective EMC testing solutions.
The test system features a user – friendly interface, making it easy for operators to set up and execute tests. The intuitive control panel and software allow operators to quickly configure test parameters, start and stop tests, and view test results. Even for users with limited EMC testing experience, they can easily master the operation of the LISUN LSBCI – 40, improving the efficiency of the testing process.
LISUN is committed to providing high – quality products, and the LSBCI – 40 is no exception. It is built with high – quality components and undergoes strict quality control during the manufacturing process. This ensures the reliable and stable performance of the test system, reducing the risk of test failures due to system malfunctions and providing consistent and accurate test results over time.
In the automotive industry, the increasing use of electronic systems, such as engine control units (ECUs), infotainment systems, and advanced driver – assistance systems (ADAS), has made EMC testing of automotive electronics essential. The LISUN LSBCI – 40 can be used to test the electromagnetic compatibility of these automotive electronic components. For example, it can simulate the electromagnetic interference that automotive ECUs may encounter from the vehicle’s electrical system, such as interference from ignition systems and electric motors. By conducting BCI tests with the LISUN LSBCI – 40, automotive manufacturers can ensure that their electronic products can operate reliably in the complex electromagnetic environment of vehicles, improving vehicle safety and performance.
Industrial control systems often operate in harsh electromagnetic environments, with various electromagnetic sources such as motors, transformers, and power lines. The LISUN LSBCI – 40 helps test the electromagnetic compatibility of industrial control equipment, such as programmable logic controllers (PLCs), frequency converters, and industrial computers. Through BCI testing, potential EMC problems in these devices can be identified, and appropriate measures can be taken to improve their electromagnetic immunity, ensuring the stable and reliable operation of industrial control systems.
Consumer electronics, such as smartphones, tablets, and laptops, are also required to have good electromagnetic compatibility to ensure normal operation and avoid interference with other electronic devices. The LISUN LSBCI – 40 can be used to test the EMC performance of these consumer products. For instance, it can simulate the electromagnetic interference that smartphones may encounter from nearby Wi – Fi routers or Bluetooth devices. By conducting BCI tests, manufacturers can improve the quality of consumer electronics and enhance the user experience.
7. Conclusion
The Bulk Current Injection Test System (BCI) is an indispensable tool in the field of electromagnetic compatibility testing. Its ability to simulate electromagnetic interference coupled into cables provides valuable insights into the electromagnetic compatibility of electronic products. The LISUN LSBCI – 40 Bulk Current Injection (BCI) Test System, with its advanced features, high – performance indicators, and wide applicability, offers a reliable and efficient EMC testing solution for various industries.
Through a detailed understanding of the principles, test procedures, and key performance indicators of the BCI test system, as well as the in – depth exploration of the LISUN LSBCI – 40, we can see that the BCI test system plays a crucial role in ensuring the electromagnetic compatibility of electronic products. As the demand for electronic products with high electromagnetic compatibility continues to grow, the importance of the BCI test system will become even more prominent in the future. Manufacturers and researchers should pay more attention to EMC testing using BCI test systems like the LISUN LSBCI – 40 to develop more reliable and electromagnetic – compatible electronic products, promoting the healthy development of the electronics industry.
