Application of ESD Gun Test in EMC Compliance Testing for Multiple Fields

Electrostatic discharge is a common electromagnetic interference phenomenon during the operation of electrical and electronic equipment, which may easily cause system crash, functional abnormality and even hardware damage. Therefore, electrostatic discharge immunity test has become a core item of electromagnetic compatibility (EMC) inspection. The ESD Gun Test is a special instrument for conducting such tests. It can accurately simulate electrostatic impact in various scenarios and fully meet the EMC compliance testing requirements of consumer electronics, automotive electronics, industrial control equipment, medical devices and other products. Taking LISUN ESD61000-2 ESD Gun Test as the research object, this paper illustrates the principles and applicable standards of electrostatic discharge tests, as well as technical features and supporting configurations of the equipment. With reference to the parameter table, it analyzes the performance advantages and sorts out application scenarios in different industries. This paper demonstrates the important value of ESD Gun Test in product research and development, quality control and market access certification, and provides practical references for enterprises to carry out ESD immunity tests.

Introduction

In daily production and application environments, static electricity is generated by human activities, material friction and equipment operation. Instant high-voltage static electricity interferes with electrical and electronic equipment through contact or air coupling. For electronic products with high integration and dense precision components, electrostatic discharge may lead to screen distortion, communication interruption and program restart. In severe cases, it will break down chips and burn out circuits, resulting in potential safety hazards and economic losses. A series of domestic and international standards including GB/T 17626.2, IEC/EN 61000-4-2, GB/T 19951 and ISO 10605 have been formulated to standardize the electrostatic protection capability of products, requiring all kinds of electrical and electronic products to pass electrostatic discharge immunity tests.

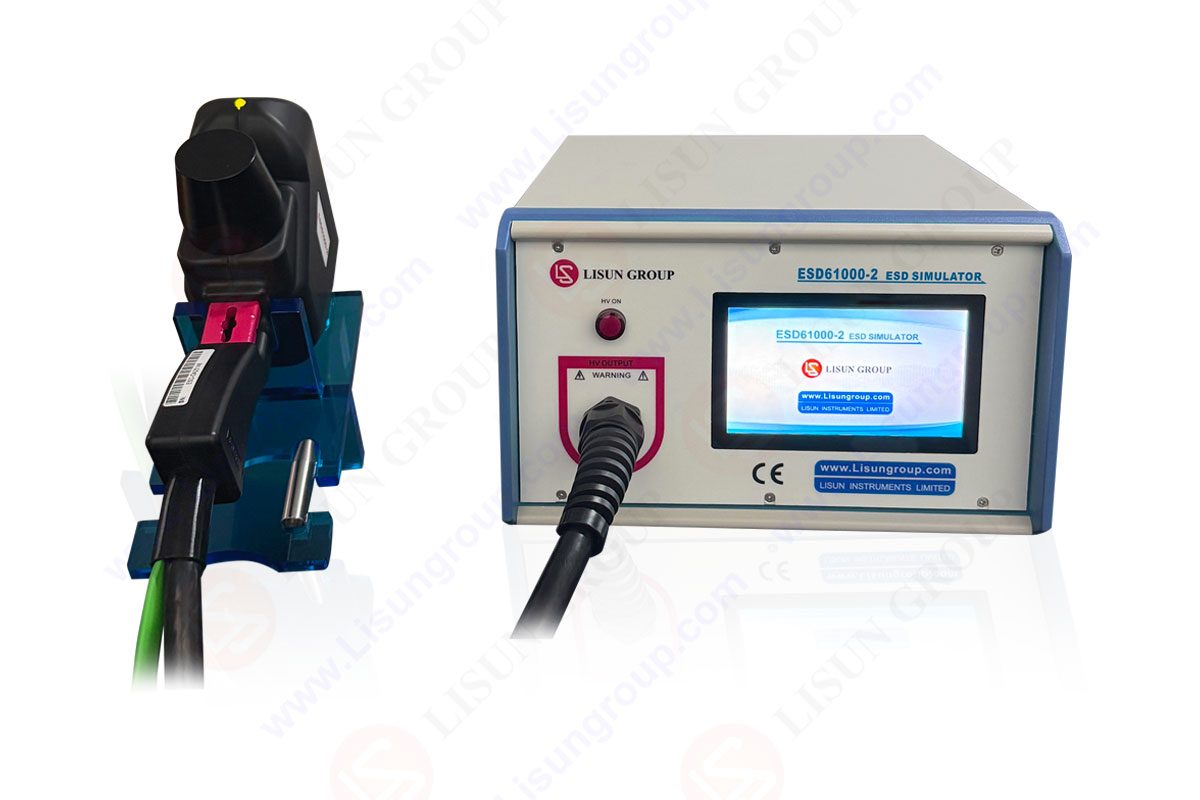

As the core testing device for simulating electrostatic impact, the ESD Gun Test can output stable and repeatable high-voltage electrostatic signals, which is essential for EMC compliance testing. LISUN ESD61000-2 ESD Gun Test features complete functions and wide parameter range. It supports contact discharge and air discharge, and complies with standard requirements of consumer electronics, automotive electronics, industrial control equipment, medical devices and many other industries. With reliable testing performance and user-friendly operation, it is widely used in third-party testing laboratories, enterprise R&D centers and production line quality inspection departments, acting as key equipment to guarantee the electromagnetic compatibility and operational reliability of electronic products.

Principles and Applicable Standards of Electrostatic Discharge Test

Basic Test Principles
The ESD Gun Test converts low voltage into high-voltage static electricity via internal circuits, and conducts discharge tests on equipment under test in accordance with standard-specified waveform, voltage and polarity. There are two main test modes: contact discharge and air discharge. Contact discharge adopts a pointed electrode to directly act on conductive surfaces of equipment, simulating electrostatic impact caused by human contact with metal shells, buttons and interfaces. Air discharge uses a round electrode approaching insulated surfaces, and completes discharge through air breakdown, simulating electrostatic interference when people get close to plastic shells, glass panels and other components. Testers judge whether the product has qualified anti-static capability by observing the operating status of samples under electrostatic impact of different voltage levels, and the test data shall be comparable and repeatable.

Applicable Industry Standards
LISUN ESD61000-2 series ESD Gun Test is compatible with mainstream EMC standards for multiple fields. The basic model ESD61000-2 strictly complies with GB/T 17626.2 (IEC/EN 61000-4-2), the general electromagnetic compatibility standard applicable to most civil and industrial electrical and electronic products. The upgraded models ESD61000-2A and ESD61000-2C additionally conform to GB/T 19951 (ISO 10605), the dedicated standard for automotive electronics, to satisfy strict electrostatic test requirements for on-board products. Thanks to multi-standard compatibility, the series of ESD Gun Test can cover EMC compliance tests of various industries and different test grades with excellent universality.

Technical Parameters and Configurations of LISUN ESD61000-2 ESD Gun Test

Parameter Comparison of Main Models
LISUN ESD61000-2 series consists of multiple models with differences in output voltage, discharge modules and electrode configurations for different test demands. The table below shows core parameters of three mainstream models.

As shown in the table, the basic model ESD61000-2 provides maximum output voltage of 20kV, which fully meets the requirements of Grade 4 tests specified by general EMC standards (15kV for air discharge). It is competent for routine tests of consumer electronics, ordinary industrial equipment and medical devices. High-voltage models reach 30kV maximum output voltage, equipped with various RC modules and dedicated electrodes to handle high-voltage electrostatic tests for automotive electronics. The rise time of discharge current of all models is stably maintained at 0.6~1ns, complying with strict waveform requirements of relevant standards and ensuring accurate and valid test results.

Functions and Supporting Accessories
This ESD Gun Test is equipped with a bilingual LCD display with simple operation interface. It supports single test, counting test, 20PPS, IEC grade and custom programming. The discharge times can be set from 1 to 9999, and the discharge interval is continuously adjustable within 0.05s to 99.99s. Manual and automatic trigger modes are optional to adapt to R&D debugging and batch inspection.

To meet standardized test requirements, the equipment can be matched with a variety of dedicated accessories. The ESD-DESK test table provides standard grounding, coupling plates and insulating mats to build a qualified test environment. The ESD-CALA calibration kit is used for regular equipment calibration to ensure long-term testing accuracy. The ESD-FCP field coupling plate is specially designed for electrostatic discharge tests of automotive electronic products. Complete optional accessories further expand the application scope of the ESD Gun Test.

Application of ESD Gun Test in EMC Compliance Testing of Various Industries

Consumer Electronics
Smartphones, tablets, household appliances, audio and video devices and other consumer electronics are frequently touched by human hands and vulnerable to electrostatic interference. Such products are required to complete contact discharge and air discharge tests in accordance with GB/T 17626.2. The common test levels are ±8kV for contact discharge and ±15kV for air discharge. With 20kV output voltage, LISUN ESD61000-2 ESD Gun Test can complete full-grade tests efficiently. It is widely used for CCC, CE and other certification tests before product launch, as well as defect troubleshooting in the R&D stage. It helps enterprises optimize circuit protection and shell materials to improve product stability in daily use.

Automotive Electronics
On-board central control units, sensors, ECU, lamp controllers and other automotive electronic products operate in complex environments. Static electricity generated by internal friction and external wind and sand puts forward stricter test standards. With maximum output voltage of 30kV and dedicated large round electrode and coupling plate, ESD61000-2A/2C ESD Gun Test complies with GB/T 19951 (ISO 10605) for automotive electronics. It simulates electrostatic impact during vehicle running and human operation, and serves as core testing equipment for automobile manufacturers and on-board component suppliers.

Industrial Control
PLCs, inverters, industrial touch screens, sensors and other industrial control devices work in factories and workshops filled with dust and friction. Electrostatic interference may cause malfunction of control systems and lead to production accidents. Industrial products generally need to pass Grade 4, the highest level of EMC tests. LISUN ESD61000-2 ESD Gun Test can simulate various electrostatic conditions in industrial sites and conduct comprehensive discharge tests on equipment panels, communication ports and power interfaces, so as to verify the anti-interference capability of industrial equipment and guarantee continuous and stable operation of production lines.

Medical Devices
Patient monitors, portable diagnostic equipment, medical sensors and other medical devices are closely related to life safety, so high stability is required. Any functional abnormality or data error caused by static electricity is not allowed. Tests in this field follow GB/T 17626.2. Featuring stable output waveform and excellent repeatability, LISUN ESD61000-2 ESD Gun Test can deliver accurate electrostatic immunity tests for medical devices and ensure safe operation in complex electromagnetic environments of hospitals.

Conclusion

Electrostatic discharge immunity is a key evaluation indicator for EMC compliance of electrical and electronic products, and the ESD Gun Test is indispensable for related tests. LISUN ESD61000-2 series ESD Gun Test boasts wide parameter range, comprehensive functions and strong standard compatibility, which can satisfy EMC test demands of consumer electronics, automotive electronics, industrial control equipment, medical devices and many other industries.

The ESD Gun Test runs through the whole lifecycle management of electromagnetic compatibility for electronic products, including defect rectification in R&D, sampling inspection in production and authoritative certification for market access. Its stable performance, flexible settings and rich supporting accessories greatly improve the efficiency and accuracy of ESD tests. As global EMC regulations become increasingly stringent, ESD Gun Test represented by ESD61000-2 will continuously help enterprises improve product anti-static capability and compliance level, and enhance market competitiveness. It will remain core infrastructure in the EMC test system of the electrical and electronic industry.
