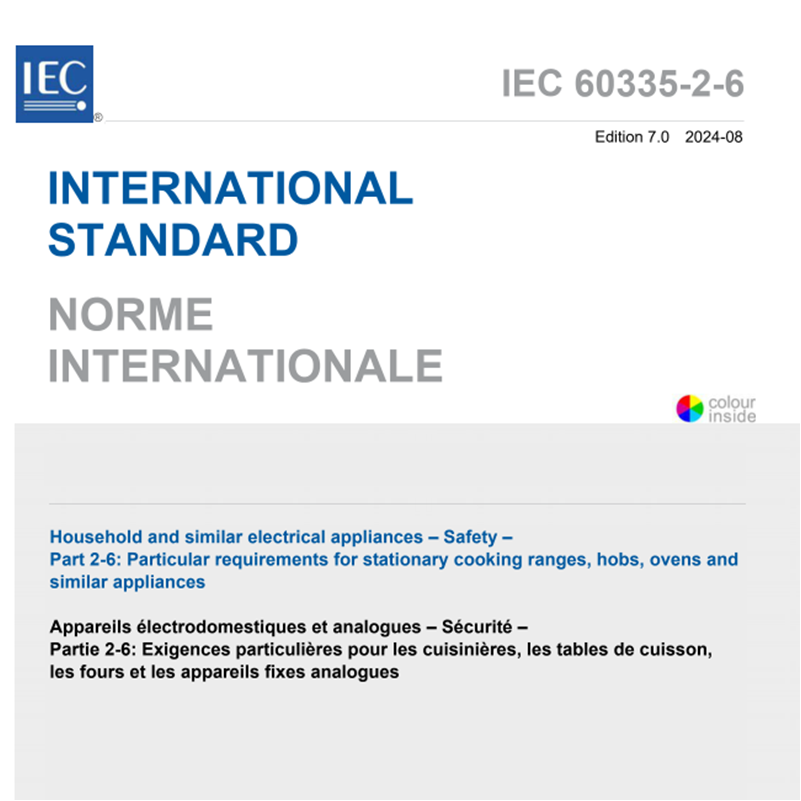

IEC 60335-2-6:2024 Household and similar electrical appliances – Safety – Part 2-6: Particular requirements for stationary cooking ranges, hobs, ovens and similar appliances

IEC 60335-2-6:2024 is a safety standard focusing on stationary electric cooking appliances for household and similar use, including cooking ranges, hobs (e.g., induction cooktops), ovens (pyrolytic, steam types), grills, and induction wok elements. It applies to single-phase appliances (≤250V, phase – neutral) and other appliances (≤480V, including DC/battery – powered ones), with specific rules for ship – board ovens. It excludes commercial catering appliances, those for special atmospheres (corrosive/explosive), and portable cooking devices (e.g., toasters, covered by IEC 60335-2-9).

The standard addresses common hazards like electric shock, burns, fire, and mechanical risks, with rigorous tests and construction rules. Key 2024 updates include clarified oven rack design/test rules, added steam oven and ship – board oven (anti – corrosion, stability) requirements, optional accessible surface temperature limits, stabilizer/labeling mandates, and spill tests for built – in undercounter ovens. It enforces strict electrical insulation, thermal control (e.g., oil cooking ≤180°C per Clause 10.2), and child – protection measures (e.g., probe – based tests for accessible parts) to ensure safe use in domestic settings.

LISUN supplies the fully test solutions for the following IEC 60335-2-6:2024, please see the below excel table:

IEC 60335-2-6:2024 Clause and Subject	LISUN MODEL
8 Protection against access to live parts	SMT-02T10
	SMT-1213C
	SMT-1241
11 Heating–test corner	TMPWS-010
13.2&16.2 Leakage current and electric strength at operating temperature	WB2675D
14 Transient overvoltagesunused lamps	SUG335

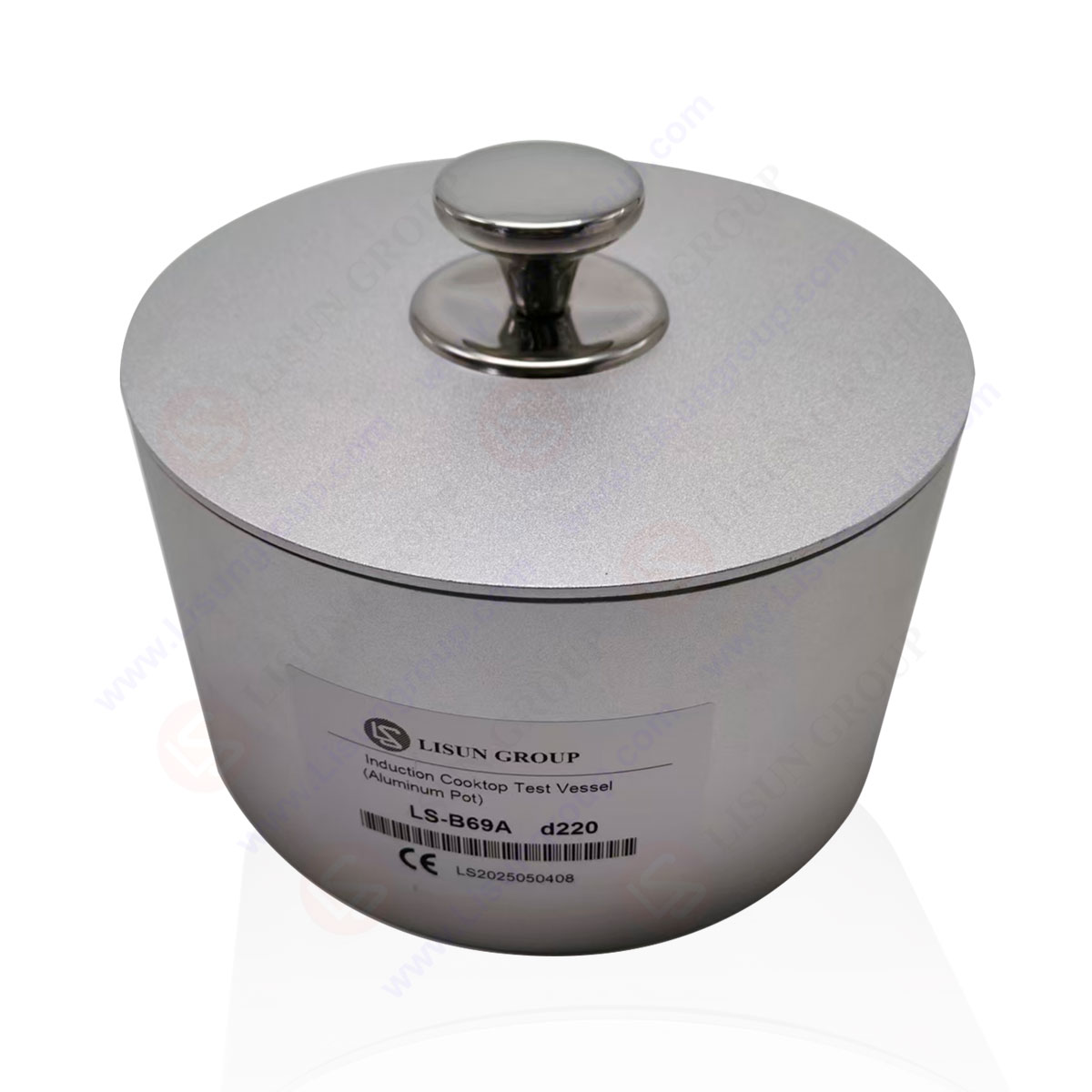

15.2 Vessel for testing hob elements	LS-B69A
19 Abnormal operation	ESD61000-2
	EFT61000-4
	SG61000-5
	RFCI61000-6-85W & AB-100W
20 Stability	WDT-2
21 Mechanical strength
test probe 41 of IEC 61032	SMT-1241
test probe B of IEC 61032	SMT-PBC
Impact test	IK01-07
22 Construction
Unjointed Test Finger Test Probe 11	SMT-1211C
Resistant to corrosion	YWX/Q-010
22.135 half-sine pulse tests specified in IEC 6o068-2-27	LS-VS50
22.136 vibration tests specified in IEC 60068-2-6	LVD-100KG
30 Resistance to heat and fire	ZBP-T
	ZRS-3H
	ZY-3
31 Resistance to rusting	YWX/Q-010
