Technical Characteristics and Standard Compliance Analysis of LISUN IPX5 and IPX6 Waterproof Testing Machine

1. Introduction

In the R&D and production of electronic appliances, lighting equipment, automotive electronics and other products, the Ingress Protection (IP) code is an important indicator for evaluating environmental adaptability. Among them, IPX5 and IPX6, as protection grades against water jets and strong water jets, directly determine the reliability of products used in harsh water environments such as heavy rain and high‑pressure washing. As the core national standard for enclosure protection testing in China, GB/T 4208‑2017 specifies strict and clear requirements for test equipment, test conditions and operating procedures of IPX5 and IPX6.

As a mainstream comprehensive waterproof testing device in the industry, the LISUN JL‑X waterproof test system is equipped with a dedicated JL‑56 IPX5 and IPX6 Waterproof Testing Machine for IPX5 and IPX6 grade tests. Relying on precise mechanical structure and intelligent parameter control, it fully conforms to the requirements of national standards. Based on standard requirements combined with actual equipment parameters and functional design, this paper conducts a comprehensive analysis of the standard compliance of this IPX5 and IPX6 Waterproof Testing Machine, providing a reference for equipment selection by relevant testing institutions and manufacturers.

2. Core Requirements of GB/T 4208‑2017 for IPX5 and IPX6 Tests

GB/T 4208‑2017 clauses 14.2.5~14.2.6 and Figure 6 specify three core technical requirements for IPX5 (protection against water jets) and IPX6 (protection against strong water jets): First, the nozzle specifications must match the test grade. IPX5 tests require a φ6.3 mm nozzle, and IPX6 tests require a φ12.5 mm nozzle. Second, the water flow rate must be controlled within the specified error range: 12.5±0.625 L/min for IPX5 and 100±5 L/min for IPX6. Third, the water pressure must be stably adjusted according to test needs to ensure that the water jet intensity meets test requirements. Meanwhile, during testing, water jets shall be directed at the specimen from any direction, and the test duration shall be 1 minute per square meter of enclosure surface area, with a minimum of 5 minutes.

In addition, the standard requires that the test equipment must have a stable water supply system and specimen fixing device to ensure continuity and uniformity of flow and pressure during the test, avoiding distorted test results caused by equipment errors. This places high demands on the hardware configuration and control accuracy of the IPX5 and IPX6 Waterproof Testing Machine.

3. Hardware Configuration and Technical Parameters of LISUN IPX5 and IPX6 Waterproof Testing Machine

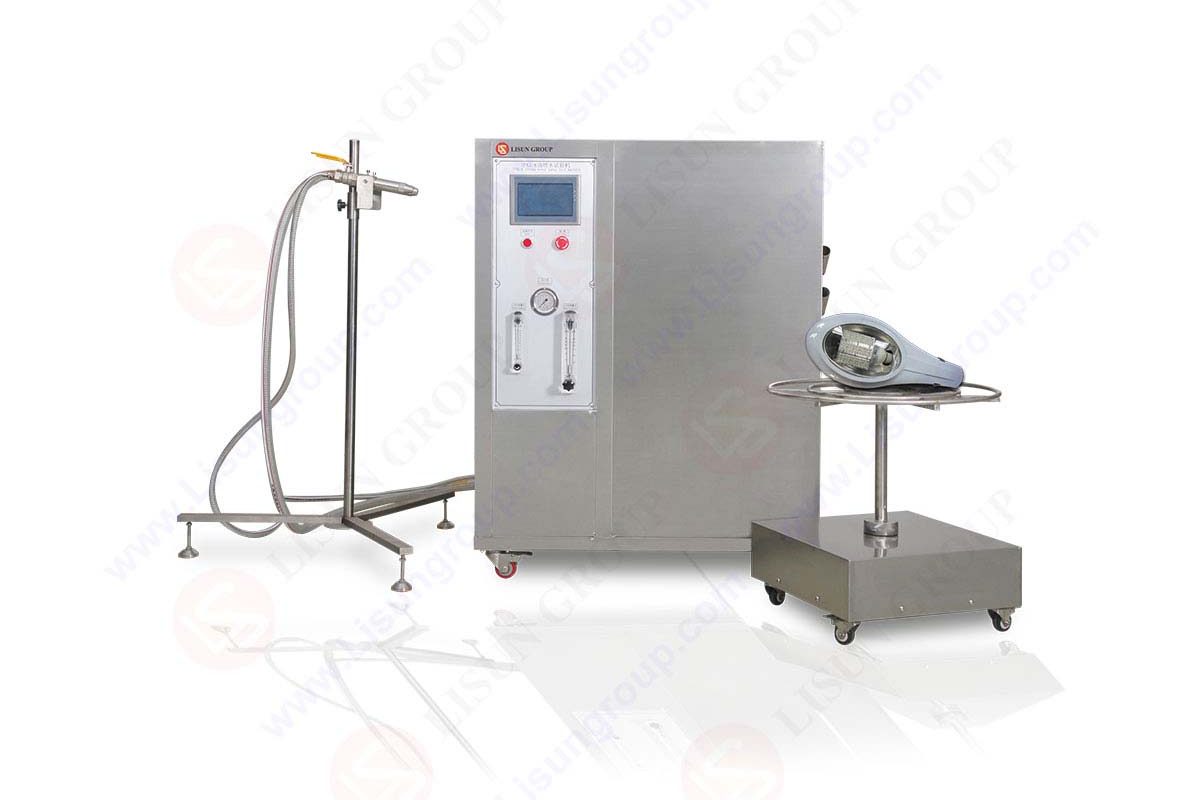

The JL‑56 IPX5 and IPX6 Waterproof Testing Machine in the LISUN JL‑X waterproof test system is a special device developed in accordance with the IPX5 and IPX6 test requirements of GB/T 4208‑2017. Its hardware configuration and technical parameters are designed around national standard requirements. The core configuration and parameters are as follows:

1. Water supply system: The standard water tank dimensions are 780*580*1100 mm (L*W*H), made of stainless steel. It provides large‑capacity water storage and stable water supply to support long‑duration continuous testing. The tank is equipped with water level monitoring and automatic water replenishment to prevent parameter fluctuations caused by insufficient water volume.

2. Nozzle configuration: The system is equipped with dedicated nozzles for IPX5 and IPX6 tests. The IPX5 test uses a high‑precision φ6.3 mm nozzle, and the IPX6 test uses a high‑flow φ12.5 mm nozzle. All nozzles are made of corrosion‑resistant and high‑hardness materials to ensure no aperture deformation after long‑term use and maintain flow accuracy.

3. Flow and water pressure control: The system is equipped with high‑precision flow sensors and water pressure regulating valves. It accurately controls the water flow at 12.5±0.625 L/min for IPX5 and 100±5 L/min for IPX6, with error ranges fully meeting national standards. The water pressure can be stably adjusted to meet different grade test requirements.

4. Specimen auxiliary device: The system is equipped with a rotatable specimen table with adjustable speed, ensuring that water jets cover the specimen enclosure from all directions without dead angles, meeting the standard requirements for jet direction.

Table 1 shows the comparison between the core technical parameters of this IPX5 and IPX6 Waterproof Testing Machine and the requirements of GB/T 4208‑2017, directly reflecting its standard compliance.

Table 1 Comparison Between LISUN IPX5 and IPX6 Waterproof Testing Machine Parameters and GB/T 4208‑2017 Requirements

Test Item	GB/T 4208‑2017 Requirement	LISUN IPX5 and IPX6 Waterproof Testing Machine Parameter	Compliance
IPX5 nozzle diameter	φ6.3 mm	φ6.3 mm	Fully compliant
IPX6 nozzle diameter	φ12.5 mm	φ12.5 mm	Fully compliant
IPX5 water flow rate	12.5±0.625 L/min	12.5±0.625 L/min	Fully compliant
IPX6 water flow rate	100±5 L/min	100±5 L/min	Fully compliant
Water pressure regulation	Stable adjustable for different grades	Stable and adjustable to meet test requirements	Fully compliant
Test duration	1 min/m², minimum 5 min	Customizable, meets standard requirements	Fully compliant
Water supply tank	Stable water supply required	780*580*1100 mm, large capacity stable supply	Satisfies requirements

4. Verification of Standard Compliance of LISUN IPX5 and IPX6 Waterproof Testing Machine

4.1 Verification of Parameter Accuracy

The LISUN IPX5 and IPX6 Waterproof Testing Machine ensures parameter accuracy through a triple control mechanism: First, imported flow sensors collect real‑time water flow data with a feedback frequency of 0.1 second, ensuring timely correction of flow deviations. Second, the water pressure regulating valve adopts stepless adjustment and automatically matches pressure to flow demand, avoiding flow deviation caused by pressure fluctuation. Third, the PLC control system centrally controls nozzles, pumps, flow valves and other core components to achieve intelligent and stable parameter control. Calibrated by authoritative institutions, flow and pressure errors in IPX5 and IPX6 tests are within the allowable range of the national standard, fully meeting GB/T 4208‑2017.

4.2 Verification of Test Procedure Compliance

The test procedure strictly follows the operating specifications in GB/T 4208‑2017 clauses 14.2.5~14.2.6. Before testing, the system automatically calculates the duration based on the enclosure surface area to meet the 1‑minute‑per‑square‑meter rule with a 5‑minute minimum. During testing, the specimen table rotates uniformly, and the nozzle sprays from multiple directions to simulate real‑world water impact. After testing, key data including flow, pressure and duration are automatically recorded to generate traceable reports, meeting traceability requirements for quality control.

4.3 Verification of Application Scenario Adaptability

As a core part of the JL‑X waterproof test system, the LISUN IPX5 and IPX6 Waterproof Testing Machine can cooperate with drip test chambers, oscillating tube rain test systems, immersion tanks and other equipment to achieve full waterproof testing from IPX1 to IPX8. It is widely used in enclosure protection testing of LED luminaires, household appliances, rotating electrical machines, automotive electronics and other products. Adopted by authoritative testing institutions and core quality control equipment of manufacturers, its test results are widely recognized in the industry, further verifying its compliance and reliability in practical applications.

5. Industrial Application Value of the IPX5 and IPX6 Waterproof Testing Machine

With the trend of outdoor and intelligent development of electronic appliances, IPX5 and IPX6 have become standard requirements for many products. The technical level of the IPX5 and IPX6 Waterproof Testing Machine directly affects the accuracy and efficiency of waterproof performance testing.

The development and application of the LISUN IPX5 and IPX6 Waterproof Testing Machine have filled the gap in high‑end domestic waterproof test equipment, accurately meeting national standards and providing reliable test data for product R&D. It helps enterprises identify sealing defects in the design stage and improve product waterproof performance. Meanwhile, its intelligent and automated design greatly improves test efficiency, reduces manual errors and lowers testing costs. As part of the integrated JL‑X system, it supports full‑range waterproof testing and meets industry demand for comprehensive detection equipment.

In addition, LISUN provides complete after‑sales support for the IPX5 and IPX6 Waterproof Testing Machine, with more than 10 years of industry experience and a full set of troubleshooting solutions, ensuring long‑term stability and reliability.

6. Conclusion and Prospect

Through comprehensive analysis of hardware configuration, technical parameters and standard compliance of the LISUN JL‑X series IPX5 and IPX6 Waterproof Testing Machine, this paper concludes that the core designs including nozzle specifications, flow control, water pressure regulation and test procedures fully comply with all requirements of GB/T 4208‑2017 clauses 14.2.5~14.2.6 and Figure 6 for IPX5 and IPX6 tests. With high parameter accuracy, standardized procedures and wide applicability, it is an ideal device for waterproof grade testing of electronic and electrical products.

With the continuous improvement of waterproof test standards and higher industry protection requirements, future IPX5 and IPX6 Waterproof Testing Machines will develop toward higher precision, intelligence and integration. As a leading manufacturer of test equipment, LISUN will further optimize control algorithms, improve automation and intelligence, and combine IoT technology to realize cloud data storage and remote monitoring, providing more efficient and convenient solutions.

In the future, with the popularization of IPX5 and IPX6 in more fields, the IPX5 and IPX6 Waterproof Testing Machine will play a more important role in electronics, automotive, aerospace and other industries, becoming key equipment for quality control and market access, and promoting the overall improvement of waterproof technology in the industry.
