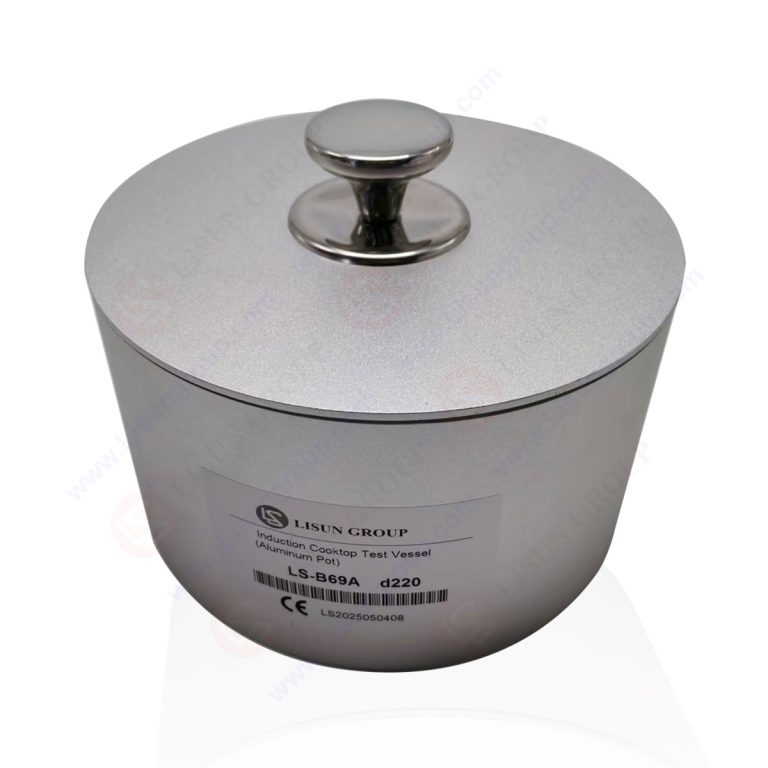

IEC 60335-2-9 IEC 60335-2-6 Induction Cooktop Test Vessel
IEC 60335-2-9 IEC 60335-2-6 Induction Cooktop Test Vessel

IEC 60335-2-9 IEC 60335-2-6 Induction Cooktop Test Vessel

Product No: LS-B69A

Leave a Message

=
  • Description

  • The Induction Cooktop Test Vessel fully complies with IEC 60335-2-9:2019 Clause 3.1.9.105 Figure 103, Figure 104 (GB 4706.14-2008 Clause 3.1.9.108 and Figures 103, 104), as well as IEC 60335-2-6 Clause 3.1.9.101 Figure 101, Figure 102 (GB 4706.22-2008 Clause 3.1.9.101 and Figures 101, 102). Its bottom diameter shall be approximately equal to the diameter of the cooking area of the induction cooktop, and the liquid volume shall be in accordance with the provisions of the corresponding standard tables. During use, the specified amount of cooking oil shall be poured into the container, which is then placed at the center of the cooking area. The induction cooktop shall be set to the maximum power level, so that the oil temperature (measured 1 cm from the center of the container bottom) rises to and maintains at 180℃±4℃, so as to meet the test requirements for the induction cooktop under this working condition.

    Specifications:

    LISUN Model LS-B69A（aluminum pot） LS-B69B（iron pot）
    Material 6061 aluminum Low-carbon steel with a maximum carbon content of 0.08%
    Dimension(mm) abc=Ф110×140×8 dh（high）δ(Bottom thickness)=Ф110×140×(2±0.5)
    abc=Ф145×140×8 dAH=Ф145×140×(2±0.5)
    abc=Ф180×140×9 dAH=Ф180×140×(3±0.5)
    abc=Ф220×120×10 dAH=Ф220×120×(3±0.5)
    abc=Ф300×100×10 dAH=Ф300×100×(5±0.5)
    Side Wall Thickness(mm) 2 2±0.5
    Container bottom maximum concavity(mm) 0.05, No protrusion allowed C≦0.006d, No protrusion allowed
    Shape & Configuration Flat bottom with lid, cylindrical shape Cylindrical shape without handle and protrusion, no lid
    Liquid Capacity for Test According to Table 101 (as below) According to Table 101 (as below)
    Test Function Water Boiling Test Cooking Oil Heating Test
    Test Object Test container used to simulate water-holding vessels Test container used to simulate cooking oil-holding vessels
    According to Standard IEC 60335-2-9:2019 Figure 103 IEC 60335-2-9:2019 Figure 104
    Test Purpose Test container used to simulate the vessels placed on induction cooktops and other cooktops under normal operating conditions

    IEC 60335-2-9:2019 Table 101

    IEC 60335-2-9:2019 Table 101

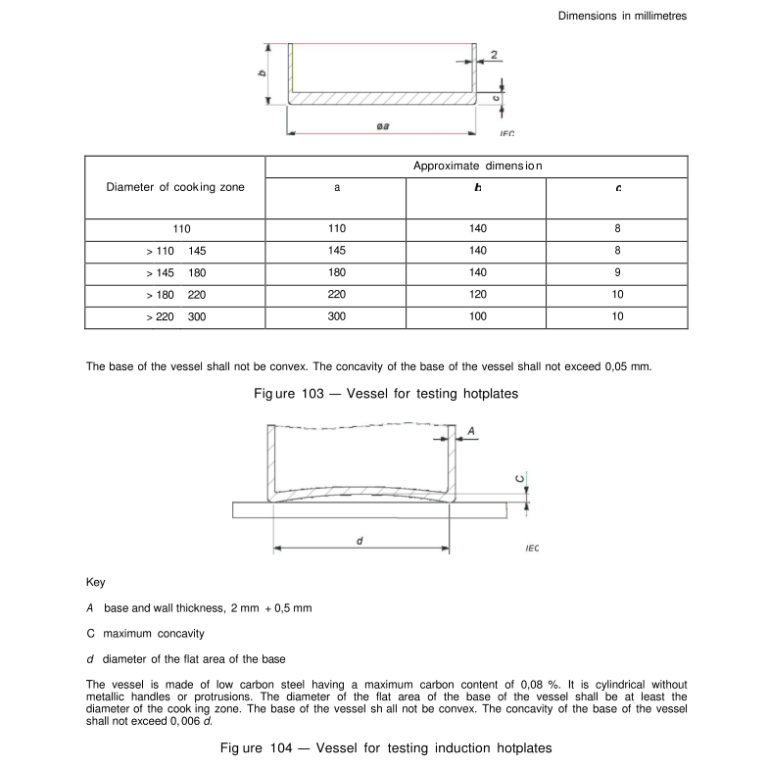

    IEC 60335-2-9:2019 Figure 103&104

    IEC 60335-2-9:2019 Figure 103&104
