How to Do Ball Pressure Test? – Interpreting the Standardized Assessment Method

Abstract
How to do ball pressure test? The Ball Pressure Test is a core safety assessment procedure used to evaluate the thermal deformation resistance of non-metallic components (e.g., insulating materials, enclosures, support parts) in electrical and electronic equipment. It is widely applied in quality control and safety certification for products such as plugs and sockets, luminaires, switches, and couplers. This article systematically explains how to do ball pressure test, providing a detailed interpretation of its testing principles, the requirements of core standards (e.g., GB/T 2099.1, IEC 60598-1), critical control points in the procedure, and the criteria for result evaluation. The article further analyzes the technical characteristics of the specialized equipment essential for performing this test—the Ball Pressure Test Device—and uses the LISUN ZBP-T device as an example to illustrate how high-precision, standardized apparatus ensures the accuracy and repeatability of test results, offering clear operational guidance and theoretical basis for product R&D, type testing, and routine quality inspection.

Introduction
This question directly relates to the long-term safety and reliability of key plastic components inside household appliances, lighting products, and electrical accessories. Under operating or fault conditions, these components may be subjected to elevated temperatures. If the material softens and deforms, it could lead to reduced clearance, displacement of live parts, and potentially cause short circuits, electric shock, or even fire risk. The ball pressure test is the standardized method simulating such thermal stress: a steel ball of specified diameter is pressed onto the sample surface with a defined force at a specific temperature. The material’s resistance to heat deformation is quantified by measuring the indentation diameter after cooling. Understanding and correctly performing the ball pressure test is an essential step in ensuring product compliance with mandatory safety standards such as GB and IEC. This article provides an in-depth analysis of the complete test procedure and introduces the precise apparatus required to execute it.

1. Principle and Standard Requirements of the Ball Pressure Test
The ball pressure test is a physical stress test based on the creep characteristics of materials at high temperatures. A standardized steel ball (diameter 5mm, radius R2.5mm) is pressed vertically onto the surface of a specimen placed in a high-temperature environment, under a total test force (20N ±0.2N). After being maintained at the specified temperature (determined by the product standard, common values are 125°C, 75°C, etc.) for the specified duration (typically 60 minutes), the material may undergo plastic deformation. After removing the load and cooling, the diameter of the residual indentation is measured.

Core Pass/Fail Criterion: In most associated standards (e.g., GB/T 2099.1, IEC 60598-1), the pass criterion for the ball pressure test is that the indentation diameter must not exceed 2.0 millimeters. This limit ensures the material possesses sufficient mechanical strength under normal or abnormal heating conditions to maintain its safety-critical shape and position.

Main Applicable Standards: This test is cited in numerous electrical safety standards, primarily including the general requirements for household plugs and sockets (GB/T 2099.1 / IEC 60884-1), luminaires (GB 7000.1 / IEC 60598-1), appliance switches (GB/T 15092.1 / IEC 61058-1), switches for fixed electrical installations (GB 16915.1 / IEC 60669-1), and appliance couplers (GB/T 17465.1 / IEC 60320-1).

2. Standardized Operating Procedure for Performing the Ball Pressure Test
Correctly doing the ball pressure test requires strict adherence to the steps prescribed by the standard. Any deviation may invalidate the results. The following is the core operational procedure distilled from common standards:

1. Pre-conditioning and Temperature Stabilization: Place the ball pressure test device (including the steel ball, loading mechanism, and specimen support) together with the specimen into a high-temperature test chamber (e.g., LISUN GW-225 oven). Leave them for a sufficient period at the specified test temperature to allow the entire test system (device and specimen) to reach complete thermal equilibrium. This is crucial for ensuring consistent starting conditions.
2. Specimen Placement and Loading: Place the temperature-stabilized specimen horizontally on the solid steel specimen support (50mm diameter). Operate the device to press the steel ball vertically onto the test surface of the specimen (usually the most vulnerable or critical flat area) with the total force of 20N.
3. Continuous Heating and Load Maintenance: Maintain the specified test temperature (e.g., T°C ±2K) inside the chamber, subjecting the specimen to the 20N ball pressure for the duration of 60 minutes (tolerance +2/0 minutes is typically allowed).
4. Rapid Cooling: Upon reaching the specified time, remove the specimen (with its support) from the high-temperature chamber and immerse it quickly (within 10 seconds) into water at ambient temperature (20°C ±5°C) for a cooling period of 6 minutes. This rapid cooling step aims to “freeze” the thermal deformation state of the material.
5. Measurement and Evaluation: Within 3 minutes of removing the specimen from the water, use suitable measuring equipment (e.g., a measuring microscope with scale, optical projector) to measure the diameter of the indentation produced by the steel ball. Measurements should be precise to the order of 0.01mm. Compare the measured value against the standard limit (≤2.0mm) for pass/fail determination.

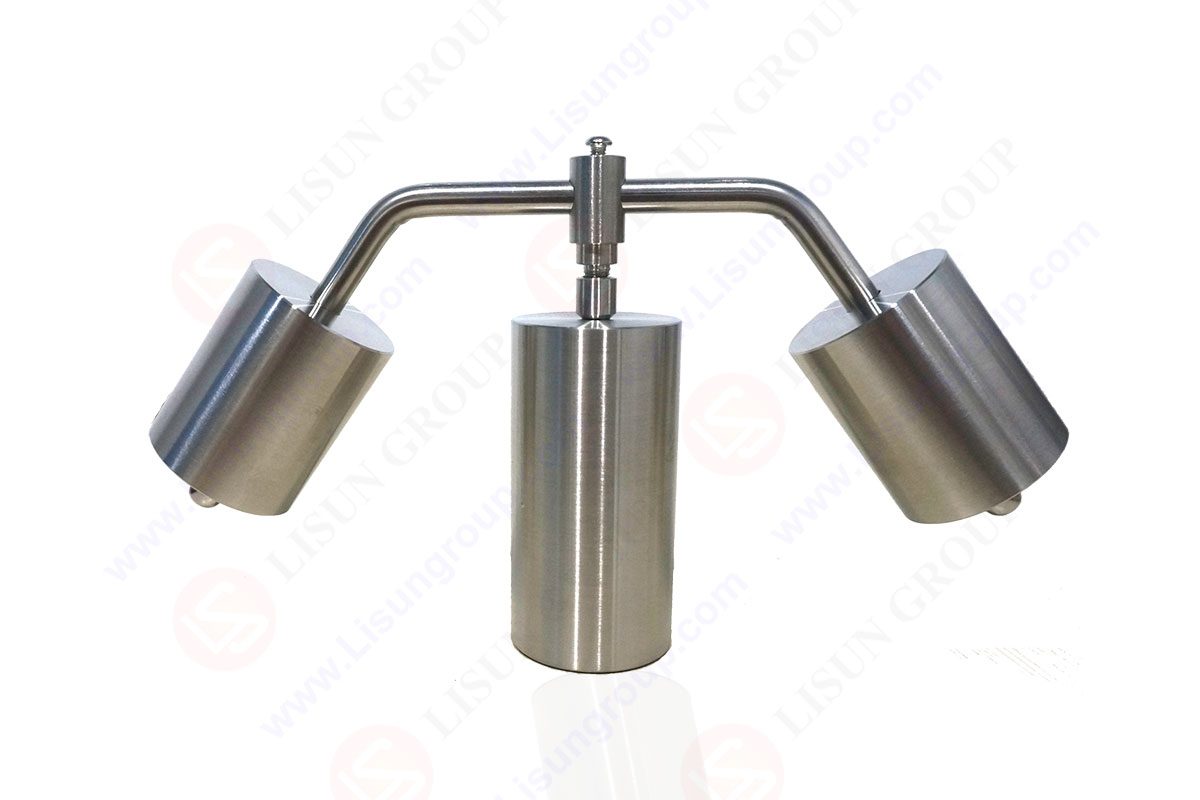

ZBP-T_Ball Pressure Test Device

3. Key Technical Characteristics and Selection of the Test Device
To ensure the authority of test results, the ball pressure test device itself must meet very high mechanical and geometric precision requirements. A qualified device is the foundation for a successful test.
• Ball Precision: The ball diameter must be 5.00mm ±0.01mm (radius R2.5mm), with a smooth, hard surface (typically hardened steel) to ensure uniform force application and no self-deformation.
• Test Force Accuracy: The total force must be precisely controlled within 20N ±0.2N (i.e., ±1%). This is usually achieved via precise weights, a lever system, or a calibrated loading mechanism.
• Structural Rigidity: The entire device (including support and loading frame) must be made of rigid material (e.g., steel with surface plating), exhibiting no significant deformation at high temperatures to ensure the 20N force is fully and vertically transmitted to the contact area between the ball and specimen.
• Compatibility with Supporting Equipment: The device design must fit within the internal space of a standard high-temperature chamber and allow for convenient operation inside it. For example, LISUN’s ZBP-T device is specifically designed to work seamlessly with its GW-225 series ovens, forming a complete thermal endurance testing solution.

4. Key Considerations and Common Issue Analysis
When doing the ball pressure test, the following steps are prone to error and require special attention:
• Importance of Temperature Equalization: It is insufficient for only the specimen to reach the chamber temperature. The ball pressure test device (especially the ball and support) must also be pre-placed and sufficiently heated until completely equilibrated with the chamber temperature. Otherwise, a cold ball pressing on a hot sample causes localized cooling, introducing test error.
• Critical Timing of Cooling Operation: “Immersion in cold water within 10 seconds” is a crucial step. Delayed operation allows the specimen to cool in air, causing partial recovery (spring-back) of the deformation. This results in a measured indentation diameter smaller than the actual thermal deformation, creating a risk of false pass.
• Measurement Method and Accuracy: Indentation edges may be unclear. Optical equipment with illumination and a calibrated scale should be used for objective and accurate reading. Operator training is also important.
• Specimen Selection and Preparation: The test should be performed on a flat area of the component (e.g., enclosure). If the surface is curved, a small flat area may need to be prepared. Specimens should be pre-conditioned (e.g., heat aging) as required by the product standard before testing.

Conclusion
How to do ball pressure test? The answer lies in strict adherence to the standard procedure and precise control of details. From ensuring full temperature equalization of the device and specimen, applying the precise 20N force and maintaining it for 60 minutes at the specified temperature, to the critical rapid water cooling within 10 seconds and final precise measurement within 3 minutes—each step is interlinked, together forming the gold standard for assessing the thermal endurance of plastic parts. Employing a high-quality ball pressure test device like the LISUN ZBP-T, which meets all mechanical and geometric standards, and working in synergy with a high-performance oven, is fundamental for obtaining reliable, repeatable, and recognized test data. For manufacturers, mastering the standardized method for the ball pressure test is not only about passing certification but also a vital technical means to deeply understand material properties and enhance product safety and durability from the source.
