IEC 60730-1:2010 Automatic electrical controls for household and similar use-Part 1:General requirements

IEC 60730-1:2010 defines general safety and performance requirements for automatic electrical controls used in or with household and similar equipment, encompassing energy sources like electricity, gas, oil, solid fuel, and solar thermal energy. It applies to controls for appliances (per IEC 60335-1), building automation systems (per ISO 16484-2), independent control systems, and multi-function controls with non-electrical outputs, excluding controls specifically designed for industrial process applications unless stated otherwise. Core focus areas include inherent safety of controls, safety-related operating parameters, and validation testing of relevant devices.

The 2010 edition incorporates key updates: revised low-temperature test rules for in-line cords, adjusted pollution degree specifications for contact environments, and new tests for flexible cords. It updates heat, fire, and tracking resistance requirements (replacing Clause 21 and Annexes F/G), integrates CISPR 11 EMC requirements and IEC 60335-series EMC test levels, and adds provisions for PCB screwless terminals and non-SELV supplied sensor cables (Annex T). Additionally, it incorporates software techniques from IEC 61508-3, replaces Annex D with references to UL 746C, updates related bibliographies, and removes the keyword index to enhance compliance clarity.

LISUN supplies the fully test solutions for the following IEC 60730-1:2010, please see the below excel table:

IEC 60730-1:2010 Clause and Subject	LISUN MODEL
6.5 According to the degree of protection and control pollution degree	JL-X
6.13 According to value of proof tracking index (PTl) for the insulation material used	TTC-1
21.2.7 Resistance to tracking	TTC-1
8.1.9 standard test finger shown in Figure 2	SMT-PBC

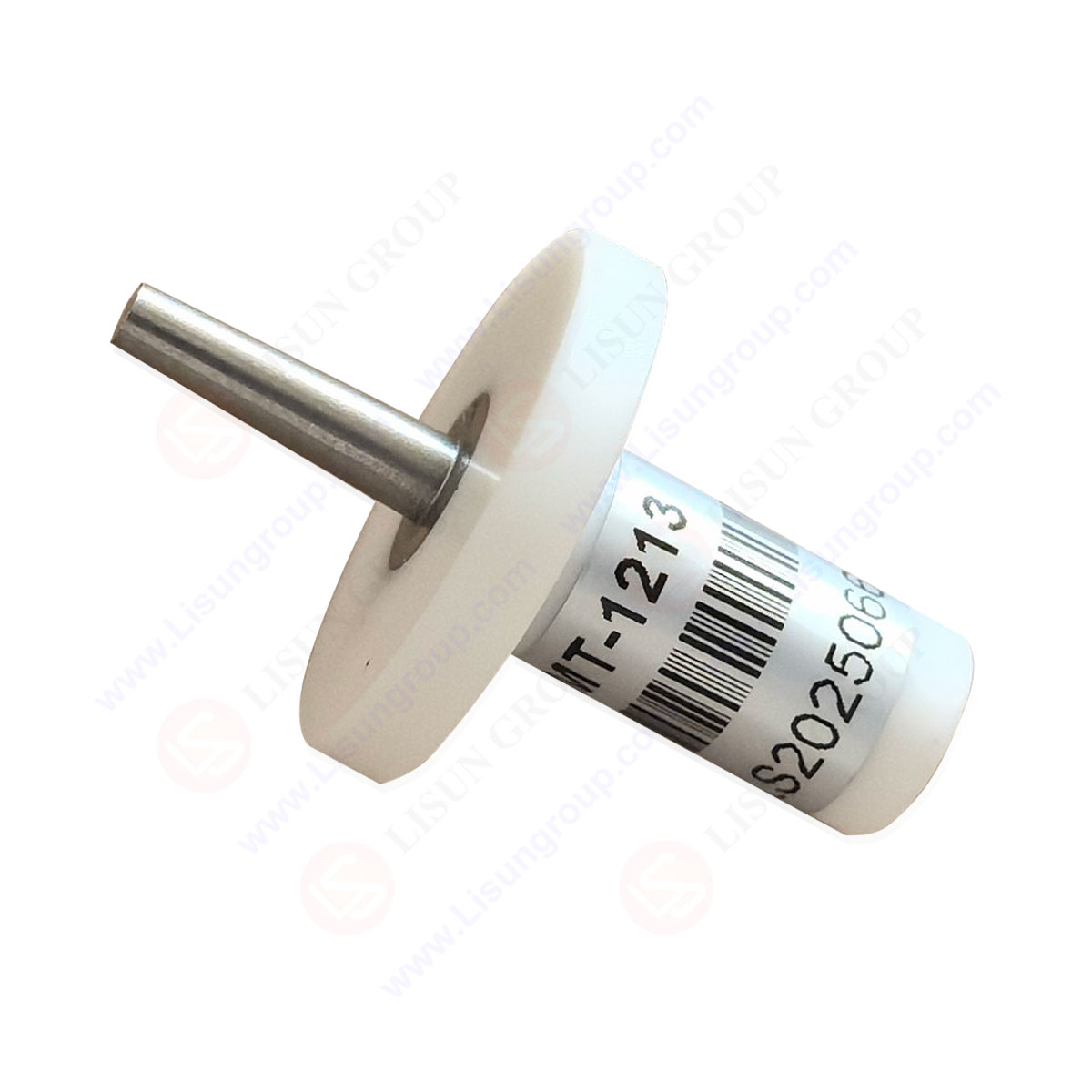

8.1.9.2 Figure 1	SMT-1213
9.4 Corrosion resistance	YWX/Q-010
22 Resistance to corrosion	YWX/Q-010
11.7.1 Flexing	SW-6
12.1 Protection against ingress of water and dust	JL-X&SC-015
12.2 Protection against humid conditions	GDJS-015B
16 Environmental stress	GDJS-015B
13.1 Insulation resistance	WB2681A
18.2 Impact resistance	IK07-10
20 Creepage distances, clearances and distances through solid insulation	CK-1
Annex B Measurement of creepage distances and clearances in air	CK-1

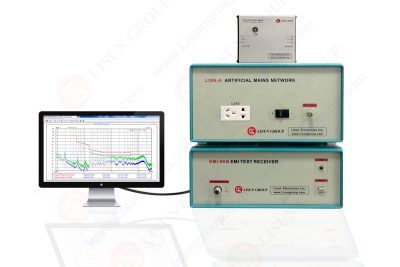

23 Electromagnetic compatibility (EMC) requirements – emission	EMI-9KB
G.2 Glow-wire test	ZRS-3H
G.4 Proof tracking test	TTC-1
G.5 Ball pressure test	ZBP-T
Annex H
H.26.8 Surge immunity test	SG61000-5
H.26.9 Electrical fast transient/burst test	EFT61000-4
H.26.10 Ring wave test	RWG61000-12
H.26.11 Electrostatic discharge test	ESD61000-2
H.26.12 Radio-frequency electromagnetic field immunity	RFCI61000-6
H.26.12.3 Radiated electromagnetic fields immunity evaluation	GTEM-2
H.26.14 Power frequency magnetic field immunity test	PFM61000-8A
