22 Nov, 2022 22 Views Author: LISUN

What are the nine common types of IP grade waterproof testing instruments

IP grade waterproof testing instrument is a grading standard of IP waterproof testing equipment, which is used to determine whether the IP waterproof of products meets the grade standard requirements.
IP grade waterproof test instrument is an environmental test equipment that simulates natural rain water manually. It can provide simulation of electrical components and electronic products that may be exposed to various environments such as water sprinkling or splashing during use or testing. It can detect whether they are rainproof or not, and whether their normal operation is affected if they are exposed to water or splashed.

video

What are the nine common types of IP grade waterproof testing instruments?

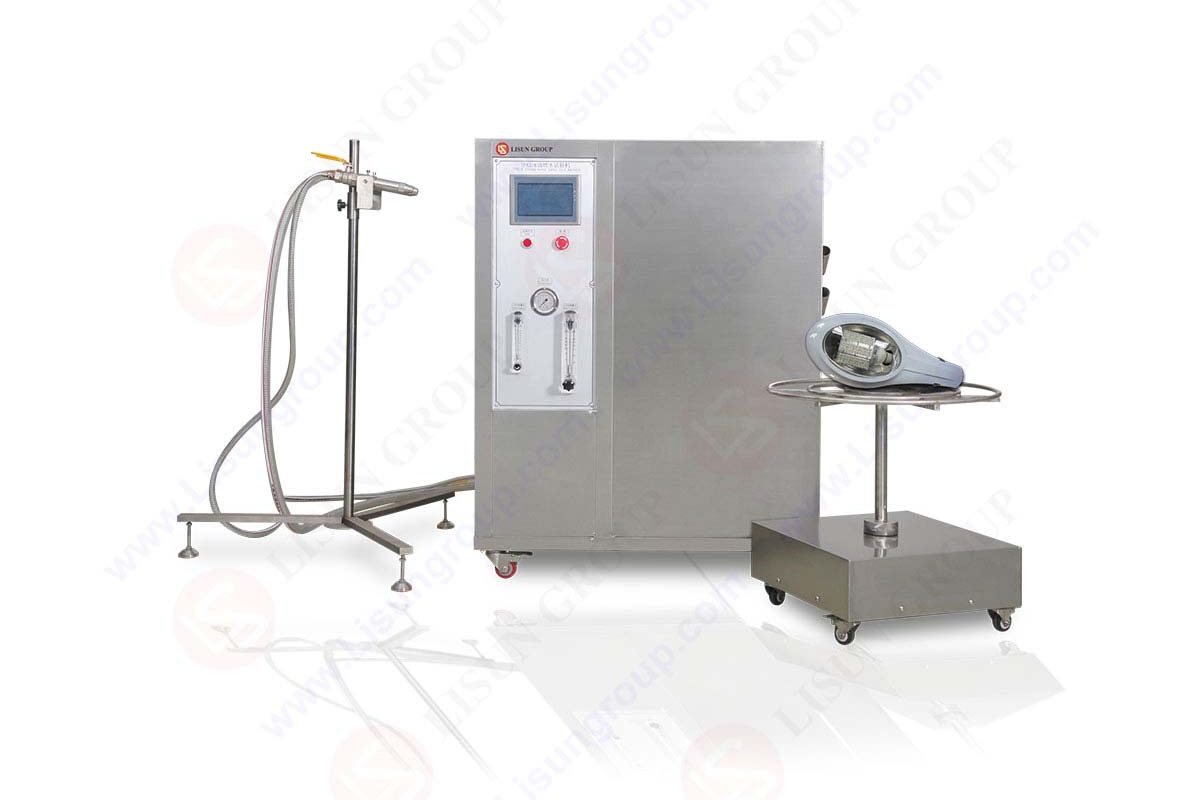

Common IP grade waterproof testing instruments include ipx12 drip box , ipx34 swing pipe water spray test equipment, ipx56 waterproof jet test device , ipx7/8 immersion tank waterproof test device, and ipx9 high temperature pressure jet waterproof test chamber. They can be either single equipment or integrated rain box. The larger the number, the better the waterproof effect. Of course, the stricter the requirements are.

IP grade waterproof test instrument can meet IEC60529:1989+A1:1999+A2:2013 Degrees of protection provided by enclosures (IP Code) and GB4208-2017 Degrees of Protection by Enclosures (IP Code).

waterproof test JL-X

How to make watch waterproof tester IPX7 waterproof?
What does the watch waterproof tester mean? In fact, the watch test sample was tested for IP waterproof, and then it was judged whether the product met the requirements of the IP waterproof grade standard.
For the waterproof grade to be tested on the test sample, it mainly depends on the user’s test requirements for the product. Different users have different waterproof tests and grades for the product. How to do IPX7 waterproof for the watch waterproof test instrument?
Clean the shell of the watch of the test sample, and then put it into the box of the IPX7 waterproof test instrument. The immersion time is 30 minutes. After the test time is completed, take out the test sample for observation and record the results. Although the level 7 waterproof test method is simple, it is not simple at all.

Test process of watch waterproof tester:
① Add water to the equipment to the standard water level. Be careful not to completely fill the water tank. If the water tank is full, the water will overflow during sample setting.
② Before the test, the test sample shall be cleaned to prevent impurities from entering the water.
③ Bind the test sample with nylon rope or steel chain, and then slowly put the test sample into water.
④ Hang the other end of the binding rope on the hook of the inner box to facilitate sampling;
⑤ The test time is 30min. During the test, you can observe the test condition in the water tank through the glass. After the test time is up, you can take out the sample, observe and record the test results;
⑥ End of test; If the water quality is polluted and turbid, or if it is not used for a long time, drain the water tank.

LISUN lauched JL-X waterproof test machine is according to IEC60529:1989 +A1:1999 +A2:2013 《Degrees of protection provided by enclosures(IP Code)》IEC60598, IEC60335 and IEC 60034-5, GB/T-2423.2GB4208GB7000.1. The JL-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products, LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.

Immersion tank Waterproof test Device (JL-7): It is for IPX7 waterproof test. The water tank size is 1000x1000x1200mm (Other size can be designed according to your request). It can test samples up to 120kg.

Waterproof Test Machine JL-7

Lisun Instruments Limited was found by LISUN GROUP in 2003. LISUN quality system has been strictly certified by ISO9001:2015. As a CIE Membership, LISUN products are designed based on CIE, IEC and other international or national standards. All products passed CE certificate and authenticated by the third party lab.

Our main products are GoniophotometerIntegrating SphereSpectroradiometerSurge GeneratorESD Simulator GunsEMI ReceiverEMC Test EquipmentElectrical Safety TesterEnvironmental ChamberTemperature ChamberClimate ChamberThermal ChamberSalt Spray TestDust Test ChamberWaterproof TestRoHS Test (EDXRF)Glow Wire Test and Needle Flame Test.

Please feel free to contact us if you need any support.
