13 Aug, 2022 777 Views Author: Cherry Shen

LISUN JL-8 IP Waterproof Test Equipments – After Sales Questions and Answers

JL-X waterproof test machine is according to IEC60529:1989 +A1:1999 +A2:2013 《Degrees of protection provided by enclosures(IP Code)》IEC60598, IEC60335 and IEC 60034-5, GB/T-2423.2GB4208GB7000.1. The JL-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products, LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.

video

The whole JL-X waterproof test system includes:
• Drip Box (JL-12): The drip box is for IPX1 and IPX2 drip test. The drip box size is 800x800x75mm (LxWxH). The diameter of drip hole is 0.4mm. The distance between drip holes is 20mm. The sample can be over 150kg.
• Swing Pipe Water Spray Test Equipment (JL-34): It is for IPX3 and IPX4 waterproof test. The semi-diameter of swing pipe is 1meter (Any other size is also available). The inside diameter of the swing pipe is 15mm. The sample rotating table diameter is 1000mm (Or other size according to the diameter of the swing pipe), and the height is adjustable. The rotation speed is 1~5rpm which controlled by PLC panel.
• Waterproof Jet Test Device (JL-56): With water supply device size is 1000x1000x600mm, the nozzle diameter is ф6.3mm (IPX5 waterproof test ) and ф12.5mm (IPX6 waterproof test). The water speed is 12.5 ±0.626L/min for IPX55 and 100 ±5L/min for IPX6
• Immersion tank Waterproof test Device (JL-7): It is for IPX7 waterproof test. The water tank size is 1000x1000x1200mm (Other size can be designed according to your request). It can test samples up to 120kg.
• Immersion tank Waterproof test Device (JL-8): It is for IPX8 test. It can simulate a water depth of 0~50m. The water immersion tank diameter is 600mm and the height is 1200mm. The compressive stress is 10 atmospheres or design according to customer‘s request.

LISUN JL-8 IP Waterproof Test Equipments – After Sales Questions and Answers

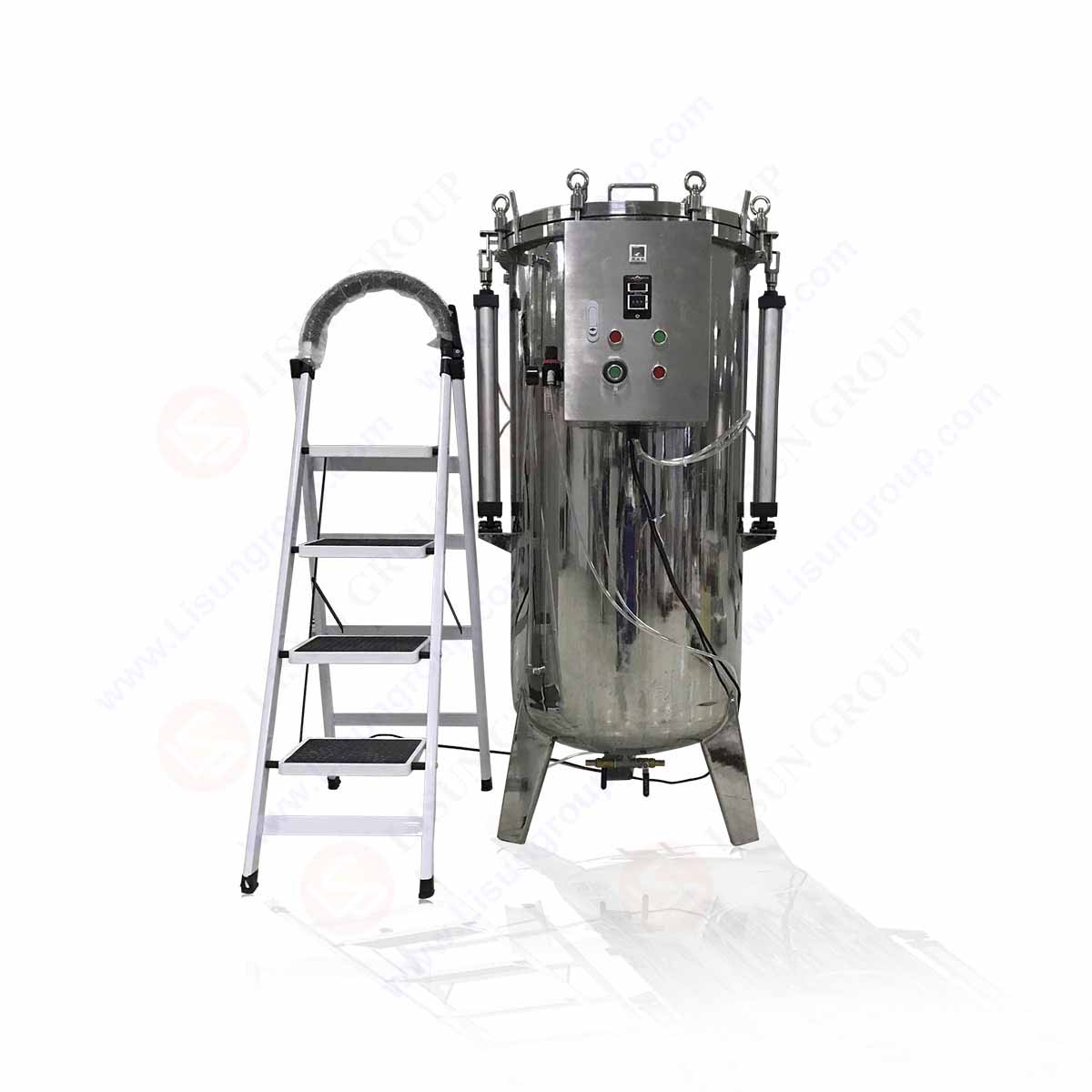

JL-8 Immersion tank Waterproof test Device

Q1: The timer does not display after power on.

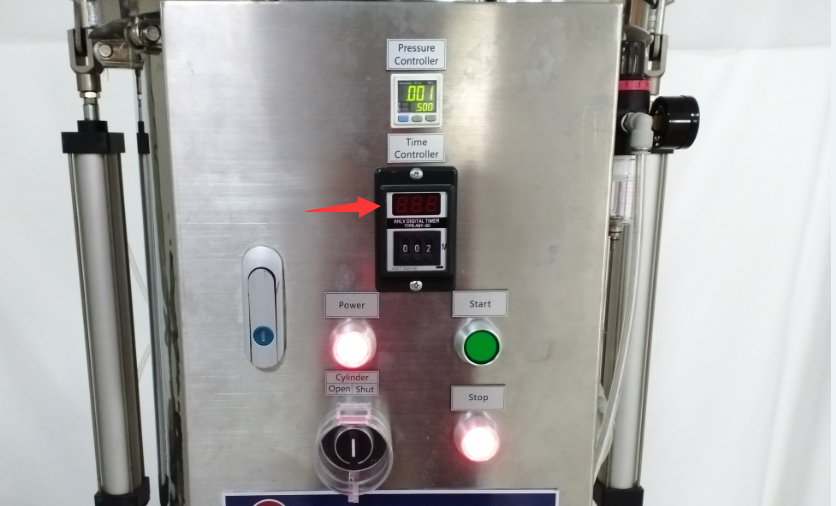

LISUN JL-8 IP Waterproof Test Equipments – After Sales Questions and Answers

Timer

A1: Only when the air pressure in the test chamber reaches the set air pressure, and then the test officially starts, the timer will display and start the countdown.

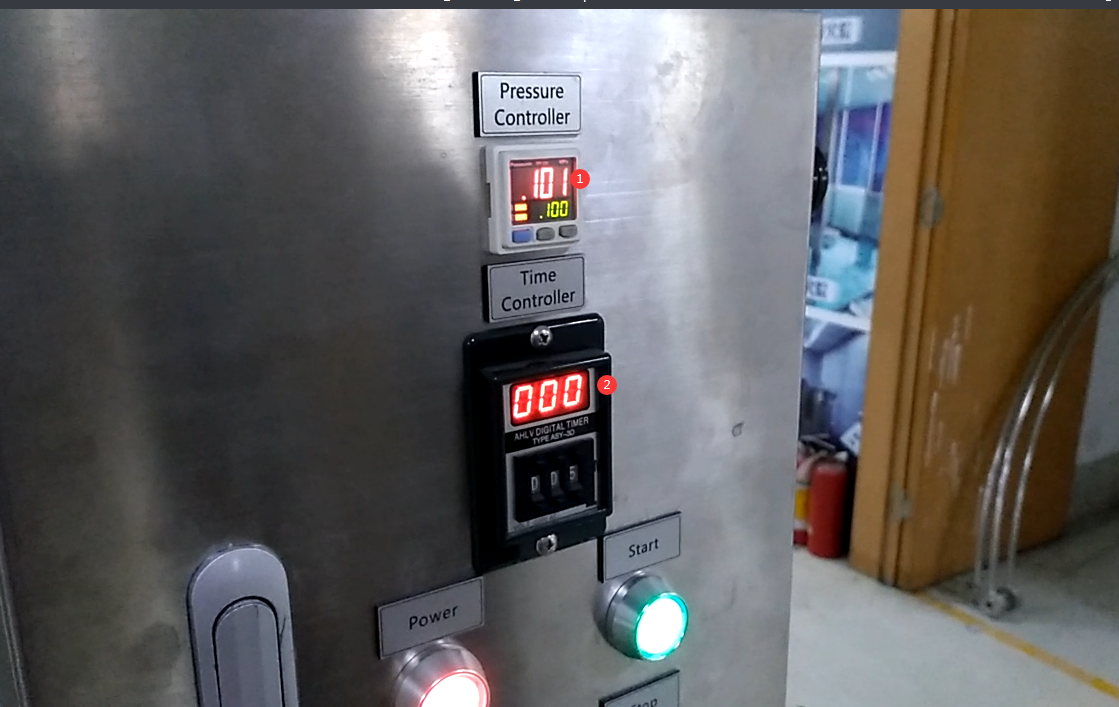

LISUN JL-8 IP Waterproof Test Equipments – After Sales Questions and Answers

Air pressure value

After the set test duration ends, the timer will go out again.

Q2: The function of air compressor
A2: JL-8 Waterproof test equipment needs to be used with air compressors, and customers need to provide their own air compressors (see the operating instructions for air compressor parameters).
The air compressor has two functions:
1 During the test, it is used to add air pressure to the test chamber to simulate the pressure in deep water.
2. The top cover of the test chamber is heavy. When it is necessary to open the top cover of the test chamber, use the air pressure of the air compressor to open the top cover.

Q3: How to confirm the test results
A3: Take out the sample, wipe the water on the surface, and then open the sample to check whether there is water inside. If there is water inside, it does not meet the standard.
For specific details, different rules in different industries, please refer to the corresponding industry standards.
