03 Sep, 2025 23 Views Author: Cherry Shen

The Glow-Wire Test as a Critical Flammability Test for Plastics: Principles, Applications, and Data Analysis with LISUN Glow-Wire Test Apparatus

Abstract
The flammability test for plastics is a fundamental assessment in material science and product safety, particularly for components used in electrical and electronic appliances. Among various testing methods, the glow-wire test stands out for its ability to simulate thermal stresses caused by overheated or glowing parts in equipment. This paper explores the glow-wire test as a physical thermal flammability test for plastics, detailing its principles, procedures, and applications. The focus is on the LISUN ZRS-3H Glow-Wire Test Apparatus, an instrument designed to evaluate the ignition susceptibility, ignition temperature, flammability, and flammability index of plastic materials. The discussion includes experimental data and comparative analysis to underscore the test’s relevance in ensuring compliance with international safety standards.

The Glow-Wire Test as a Critical Flammability Test for Plastics: Principles, Applications, and Data Analysis with LISUN Glow-Wire Test Apparatus

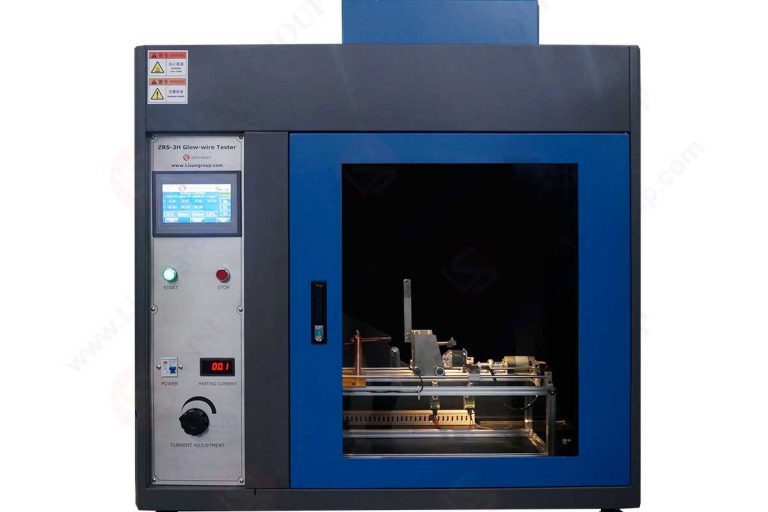

Glow wire tester

Introduction
Plastics are ubiquitous in modern industries, especially in lighting devices, electronics, and household appliances, due to their versatility and cost-effectiveness. However, their inherent flammability poses significant fire risks, necessitating rigorous flammability testing. The glow-wire test, specifically designed as a flammability test for plastics, addresses these concerns by subjecting materials to controlled thermal conditions that mimic real-world scenarios like electrical faults. This test is standardized under IEC 60695-2-10 to 2-13, GB/T 5169.10-13, and other norms, ensuring consistency and reliability in evaluating material behavior under heat stress. The LISUN ZRS-3H Glow-Wire Test Apparatus exemplifies advanced technology in this domain, offering precise measurements for critical parameters such as ignition temperature and flammability index.



Principles of the Glow-Wire Test
The glow-wire test involves heating a standardized wire element (typically made of nickel-chromium) to a predetermined temperature (ranging from 550°C to 960°C) using an electrical current. The glowing wire is then pressed against a plastic sample for a specified duration (usually 30 seconds). Observations are made for:
• Ignition: Whether the sample ignites and sustains flame.
• Flame Persistence: Duration of burning after wire removal.
• Material Behavior: Formation of droplets that may ignite surrounding materials.
This flammability test for plastics assesses the material’s resistance to ignition and its ability to self-extinguish, providing insights into its thermal stability and fire safety characteristics.

video

LISUN ZRS-3H Glow-Wire Test Apparatus
The LISUN ZRS-3H is a state-of-the-art instrument engineered for conducting glow-wire tests with high accuracy and reproducibility. Key features include:
• Temperature Control: Digital PID regulation for precise heating up to 1000°C.
• Automated Operation: Programmable test cycles and automatic timing.
• Safety Mechanisms: Overheat protection and secure sample clamping.
• Data Recording: Integrated software for capturing ignition times, temperature profiles, and flame durations.
This apparatus is widely used in quality control labs to perform flammability tests for plastics, ensuring products meet international standards like IEC 60695 and GB/T 5169.

Applications in Industry
The glow-wire test is indispensable for:
• Lighting Equipment: Evaluating plastic housings and components for luminaires.
• Electronics: Testing enclosures of switches, connectors, and circuit boards.
• Household Appliances: Assessing materials in irons, heaters, and power tools.
By determining the glow-wire ignition temperature (GWIT) and glow-wire flammability index (GWFI), manufacturers can select materials that minimize fire hazards, enhancing product safety and compliance.

Experimental Data and Analysis
To illustrate the efficacy of this flammability test for plastics, tests were conducted on common polymers using the LISUN ZRS-3H. The table below summarizes results for samples of 3mm thickness:

Plastic Material Glow-Wire Temperature (°C) Ignition Occurred? Flame Duration (s) GWIT (°C) GWFI (°C)
Polypropylene (PP) 750 Yes 15 675 750
Polycarbonate (PC) 850 No 0 850 925
ABS 800 Yes 8 725 800
Nylon 66 950 Yes 5 900 950
PVC (Fire-Retardant) 960 No 0 >960 >960

* GWIT: The highest temperature at which the material does not ignite.
* GWFI: The highest temperature at which the material may ignite but self-extinguishes within 30s without spreading fire.
Data analysis reveals that materials like polycarbonate and fire-retardant PVC exhibit superior performance, with higher GWIT and GWFI values, making them suitable for high-temperature applications. Conversely, PP and ABS require additives or design modifications to improve flammability resistance.

Discussion
The glow-wire test provides a realistic simulation of thermal faults, making it a critical flammability test for plastics. Its integration into product development cycles helps identify vulnerabilities early, reducing the risk of fire-related failures. The LISUN ZRS-3H enhances this process through its reliability and adherence to standards, facilitating global market access for manufacturers.

Conclusion
As a specialized flammability test for plastics, the glow-wire method, supported by instruments like the LISUN ZRS-3H Glow-wire tester, plays a pivotal role in advancing material safety. By quantifying ignition and burning behaviors, it enables the selection of plastics that ensure consumer protection and regulatory compliance.
