IEC 60529 IPX3 and IPX4 Testing Guide: Professional Solutions for Spraying and Splashing Water Protection

Abstract

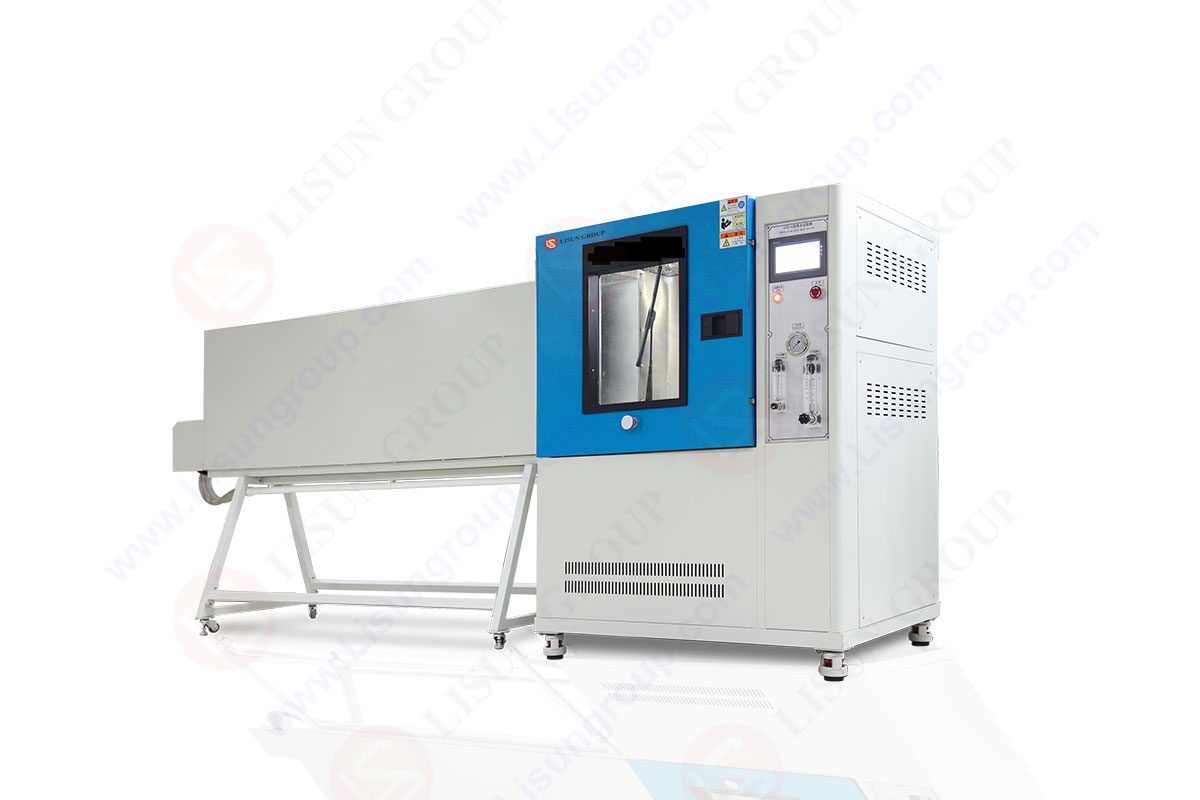

In the context of global market integration and harmonized technical standards, product safety and environmental durability have evolved from competitive advantages into fundamental requirements for market access. The IEC 60529:2013 standard, published by the International Electrotechnical Commission, is globally recognized for defining Ingress Protection (IP) ratings, providing a systematic code to quantify a device’s protection against solid objects and water. Among these ratings, IPX3 and IPX4 testing are critical benchmarks for evaluating the basic water resistance of outdoor and semi-outdoor electronic devices. The LISUN JL-34CP-R400 Waterproof Test Chamber is a highly integrated system specifically engineered to perform accurate IPX3 and IPX4 testing. This guide details how this model leverages precise mechanical design and intelligent control to fulfill standard requirements and address core testing challenges, delivering reliable compliance verification.

1. Introduction
The validity of IPX3 and IPX4 testing hinges on the test equipment’s ability to accurately replicate standard specifications. Common issues such as angular deviation, incomplete coverage, and non-repeatable results often stem from insufficient dynamic precision and control stability in the testing apparatus. The LISUN JL-34CP-R400 Waterproof Test Chamber is purpose-built to meet the stringent requirements of clauses 14.2.3, 14.2.4, and Figure 4 of the GB/T 4208-2017 standard (identical to IEC 60529:2013). Its integrated R400mm radius oscillating tube, programmable swing system, and intelligent rotary table translate abstract test criteria into a stable, precise, and repeatable physical environment, fundamentally enhancing the authority and comparability of test data.

2. Technical Analysis: Implementing IPX3 & IPX4 Tests
The core distinction between IPX3 and IPX4 tests lies in the three-dimensional angle of water coverage. The JL-34CP-R400 model accurately achieves this through its central oscillating tube system.

2.1 IPX3 Test Implementation
The standard simulates water sprayed at an angle up to 60° from vertical. The JL-34CP-R400’s R400mm radius oscillating tube has nozzles precisely distributed along a 120° arc. During testing, the device controls the tube to swing 60° to each side of the vertical position, achieving a total swing of 120°, thereby creating a standard fan-shaped water spray area on the sample surface. The water flow rate is adjustable from 0 to 2 L/min to meet specified requirements.

2.2 IPX4 Test Implementation
The standard requires protection against water splashed from all directions, representing a higher severity test. To achieve “omnidirectional coverage,” the JL-34CP-R400 extends the oscillation angle of the same tube to 180°, enabling it to rotate through nearly 360° (swinging approximately ±180°). This ensures all seams, joints, and interfaces on every side of the sample are subjected to uniform, sustained water jet impact.

3. Core Features & Innovations of the JL-34CP-R400 Model
This model is a complete testing system integrating precise motion, constant flow, and safety protection, designed to solve common laboratory pain points.
• High-Precision Oscillating Tube & Angle Control: The tube is driven by a servo system. The swing angle is not only preset to standard specifications (IPX3: 120°, IPX4: 180°) but is also customizable within a 0-180° range. The closed-loop feedback of the servo system ensures zero cumulative angle error over long test cycles (e.g., 10 minutes), eliminating invalid tests due to deviation.
• Intelligent Rotary Table System: The table has a 400mm diameter, an adjustable height from 350-600mm, and a load capacity of up to 50kg. It offers variable speed from 1-5 r/min. Crucial “Continuous Forward / Forward-Reverse Alternation / Intermittent” rotation modes, especially the forward-reverse alternation, effectively prevent power cable entanglement during live testing.
• Integrated Safety & Constant Flow Design: The equipment includes multiple protections (leakage, short circuit, water shortage). The built-in flow control system and stable water supply ensure uniform and constant output from every nozzle throughout the test, maintaining consistent “water intensity” as required by the standard.

Parameter Category	Configuration Item	Specification & Description
Structural	Compliance Standard	GB/T 4208-2017 (IEC 60529:2013) Clauses 14.2.3~14.2.4, Figure 4
	Oscillating Tube Radius	R400mm
	Test Chamber Dimensions	900mm (W) × 900mm (D) × 900mm (H)
	Rotary Table	Diameter: Φ400mm, Height Adjustable: 350-600mm
Performance	Applicable IP Ratings	IPX3, IPX4
	Oscillation Angle	IPX3 Mode: 120°; IPX4 Mode: 180° (Customizable)
	Water Flow Rate	0 ~ 2 L/min (Adjustable)
	Rotary Table Specs	Load Capacity: ≤50kg; Speed: 1~5 r/min (Adj.); Modes: Continuous Forward / Forward-Reverse / Intermittent
Safety & Control	Safety Protections	Leakage Protection, Water Shortage Protection, Short Circuit Protection
	Power Supply	AC 220~240V, Single Phase, 50Hz (60Hz Optional)

4. Typical Applications & Compliance Verification
4.1 Automotive Component Validation
For automotive cameras, sensors, and connectors requiring compliance with ISO 20653 or GB/T 30038, IPX4 is a fundamental requirement. Using the JL-34CP-R400, samples are placed on the rotary table. Setting a 180° swing angle with forward-reverse alternation accurately simulates multi-directional road spray encountered while driving, validating seal integrity.

4.2 Outdoor Lighting & Security Equipment
Outdoor luminaires (per GB/T 7000.1) and surveillance cameras often require IPX3 or IPX4 ratings. Engineers can mount devices on the JL-34CP-R400’s rotary table and observe in real-time through the large viewing window for any water ingress or condensation inside the housing during angled spray (IPX3) or omnidirectional splashing (IPX4), facilitating design optimization.

5. Conclusion
While IPX3 and IPX4 testing may seem deceptively simple, these common waterproof ratings conceal stringent demands on equipment precision, control stability, and operational rigor. The LISUN JL-34CP-R400 Waterproof Test Chamber is engineered to meet these exacting requirements head-on. By integrating a high-precision servo-driven oscillating tube, an intelligent anti-tangle rotary table, and comprehensive safety protections, it transforms a potentially variable manual process into a reliable, automated, and standardized validation workflow. This ensures not only strict compliance with IEC 60529 but also provides manufacturers with consistent, repeatable data—empowering them to confidently verify product durability, accelerate certification cycles, and succeed in global markets where proven ingress protection is a fundamental requirement.
