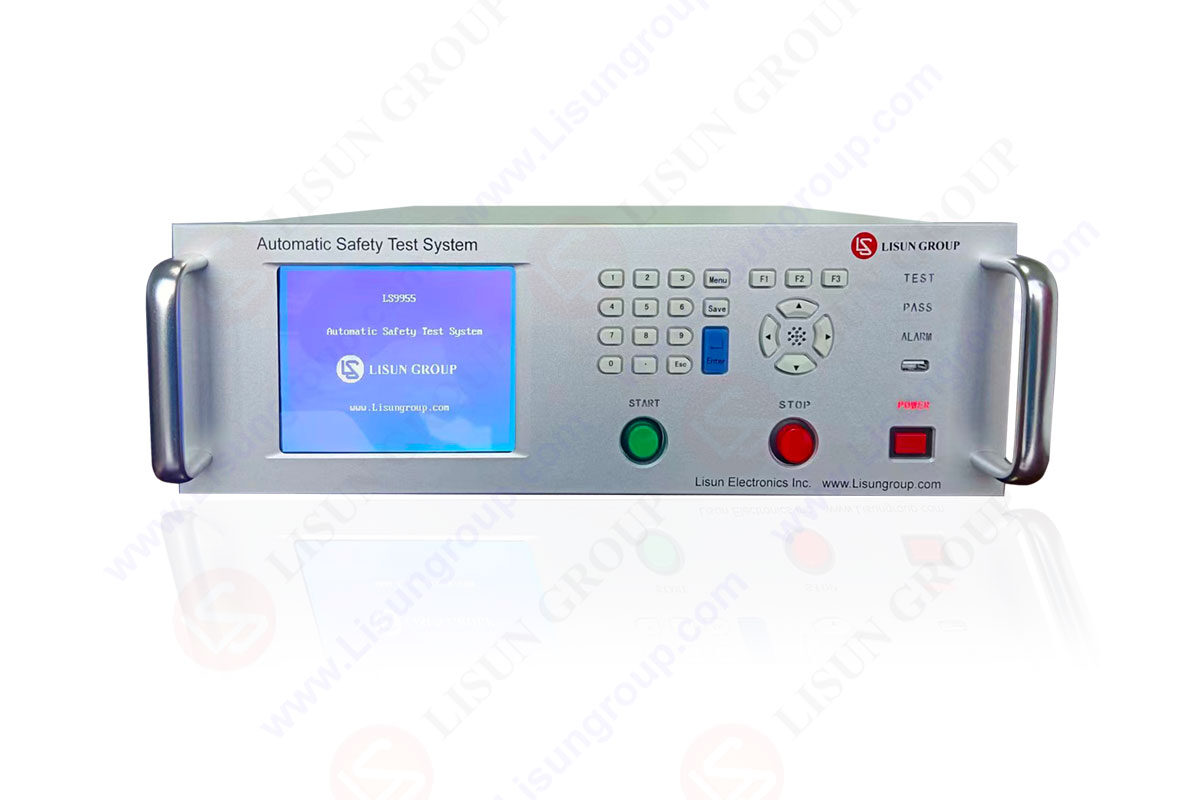

The Significance and Application of the LISUN LS9955 Insulation Tester in Electrical Safety Analysis

Abstract
This paper focuses on the LISUN LS9955 insulation tester, which is an integral part of the Automatic Safety Test System. It delves into the functionality, technical specifications, and applications of this insulation tester in ensuring electrical safety. By analyzing its features and comparing it with industry standards, the paper demonstrates the importance of the LISUN LS9955 insulation tester in various electrical product testing scenarios. Through in – depth research and data presentation, it provides a comprehensive understanding of how this device contributes to maintaining high – level electrical safety.

1. Introduction
In the realm of electrical engineering and product safety, ensuring the integrity of insulation is of utmost importance. Electrical insulation serves as a crucial barrier, preventing the flow of electric current where it is not desired, thus safeguarding both human life and electrical equipment. The LISUN LS9955 insulation tester, as part of the Automatic Safety Test System, plays a vital role in this regard.
The LISUN LS9955 is not just a simple insulation tester; it is a multi – functional device that combines several key electrical safety tests, including the insulation resistance test (IR). This makes it an essential tool for manufacturers, quality control departments, and research and development laboratories in the electrical industry. It can be used to test a wide range of electrical products, such as lighting fixtures, household appliances, and motor tools, ensuring that they meet strict safety standards.

2. Working Principle of the Insulation Tester in the LISUN LS9955
The insulation resistance test in the LISUN LS9955 is based on the principle of applying a direct – current (DC) voltage across the insulation being tested and measuring the resulting leakage current. According to Ohm’s law, the insulation resistance (R) can be calculated as the ratio of the applied voltage (V) to the measured current (I), i.e.,R=V/I
​
The tester has a specific voltage range for the insulation resistance test, which is DC100 – 1000V. When the voltage is applied, if the insulation is in good condition, the leakage current will be very small, indicating a high insulation resistance. However, if there are defects in the insulation, such as cracks, moisture ingress, or aging, the leakage current will increase, resulting in a lower insulation resistance value.

3. Technical Specifications of the LISUN LS9955 Insulation Tester

3.1 Insulation Resistance Test Specifications

The LISUN LS9955 insulation tester has an impressive insulation resistance measurement range of 1.00 – 2000MΩ with an accuracy of 5%+0.5MΩ. This wide range allows it to test a variety of electrical products with different insulation requirements. For example, in household appliances, the insulation resistance requirements may vary depending on the type of appliance and its intended use. A refrigerator may have different insulation requirements compared to a toaster, and the LISUN LS9955 can accurately measure the insulation resistance of both.

Test Item	Range	Accuracy
Insulation Resistance (IR)	1.00 – 2000MΩ	5%+0.5MΩ
Voltage for IR Test	DC100 – 1000V	–

3.2 Compatibility with Other Tests

As part of the Automatic Safety Test System, the LS9955 insulation tester can be used in conjunction with other tests, such as the withstand voltage test, leakage current test, and grounding resistance test. This integrated approach provides a more comprehensive assessment of the electrical safety of a product. For instance, after measuring the insulation resistance, the withstand voltage test can be carried out to check if the insulation can withstand higher voltages without breaking down.

Test Item	Range	Accuracy
Withstand Voltage (AC/DC)	100 – 4000V	±(5%+3V)
Leakage Current (LLC)	0.10 – 20mA	±(0.3%+5μA)
Grounding Resistance (GR)	0 – 600mΩ	±(5%+2mΩ)

4. Applications of the LISUN LS9955 Insulation Tester

4.1 In Production Lines

In the manufacturing of electrical products, the LISUN LS9955 insulation tester is widely used on production lines. It helps manufacturers ensure that each product leaving the factory meets the required safety standards. By performing insulation resistance tests at various stages of production, manufacturers can identify and correct insulation – related issues early, reducing the risk of defective products reaching the market. For example, in the production of lighting fixtures, the insulation of the electrical components and the outer casing can be tested to prevent electric shock hazards.

4.2 In Research and Development Laboratories

Research and development (R&D) laboratories also benefit greatly from the LISUN LS9955 insulation tester. When developing new electrical products or improving existing ones, R&D engineers need to test the insulation performance to optimize the design. The tester’s accurate measurement capabilities enable engineers to evaluate different insulation materials and designs, leading to the development of more reliable and safer electrical products. For instance, in the development of new types of household appliances, engineers can use the LS9955 to test the insulation of innovative circuit designs.

4.3 In Compliance Testing

Compliance with international and national safety standards is mandatory for electrical products. The LISUN LS9955 insulation tester is designed to meet several major safety standards, including IEC/EN 60335 – 1:2023/GB 4706.1 – 2024 “Household and similar electrical appliances – Safety – Part 1: General requirements”, UL 60335:2022 “Standard for Safety of Household and Similar Appliances, Part 1: General Requirements”, and IEC 60598:2024/GB 7000 – 2023 “Luminaires – Part 1: General requirements and tests”. When electrical products are tested for compliance, the accurate results provided by the LS9955 insulation tester are crucial for obtaining the necessary certifications.

5. Comparison with Other Insulation Testers in the Market

There are numerous insulation testers available in the market, each with its own set of features and capabilities. The LISUN LS9955 insulation tester stands out in several aspects. Firstly, its multi – functional nature sets it apart from single – function insulation testers. Instead of just measuring insulation resistance, it can perform multiple electrical safety tests, which saves time and cost for users.

Secondly, in terms of accuracy, the LS9955’s insulation resistance accuracy of 5%+0.5MΩis competitive. Some other testers may have lower accuracy, which could lead to incorrect assessment of insulation quality. For example, a tester with a lower accuracy may misclassify a product with slightly lower – than – required insulation resistance as compliant, posing a potential safety risk.

Finally, the LISUN LS9955 is also equipped with user – friendly features such as a large LCD screen that displays all setting parameters and testing results, and a programmable test mode with 50 groups of settings and 8 test steps per group. These features make it easier for operators to use and customize the testing process compared to some more complex or less – intuitive testers in the market.

6. Challenges and Limitations
Although the LISUN LS9955 insulation tester is a highly effective device, it does face some challenges and limitations. One of the challenges is the need for proper calibration. Like any precision measuring instrument, the accuracy of the LS9955 can be affected over time. Regular calibration is required to ensure that the measured values are reliable. However, calibration can be time – consuming and costly, especially for small – scale manufacturers or laboratories with limited resources.

Another limitation is related to the testing environment. Extreme environmental conditions, such as high humidity or temperature, can affect the insulation resistance measurement results. For example, in a high – humidity environment, moisture can condense on the insulation surface, increasing the leakage current and giving a false – low insulation resistance reading. Special precautions need to be taken to control the testing environment to obtain accurate results.

7. Future Developments
Looking ahead, there are several areas where the LISUN LS9955 insulation tester can be further developed. One possible development is the integration of advanced wireless communication technology. This would allow for remote control and data transfer, enabling more convenient operation and data management. For example, operators could control the tester from a different location in a large factory or transfer test data directly to a central database for analysis.

Another area of development could be improving the tester’s ability to handle complex insulation structures. As electrical products become more complex, with new materials and designs, the insulation tester needs to be able to accurately measure the insulation resistance of these complex structures. This may involve the development of new measurement algorithms or sensor technologies.

8. Conclusion
The LISUN LS9955 insulation tester is a critical component of the Automatic Safety Test System, playing an essential role in ensuring electrical safety. Its wide range of functions, high – accuracy measurement capabilities, and compliance with international standards make it suitable for various applications in the electrical industry, including production lines, R&D laboratories, and compliance testing.

Despite some challenges and limitations, such as calibration requirements and environmental sensitivities, the future development prospects for the LISUN LS9955 insulation tester are promising. With the integration of new technologies and improvements in handling complex insulation structures, it is expected to continue to be a leading – edge device in the field of electrical safety testing, contributing to the development of safer electrical products for consumers worldwide.

In conclusion, the LISUN LS9955 insulation tester is an indispensable tool in modern electrical engineering and product safety assessment, and its importance will only grow as the demand for safe electrical products continues to increase.
