How to use waterproof tester to conduct waterproof test

Waterproof tester, also known as rain test boxes, rain testing machines, etc., is used to test the waterproof performance of appliances or appliances with rainproof functions. Suitable for testing whether electrical products, casings, and seals can ensure the good performance of equipment and components in rainy environments.

LISUN waterproof tester manufacturer has strong independent research and development capabilities in innovation. Every year, it launches a rain test instrument to meet the testing requirements of different fields, which not only meets measurement standards but also facilitates testing. Continuously increasing R&D and innovation investment in new product research and development, and successively developing IPX1-4 comprehensive test box (4) IPX1-6 comprehensive waterproof test box (6) IPX3-6 comprehensive rain test box 10 waterproof test devices derivative development.

Product features:
The shell is processed from high-quality steel plate, and the surface is sprayed with baking paint, which is beautiful and durable. The inner box, turntable, and wading parts are all made of SUS304 # stainless steel plate, ensuring that they do not rust during long-term use. (Inner box plate thickness: 1.2mm, capable of resisting water impact)
IPX12: Equipped with compressed air drying function, after the test is completed, excess water in the drip box can be discharged completely to avoid long-term accumulation of water and scaling, which can block the needle hole (note: the user needs to provide an air source)
IPX34: The swing tube drive adopts a high-quality servo stepper motor, with precise and adjustable swing tube speed and angle, without any out of step problems (danger of out of step: it can cause the swing tube to move abnormally, collide with the middle turntable shaft, and cause equipment damage)
IPX56: Integral structure, without the need for operators to hold spray guns for testing, the sample can be fixed to start testing
A filter is installed on the water supply pipeline, which can filter impurities in the water and prevent nozzle blockage
LED waterproof lighting is installed inside the test box, and there is a large observation window on the door for easy observation of the test sample

The equipment comes with its own water tank for circulating water, without the need for a professional waterproof testing room. The water tank is equipped with a water level float valve to automatically control the water inlet, and there are high and low water level alarms for monitoring, effectively preventing the water pump from being damaged due to water shortage and dryness
The turntable uses a stepper motor, with a speed that can be set on the touch screen and can control forward and reverse rotation (suitable for testing with sample power on to prevent wire winding).

Touch screen control function: The self-developed IPX waterproof level testing operation interface allows for direct selection of waterproof level and automatic testing according to the waterproof level conditions in the standard terms
Input power supply of the tested object: single-phase 220V/10A (other specifications can be customized)
Equipment power supply frequency: default 50Hz (LISUN can customize 60Hz dedicated equipment. Special attention: 50Hz equipment will rotate faster under 60Hz power supply operation, which does not meet standard requirements, and too fast rotation speed will cause overheating and shorten its lifespan)

Test method for waterproof tester:
1. Only when the air pressure in the test chamber reaches the set air pressure and the test officially begins, will the timer display and start the countdown. After the set test duration ends, the timer will turn off again.
2. During testing, it is used to add air pressure to the test chamber to simulate deep water pressure. The top cover of the test chamber is heavy, and when it is necessary to open it, use the air pressure of the air compressor to open the top cover.
3. Take out the sample, wipe off the surface moisture, and then open the sample to check if there is water entering. If there is water entering, it also does not meet the standard. Specific details vary according to industry regulations, and can refer to corresponding industry standards.

Daily methods for extending the service life of waterproof testing systems:
1. Before waterproof testing, the water tank of the test sample must be filled up before conducting the test;
2. Keep the inner box and water tank of the waterproof testing machine clean, and clean water stains when not in use; Diligent to change water once a week;
3. If the filter element inside the filter becomes black, it should be replaced in a timely manner;
4. If the needle on the pendulum tube is deformed or blocked, it should be replaced in a timely manner;
5. The standard turntable bearing capacity is ≤ 50kg, please do not operate under overload.
6. Timely find a local third-party institution for calibration based on the date of the calibration certificate; Once a year.
7. The waterproof testing system should be placed in a ventilated environment as much as possible to avoid the impact of humid weather on the chassis.
8. The service life of the waterproof testing system is also related to the frequency of use, so in daily life, these are quite routine, but these small details can also be maintained to improve the service life of the equipment.

How long is the appropriate duration for waterproofing testing of the waterproofing testing system?
The appropriate duration for conducting waterproof tests on products is mainly determined by national and international standard testing requirements or user testing time requirements. Some people believe that the longer the testing time, the better. In fact, it is not. Some waterproof testing devices can be tested for 24 or 48 hours, but it is not recommended that the testing time be too long. If the time is too long, it can cause some damage to the product.

For example, the IPX7 immersion test time is 30 minutes, and the IPX8 immersion machine states in GB/T4208-2017 “Housing Protection Level (IP Code)” that it is manufactured through negotiation between the merchant and the user, and there is no standard time specification for this machine. So it’s not easy to say exactly how long it should take, as the testing time varies for different levels.

JL-X waterproof test machine is according to IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, IEC60598, IEC60335 and IEC 60034-5, GB/T-2423.2, GB4208, GB7000.1. The JL-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products, LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.

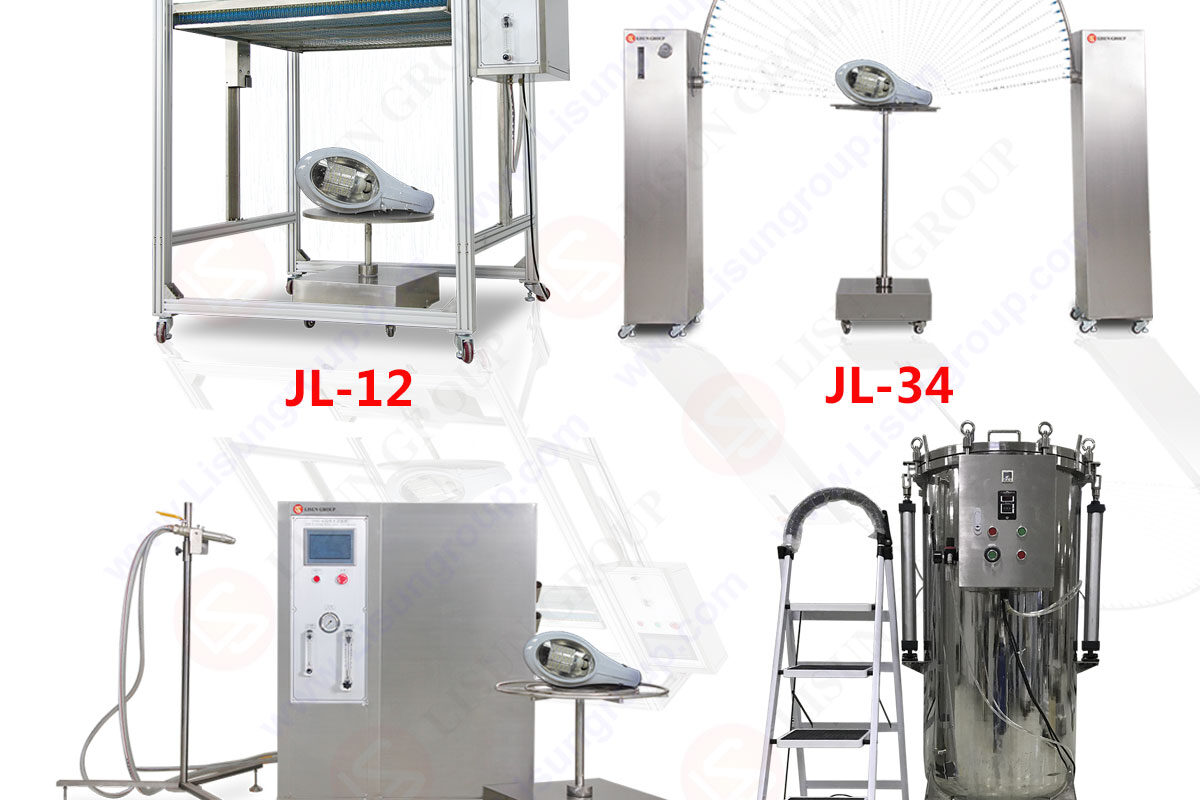

waterproof test Equipment JL-X
