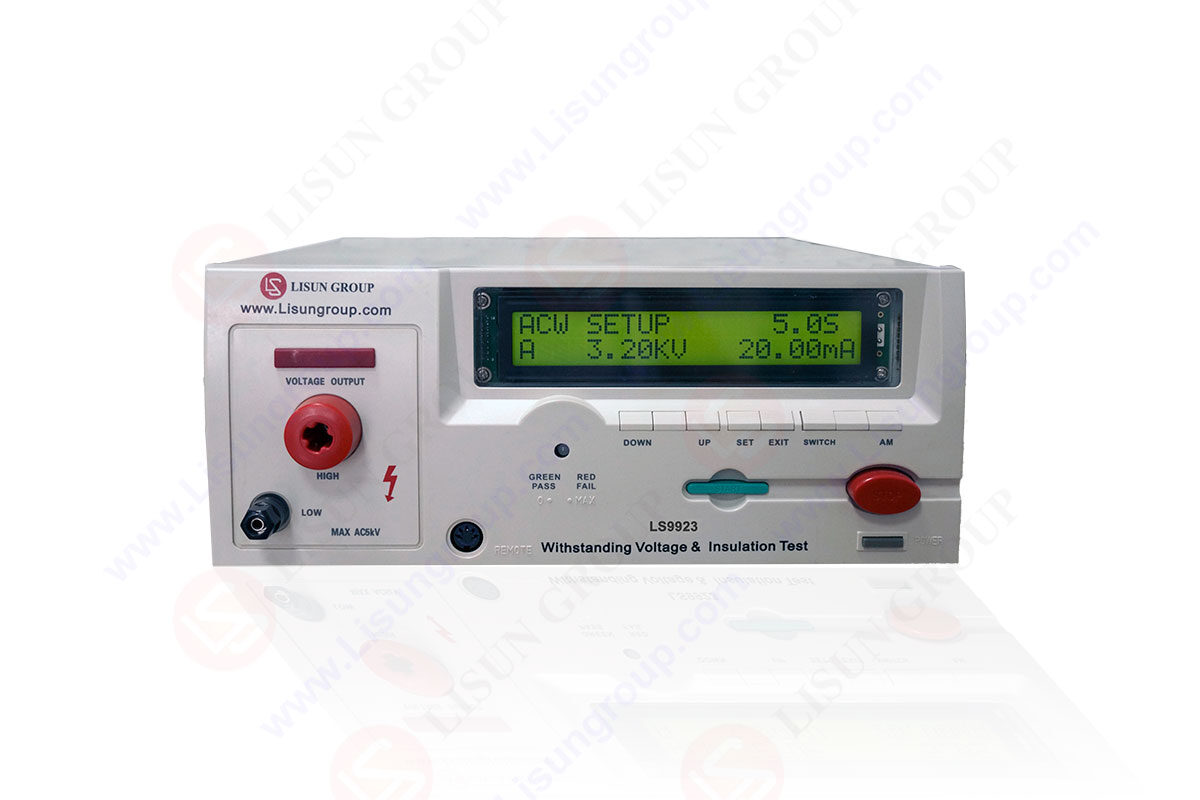

The Significance, Working Principles, and Applications of Withstand Voltage Insulation Tester: A Focus on LISUN LS9923

Abstract
This paper delves into the crucial role of withstand voltage insulation testers in ensuring electrical safety. With a specific focus on the LISUN LS9923 Programmable Withstanding Voltage & Insulation Test instrument, it explores the principles behind its operation, its technical specifications, and diverse applications across various industries. By analyzing its features, comparing it with traditional testers, and examining real – world usage scenarios, the importance of this type of tester in maintaining product quality and preventing electrical hazards is emphasized.

1. Introduction
In the realm of electrical and electronic products, ensuring safety is of paramount importance. One of the key aspects of electrical safety testing is the use of withstand voltage insulation testers. These testers play a vital role in determining whether electrical products can withstand high – voltage stress without insulation breakdown, which could lead to electric shock, fire, or equipment failure. The LISUN LS9923 Programmable Withstanding Voltage & Insulation Test is a prime example of an advanced instrument in this field, designed to meet the stringent safety requirements of modern – day electrical products.

2. Working Principles of Withstand Voltage Insulation Tester

2.1 Withstand Voltage Testing

The basic principle of withstand voltage testing is to apply a high – voltage signal, either alternating current (AC) or direct current (DC), between the conductive parts and the insulation of an electrical product. For the LISUN LS9923, it can output an AC/DC voltage up to 5.00 KV. When the voltage is applied, if the insulation is insufficient, current will leak through the insulation. The tester monitors this leakage current. If the leakage current exceeds a pre – set threshold (in the case of LS9923, the breakdown current range is AC/DC: 0.10 – 12 mA), it indicates an insulation failure.
The AC withstand voltage test is useful for simulating the normal operating conditions where an electrical product is exposed to alternating current. It can detect insulation weaknesses that might not be apparent under DC testing. DC withstand voltage testing, on the other hand, is often used for products with capacitive elements, as it can charge the capacitors and provide a more accurate assessment of the insulation integrity.

2.2 Insulation Resistance Testing

Insulation resistance testing measures the resistance of the insulation material between different conductive parts of an electrical product. The LISUN LS9923 can output a DC voltage up to 1.00 KV for this purpose. According to Ohm’s law (I=R/V), by applying a known voltage and measuring the resulting current, the insulation resistance (R) can be calculated. The instrument has an insulation resistance range of 1.0 – 2000 MΩ. A high insulation resistance value indicates good insulation quality, while a low value may suggest insulation degradation or contamination.

3. Technical Specifications of LISUN LS9923 Withstand Voltage Insulation Tester

Test Type	Parameter	Specification
Withstanding Voltage	Output Voltage Range	AC/DC Max 5.00 KV
	Output Voltage Accuracy	± (2%+3bits)
	Breakdown Current Range	AC/DC: 0.10 – 12 mA
	Test Time	0 – 999.9 s
	Output Frequency	50Hz/60Hz
Insulation Resistance	Output Voltage Range	DC Max 1.00 KV
	Output Voltage Accuracy	± (2%+3bits)
	Insulation Resistance Range	1.0 – 2000 MΩ
	Insulation Resistance Accuracy	± (5%+3bits) <100MΩ and ± (10%+5bits) >100MΩ
	Test Time	0 – 999.9 s

The accuracy of the output voltage and the measurement of insulation resistance are crucial factors. The ± (2%+3bits) accuracy for output voltage ensures that the applied voltage is within a reliable range, reducing the risk of false – positives or false – negatives in the testing process. The different accuracy levels for insulation resistance depending on the resistance value also contribute to the precision of the testing results.

4. Applications of Withstand Voltage Insulation Tester

4.1 Household Appliances

Household appliances such as refrigerators, washing machines, and microwave ovens need to be tested for electrical safety. The LISUN LS9923 can be used to perform withstand voltage and insulation resistance tests on these appliances. For example, in a refrigerator, the tester can check the insulation between the electrical components and the metal casing. If the insulation fails, there is a risk of electric shock to the user. By ensuring that the appliance meets the safety standards (such as those specified in IEC/EN 60335 – 1:2023/GB 4706.1 – 2024), manufacturers can protect consumers from potential electrical hazards.

4.2 Electronic Instruments and Equipment

In the field of electronic instruments and equipment, such as oscilloscopes, power supplies, and communication devices, the integrity of insulation is essential. A malfunctioning insulation can lead to inaccurate measurements, signal interference, or even equipment damage. The LISUN LS9923 can be used to test the insulation of printed circuit boards, connectors, and other components within these devices. This helps in maintaining the reliability and performance of the electronic instruments and equipment.

4.3 Electronic Components

Electronic components like capacitors, resistors, and integrated circuits also require insulation testing. For instance, a capacitor with a defective insulation layer may short – circuit, affecting the operation of the entire circuit. The withstand voltage insulation tester can identify such faulty components before they are assembled into larger systems. This not only improves the quality of the final product but also reduces the cost of rework and recalls.

4.4 Wires and Cables

Wires and cables are used to transmit electrical power and signals. If their insulation is compromised, it can lead to electrical leakage, short – circuits, and fires. The LISUN LS9923 can be used to test the insulation of wires and cables of different lengths and diameters. By subjecting them to high – voltage stress and measuring the insulation resistance, manufacturers can ensure that the wires and cables meet the safety and performance requirements.

5. Comparison with Traditional Withstand Voltage Testers
Traditional (simulator) withstand voltage testers often use an autotransformer and a high – voltage transformer to perform manual step – up/step – down actions. This manual operation is prone to human error, and the accuracy of the applied voltage may be limited. In contrast, the LISUN LS9923 is a programmable tester. It can be set to automatically apply the desired voltage, control the test time, and make pass/fail judgments based on pre – set parameters.

The traditional testers may also lack advanced functions such as remote control and sound – light alarm. The LISUN LS9923, on the other hand, has these functions, which make it more convenient to use in a production environment. For example, in a large – scale manufacturing plant, operators can remotely control the tester from a central control station, improving efficiency and safety. The sound – light alarm function can immediately alert operators when an insulation failure is detected, reducing the risk of further damage or safety hazards.

6. Standards Compliance
The LISUN LS9923 complies with several international and national standards, including:
• IEC/EN 60335 – 1:2023/GB 4706.1 – 2024 “Household and similar electrical appliances – Safety – Part 1: General requirements”
• IEC 60598:2024/GB 7000 – 2023 “Luminaires – Part 1: General requirements and tests”
• UL 60335:2022 “Standard for Safety of Household and Similar Appliances, Part 1: General Requirements”
• IEC 61008 – 1:2012 /GB – 16916.1 – 2014 “Residual current operated circuit – breakers without integral overcurrent protection for household and similar uses (RCCBs) – Part1: General rules”
• IEC 60060 – 1:2010 /GB/T 24344 – 2009 “High – voltage test techniques. Part 1: General definitions and test requirements”

Compliance with these standards ensures that the testing results obtained from the LISUN LS9923 are reliable and recognized globally. It also enables manufacturers to demonstrate that their products meet the necessary safety requirements when entering different markets.

7. Conclusion
The withstand voltage insulation tester, especially the LISUN LS9923 Programmable Withstanding Voltage & Insulation Test instrument, is an indispensable tool in the electrical and electronic industry. Its ability to accurately test the electrical safety parameters of various products, compliance with international standards, and advanced features such as programmability, remote control, and alarm functions make it a reliable choice for manufacturers and testing laboratories. By using such testers, the industry can ensure the quality and safety of electrical products, protecting consumers from potential electrical hazards and promoting the overall development of the electrical and electronic market. Future developments in this field are expected to focus on improving the accuracy, speed, and functionality of the testers, further enhancing their effectiveness in ensuring electrical safety.
