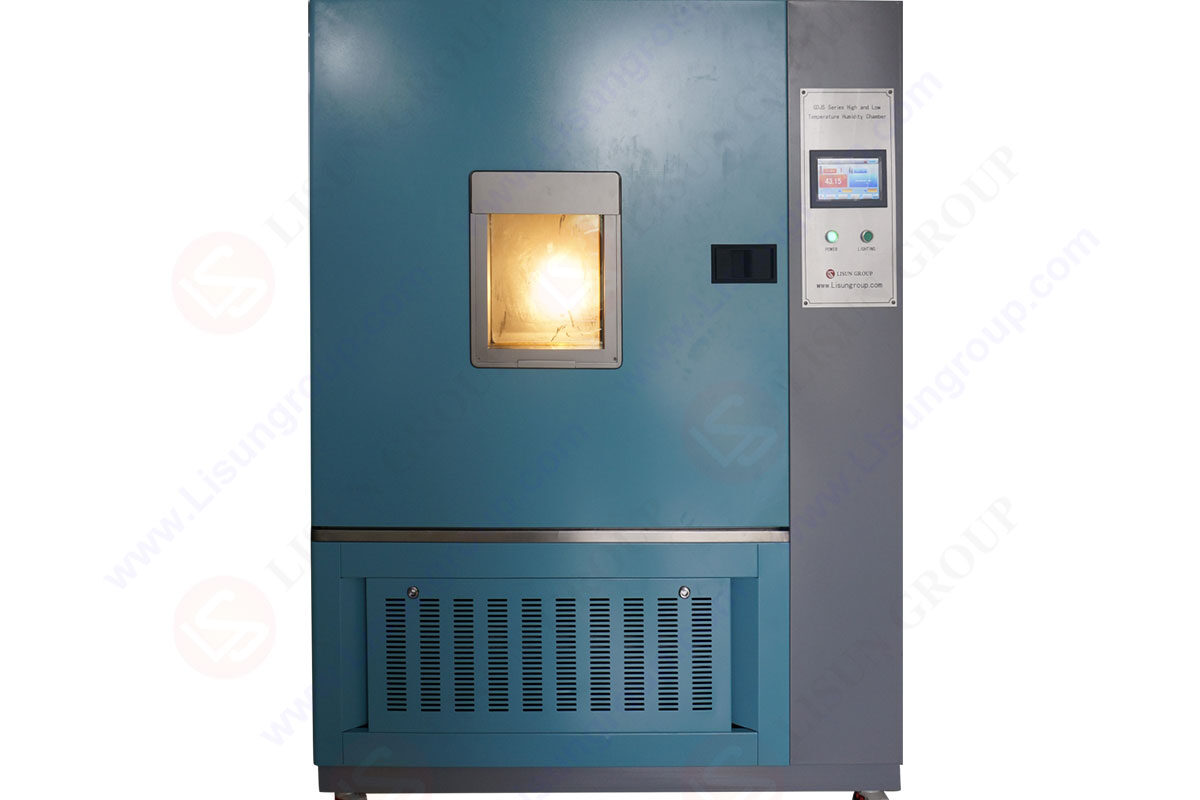

Heating Chamber Technology: A Comprehensive Analysis with LISUN

Introduction

Heating chambers, also known as environmental test chambers, are critical tools in reliability testing, widely employed to simulate extreme climatic conditions such as high temperature, low temperature, and humid heat. These chambers evaluate the performance and durability of electronic products, materials, and components under harsh environments. In industries like aerospace, automotive, electronics, and renewable energy, heating chambers play an indispensable role in ensuring product quality and compliance. LISUN, a leading China-based supplier of EMC and environmental testing equipment, has gained recognition for its high-low temperature and humidity alternating test chambers, such as the GDJS-015B series, known for their precision, versatility, and intelligent design. This article provides a detailed exploration of heating chamber technology, its key features, and practical applications, with a focus on LISUN’s real-world case studies that demonstrate their value in enhancing product reliability and performance.

Technical Principles of Heating Chambers

Heating chambers are designed to precisely control temperature, humidity, and alternating environmental conditions to replicate the extreme climates that products may encounter during real-world use. Their core function is to create stable high-temperature, low-temperature, or humid-heat environments to assess the performance variations of test specimens under diverse conditions. LISUN’s GDJS-015B high-low temperature and humidity alternating test chamber complies with standards such as IEC60068-2-1, IEC60068-2-2, and GB/T2423, making it suitable for a wide range of industry testing requirements.

Working Mechanism

The operational workflow of a heating chamber involves several key processes:
• Heating System: Electric heaters, typically made of nickel-chromium alloy, facilitate rapid temperature increases, with precise regulation achieved through PID control algorithms.
• Cooling System: A compressor-based refrigeration cycle, often using eco-friendly refrigerants like R404A, enables the simulation of low-temperature environments.
• Humidification and Dehumidification: A steam generator produces moisture, while a dehumidification system, such as condensation dehumidification, controls humidity levels within the desired range.
• Circulation Control: High-precision temperature and humidity sensors, coupled with a programmable logic controller (PLC) system, ensure stable and uniform environmental conditions.
• Alternating Testing: Programmed control enables periodic switching between high temperature, low temperature, and humid heat, simulating complex climatic variations.

Key Technical Parameters

The performance of heating chambers is determined by several critical parameters:
• Temperature Range: Typically spanning from -70°C to +150°C. LISUN’s GDJS-015B supports a range of -40°C to +150°C, meeting most testing requirements.
• Humidity Range: From 20%RH to 98%RH, suitable for humid-heat alternating tests.
• Temperature Deviation: Within ±2°C, ensuring reliable test results.
• Temperature Change Rate: Rapid temperature change models can achieve rates up to 5°C per minute, ideal for dynamic testing.
• Control Precision: Temperature and humidity control accuracies of ±0.5°C and ±2%RH, respectively.

Applications of Heating Chambers

Heating chambers are extensively utilized across various industries to ensure product reliability under extreme environmental conditions:
• Electronics: Testing the performance stability of circuit boards, chips, and displays under high-temperature and high-humidity conditions.
• Lighting Industry: Verifying the lifespan and optoelectronic performance of LED and CFL luminaires under extreme conditions, compliant with standards like IES LM-80-08.
• Automotive Industry: Assessing the reliability of in-vehicle electronic components, such as sensors and control modules, in high-low temperature alternating environments.
• Materials Science: Investigating the physical and chemical changes of metals, plastics, and polymers under humid-heat conditions.
• Renewable Energy: Evaluating the aging performance of photovoltaic modules and batteries in high-temperature, high-humidity environments.

Through heating chamber testing, manufacturers can identify potential defects in products under extreme conditions, optimize designs, and ensure compliance with industry standards.

Technical Advantages of LISUN Heating Chambers

LISUN, a company dedicated to the research, development, and production of environmental testing equipment, has earned acclaim for its GDJS-015B high-low temperature and humidity alternating test chamber, which combines exceptional performance with reliability. Below are the key technical advantages of LISUN’s heating chambers:
• High-Precision Temperature and Humidity Control
The GDJS-015B employs advanced PID control algorithms and imported high-precision temperature and humidity sensors, achieving control accuracies of ±0.5°C for temperature and ±2%RH for humidity. An integrated auto-calibration function ensures long-term operational stability, with test results meeting international standards.
• Broad Testing Range
The chamber supports a temperature range of -40°C to +150°C and a humidity range of 20%RH to 98%RH, accommodating diverse testing needs from low-temperature freezing to high-temperature, high-humidity conditions. With a 165L internal capacity, it can handle multiple samples, making it ideal for small to medium-sized laboratories.
• Intelligent Operational Design
Equipped with a 7-inch color touchscreen and a programmable controller, the GDJS-015B allows users to easily configure multi-stage temperature and humidity cycling programs. The chamber supports remote monitoring and data logging, enabling real-time data analysis and enhancing testing efficiency.
• Energy Efficiency and Safety Features
The GDJS-015B incorporates variable-frequency refrigeration technology and high-efficiency insulation materials, significantly reducing energy consumption. Multiple safety mechanisms, including over-temperature protection, leakage protection, and compressor overload protection, ensure safe operation. Its modular design simplifies maintenance, extending the equipment’s lifespan.
• Robust After-Sales Support
LISUN provides comprehensive technical support, calibration services, and training, ensuring that its heating chambers maintain optimal performance over time. This commitment enhances the long-term value of its equipment.

Applications: LISUN Case Studies

To illustrate the practical value of LISUN’s heating chambers, the following case studies highlight their application in real-world testing scenarios, based on verified industry practices.
• LED Luminaire Aging Testing
A prominent Chinese LED lighting manufacturer needed to validate the lifespan and optoelectronic performance of its new LED luminaires under high-temperature, high-humidity conditions to comply with IES LM-80-08 standards. The company selected LISUN’s GDJS-015B heating chamber for testing, with conditions set at 85°C and 85%RH for a continuous 1,000-hour duration. The chamber maintained precise temperature and humidity control, with uniformity better than ±2°C and ±3%RH. Initial tests revealed that some luminaires exhibited excessive light decay under high-humidity conditions. Based on the test data, the R&D team optimized the luminaire’s sealing structure and thermal management design. The improved luminaires passed subsequent tests, securing export certification and enabling deployment in high-temperature, high-humidity regions like Southeast Asia. This case underscores the reliability of LISUN’s heating chambers in lighting industry testing.

• Automotive Electronic Component Testing
An automotive parts supplier developing in-vehicle sensors required assurance of their stability and durability under high-low temperature and humidity alternating conditions. The supplier utilized LISUN’s GDJS-015B heating chamber, configuring a cyclic test with temperatures ranging from -40°C to +85°C and humidity from 20%RH to 95%RH to simulate extreme climatic conditions encountered by vehicles. Test results indicated that some sensors exhibited signal drift under low-temperature, high-humidity conditions. Using the test data, the supplier enhanced the sensors’ circuit board coating process to improve moisture resistance. The optimized sensors passed ISO 16750 standard tests and were successfully integrated into the new energy vehicle market. This case highlights the critical role of LISUN’s heating chambers in ensuring the reliability of automotive electronics.

Best Practices for Heating Chamber Testing

To ensure accurate test results and safe operation, the following best practices should be observed:
• Equipment Calibration: Regularly calibrate temperature and humidity sensors to maintain control precision within standard requirements.
• Sample Placement: Avoid stacking samples or placing them too close to chamber walls to ensure uniform air circulation and consistent temperature and humidity distribution.
• Test Program Configuration: Set temperature change rates and cycle counts according to test standards to prevent sample damage due to rapid temperature variations.
• Safe Operation: Adhere to operational protocols, verify equipment grounding, and inspect protective devices to prevent safety incidents caused by high temperatures or electrical faults.

Future Trends in Heating Chamber Technology

As technology advances and industry demands evolve, heating chamber technology is progressing in several key directions:
• Higher Precision and Rapid Temperature Changes: Meeting the stringent requirements of industries like aerospace for rapid temperature transitions and ultra-precise control.
• Integration with IoT and Smart Systems: Leveraging cloud platforms for remote monitoring, data analytics, and predictive maintenance to enhance testing efficiency.
• Green and Energy-Efficient Design: Adopting new refrigerants and energy-saving technologies to reduce environmental impact and operational costs.
• Multifunctional Integration: Combining temperature and humidity testing with other environmental tests, such as vibration or salt spray, to create comprehensive testing platforms.

LISUN is actively pursuing advancements in intelligent and sustainable design, positioning its next-generation heating chambers to achieve breakthroughs in performance and environmental responsibility.

Conclusion

Heating chambers are vital for ensuring the reliability and safety of products under extreme environmental conditions, with widespread applications in electronics, automotive, lighting, and other industries. LISUN’s GDJS-015B high-low temperature and humidity alternating test chamber, with its high-precision control, broad testing range, and intelligent design, provides efficient testing solutions for its clients. Real-world case studies in LED luminaire and automotive component testing demonstrate the chamber’s critical role in helping manufacturers optimize designs and achieve compliance with international standards. As technological advancements continue, LISUN is poised to lead innovation in heating chamber technology, contributing to the global pursuit of high-quality, reliable, and sustainable products.
