Application Research of Waterproof Test Chambers in the Detection of Enclosure Protection Levels for Electronic and Electrical Products

Abstract
The waterproof performance of enclosure protection levels is a core indicator for measuring the reliability of electronic and electrical products, especially crucial for outdoor LED lighting fixtures and other products that are long-term exposed to complex environments. As a professional testing equipment compliant with international standards, the LISUN JL-X Waterproof Test Chambers rely on differential pressure detection technology and multi-scenario simulation capabilities, and are widely used in certification testing by authoritative testing institutions and quality control processes of relevant enterprises. Combined with IP protection level standards, this paper systematically analyzes the working principle, technical parameters and testing procedures of this waterproof test chambers, verifies its application value through LED lighting fixture testing cases, and provides technical references for waterproof performance testing in the electronic and electrical industry.

1. Introduction
Throughout the entire life cycle of electronic and electrical products, the protective performance of enclosures directly determines the service life and operational safety of the products. According to industry data, over 40% of failures in outdoor electronic equipment are caused by moisture intrusion. Among these, LED lighting fixtures, which are long-term exposed to outdoor environments, are particularly prone to short circuits and light decay due to waterproofing failures. To standardize the evaluation of waterproof performance, the International Electrotechnical Commission (IEC) has formulated the standard IEC 60529 “Degrees of Protection Provided by Enclosures (IP Code)”, and China has simultaneously adopted the national standard GB/T 4208-2017, which specifies nine levels of waterproof protection ranging from IPX0 (no protection) to IPX9K (high-temperature and high-pressure jet protection).

As the core equipment for implementing this standard, waterproof test chambers play a key role in simulating real water environments and accurately determining protection levels. Relying on advanced differential pressure detection technology, the LISUN JL-X Waterproof Test Chambers can cover the full range of waterproof level tests. It has become the main equipment in authoritative testing institutions with CMA/CNAS qualifications such as STT Testing, and also widely serves the quality control processes of LED lighting fixture enterprises, providing authoritative testing support for product market access.

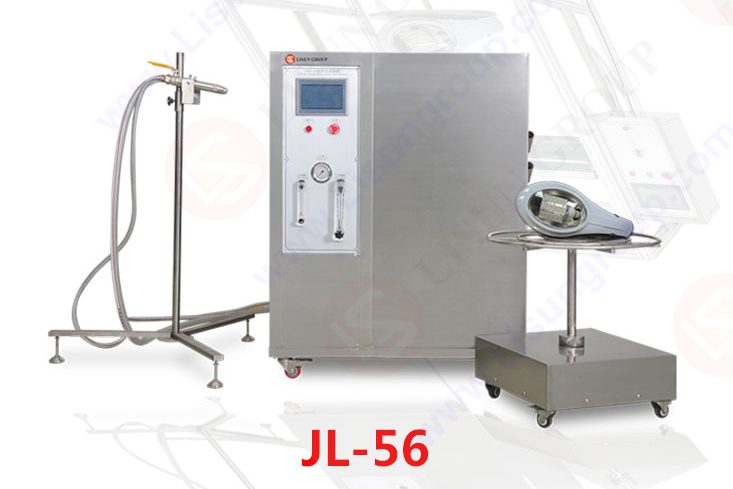

waterproof test Equipment JL-X

2. Technical Principle and Core Parameters of LISUN JL-X Waterproof Test Chambers
2.1 Working Principle
The LISUN JL-X Waterproof Test Chambers are based on the principle of differential pressure air tightness detection, using compressed air as the testing medium to determine waterproof performance through precise control of pressure changes. The core logic is as follows: the product to be tested is placed in a custom-sealed fixture, and the fixture cavity is inflated or deflated through a precision pressure reducing valve to create a preset pressure environment. A high-precision differential pressure sensor is used to real-time monitor pressure changes in the cavity. If there are gaps in the product enclosure, the pressure will fluctuate abnormally due to gas leakage, and the system can determine the sealing performance by comparing with standard thresholds.

Compared with traditional direct pressure detection, this technology effectively avoids interference from ambient temperature and gas source fluctuations, improving the detection accuracy to the level of 0.1Pa and enabling accurate identification of micro-scale gap leakage. This non-destructive testing method is not only suitable for finished product testing, but also can be applied throughout the R&D, trial production and mass production stages of LED lighting fixtures.

2.2 Core Technical Parameters
The parameter design of the LISUN JL-X Waterproof Test Chambers is fully compatible with IP waterproof level standards, and its key technical indicators are shown in the table below:

Through modular design, the system can integrate multiple testing modules such as spray, immersion and condensation. For example, during IPX3/4 level testing, a swing tube nozzle is activated to achieve water spraying within a 60° range at a flow rate of 10L/min; during IPX8 testing, a custom water depth environment of 1-5 meters can be created, with a maximum continuous immersion time of 24 hours, fully meeting the multi-scenario testing needs of products such as LED lighting fixtures.​

3. Application Scenarios and Procedures of LISUN JL-X Waterproof Test Chambers​
3.1 Application in Certification Testing by Authoritative Testing Institutions​
In third-party testing institutions with CNAS qualifications, the LISUN JL-X Waterproof Test Chambers are the core equipment for IP certification. Taking the IP65 certification of outdoor LED lighting fixtures as an example, the standard testing procedure is as follows:​
• Preprocessing Stage: Place the LED lighting fixture samples in a standard environment of 15-35℃ for 2 hours to ensure the surface is dry and the functions are normal. At the same time, check the cleanliness of the test system’s nozzles and the pressure calibration status.​

• Dustproof Test Linkage: First, complete the IP6X test through the dustproof module integrated in the system (vacuum negative pressure ≤2kPa, talcum powder particle size ≤75μm, duration 8 hours). After confirming no dust intrusion, proceed to the waterproof testing stage.​

IPX5 Waterproof Test: Activate the low-pressure jet module of the system, use a 6.3mm nozzle, and spray water to all directions of the lighting fixture at a flow rate of 12.5L/min from a distance of 3 meters, focusing on monitoring key parts such as wire connection ports and heat dissipation gaps.​

• Result Determination: After the test, disassemble the samples, combine the pressure change curve recorded by the system with visual inspection. If there is no water seepage inside and the components function normally, the product is deemed qualified. Finally, a test report compliant with IEC 60529 standard is generated.​
With the help of this system, an LED lighting fixture enterprise completed the IP65 certification in only 2 weeks, successfully entered the European and American markets and obtained international bidding orders, which confirms the system’s advantage in certification efficiency.​

3.2 Application in Enterprise Quality Control​
In the quality inspection workshops of LED lighting fixture manufacturing enterprises, the LISUN JL-X Waterproof Test Chambers are mainly used for random inspection during mass production and factory inspection. Different from certification testing, enterprise applications focus more on testing efficiency and cost control, and usually adopt the following optimized procedures:​
• Sampling Plan: Implement double sampling in accordance with GB/T 2828.1 standard, with an AQL value of 1.0 to ensure the quality stability of bulk products.​
• Rapid Testing Mode: For IPX5 level testing, optimize the spray time to 1 minute. Through the system’s rapid pressure balance algorithm, the testing accuracy can still be guaranteed, and the testing cycle for a single sample is shortened to less than 5 minutes.​
• Data Traceability: The system can automatically store test data of each batch, including pressure curves, test time, operators and other information. It supports connection with the enterprise’s MES system to realize full-process traceability of quality issues.​

After introducing this system, a lighting fixture factory in Guangdong reduced the unqualified rate of waterproof performance from 3.2% to 0.8%, and customer complaints decreased by 60%, which fully reflects its practical value in quality control.​

4. System Advantages and Industry Value​
4.1 Core Technical Advantages​
Multi-standard Compatibility: The system strictly complies with more than 10 international and domestic standards such as IEC 60529 and GB 7000.1, which can meet the market access requirements of different regions, especially adapting to the special standard requirements of LED lighting fixtures.​

High Precision and Efficiency: The combination of differential pressure detection technology and automated control not only ensures a detection accuracy of 0.1Pa, but also controls the IPX8 testing cycle within 30 minutes, balancing accuracy and efficiency.​

Customization Capability: It supports custom fixture design according to product size. For special scenarios such as high-temperature and high-humidity environment simulation, a condensation testing module can be added to adapt to diversified testing needs.​

4.2 Industry Application Value​
From the perspective of industry development, the application of LISUN JL-X Waterproof Test Chambers has promoted the standardization process of waterproof testing in the electronic and electrical industry. On the side of testing institutions, it has improved the authority and credibility of IP certification, and the issued reports are recognized by more than 100 countries around the world; on the side of enterprises, it enables early detection of enclosure sealing defects through precise testing, reducing the after-sales maintenance costs and recall risks of products.​

For the LED lighting fixture industry, this system effectively solves the problem of verifying the waterproof performance of outdoor products and helps enterprises break through international technical barriers. According to statistics, for lighting fixture enterprises using this system, the average service life of outdoor products has been extended by 2-3 years, and their market competitiveness has been significantly improved.​

5. Conclusions and Prospects​
Through differential pressure detection technology and modular design, the LISUN JL-X Waterproof Test Chambers have built a waterproof testing solution covering the full range of IPX1-IPX9K levels. Its applications in certification testing by authoritative testing institutions and quality control of enterprises fully prove its technical advancement and practical value. This system not only meets the waterproof performance testing needs of electronic and electrical products such as LED lighting fixtures, but also promotes the improvement of the overall protection level of the industry.
