16 Dec, 2022 2439 Views Author: Cherry Shen

What are the requirements of the standards and methods for Dust Proof Chamber

Dust proof chamber is also known as sand dust test chamber, dust resistance tester, sand dust test chamber and other different names. It tests the physical and other related properties of products under the simulated powder environment.

video

Requirements for working principle of dustproof chamber: the dustproof test chamber is a powder circulating pump in a closed test chamber that can be replaced by other methods that can suspend talcum powder.

Sand and dust requirements:
The dust shall be dry talcum powder, which shall be filtered by metal square hole sieve. The linear diameter of the wire is 50 μ m. The mesh size is 75 μ m。 The amount of talcum powder shall be 2kg/m3, and the number of uses shall not exceed 20.

Standard technical parameters of dustp roof chamber:
1. Inner box size: about 800mm long * 800mm deep * 800mm high
2. External dimension: about 1250mm long * 1050mm deep * 1755mm high
3. Standard wire diameter of metal screen: 50um
4. Standard spacing between lines: 75um
5. Amount of talcum powder: 2 ～ 4kg/m ³
6. Test dust: dry talcum powder
7. Dust suppression method: free dust suppression
8. Total time of vibration and test 0-999999min (adjustable)
9. Timing accuracy: ± 1s
10. Vacuum gauge range: 0-10Kpa (adjustable)

What are the requirements of the standards and methods for Dust Proof Chamber

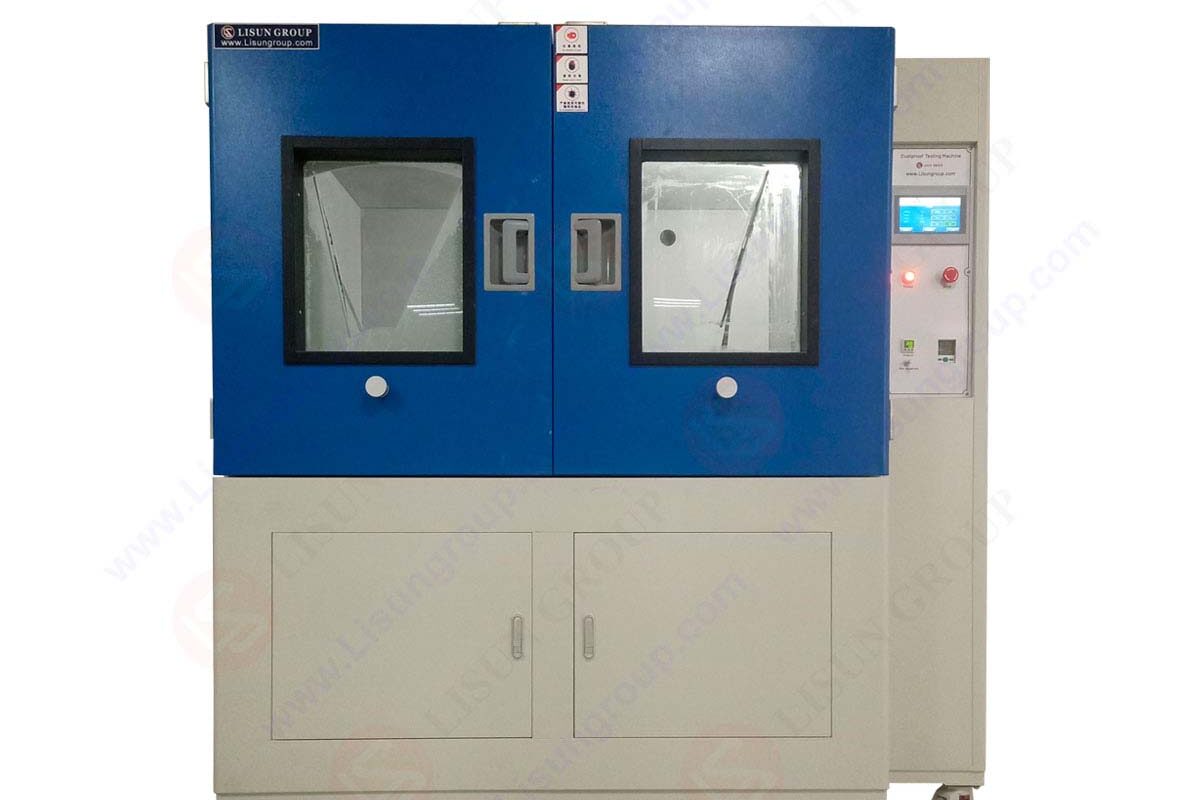

SC-015 Dustproof test chamber

The dust proof tester can comply with IEC60529:1989+A1:1999+A2:2013 Degrees of protection provided by enclosures (IP Code), GB/T4208-2017 Degrees of Protection by Enclosures (IP Code) and other parameters.

What are the requirements of the standards and methods for Dust Proof Chamber

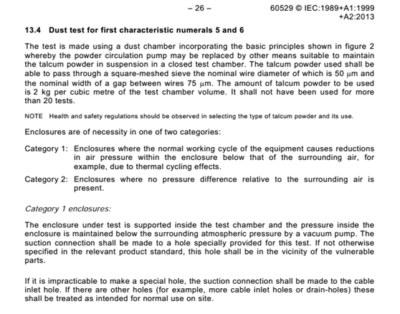

IEC60529

The dust proof chamber has two different test methods. The first is that when the air pressure in the chamber is lower than the ambient atmospheric pressure, the vacuum pump is used to keep it lower than the atmospheric pressure due to the thermal cycling effect, and the air extraction air should be connected to the hole specially set for the test.

The second type: when the air pressure in the enclosure is the same as the ambient air pressure, the tested enclosure shall be put into the test chamber according to the normal working position, but not connected to the vacuum pump. The drain hole opened during the test shall be kept open, and the test duration shall be 8h.

What is the blowing time of the dust proof chamber?
1. Dust blowing: when no specified value is available, the dust blowing wind speed includes 1.5m/s allowable low wind speed required to maintain test conditions and 8.9m/s high speed of typical desert wind.
2. Dust reduction: the wind speed used to disperse the dust in the air above the test piece can be used to ensure that the wind speed at the test piece does not exceed 0.2m/s. The wind speed of 0.2m/s only raises dust to suspend it in the air and slowly settle to the upper surface of the test piece.
Of course, it is mainly determined according to the user’s test requirements for the product. If there is no specified time or limited time, the dust blowing time (stop and blow): the continuous and periodic dust blowing can be set at any time; Vibrating time: vibration and vibration stop time are automatically alternated; In addition, the test time can be preset: the maximum test time is 99 hours and 59 minutes.

LISUN lauched SC-015 Dust-proof Test Chamber (Sand Dust Chamber) is applied to physical and other related performance tests for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products under simulated dust climate conditions. After the measurement, it is judged whether the performance of the product meets the requirements through verification, so as to facilitate the design, improvement, verification and factory inspection of the product. Comply meets IEC60529:1989 +A1:1999 +A2: 2013 <Degrees of protection provided by enclosures (IP Code)>,IEC60598-1,  GB2423.37-89 (Test L: dust test methods), GB4208, GB/T 4942.2-93(protective casing grade of low-voltage apparatus), GB7000.1 <Luminaires Part 1: General Requirements and Tests> 9.2.1, 9.2.2 and Figure 6, DIN40050 and IP5K0. The dust test chamber is applicable to the IP5X and IP6X dustproof test of the products.

What are the requirements of the standards and methods for Dust Proof Chamber

Dustproof Testing Machine SC-015

Lisun Instruments Limited was found by LISUN GROUP in 2003. LISUN quality system has been strictly certified by ISO9001:2015. As a CIE Membership, LISUN products are designed based on CIE, IEC and other international or national standards. All products passed CE certificate and authenticated by the third party lab.

Our main products are Goniophotometer, Integrating Sphere, Spectroradiometer, Surge Generator, ESD Simulator Guns, EMI Receiver, EMC Test Equipment, Electrical Safety Tester, Environmental Chamber, Temperature Chamber, Climate Chamber, Thermal Chamber, Salt Spray Test, Dust Test Chamber, Waterproof Test, RoHS Test (EDXRF), Glow Wire Test and Needle Flame Test.

Please feel free to contact us if you need any support.
Tech Dep: Service@Lisungroup.com, Cell/WhatsApp:+8615317907381
Sales Dep: Sales@Lisungroup.com, Cell/WhatsApp:+8618117273997
