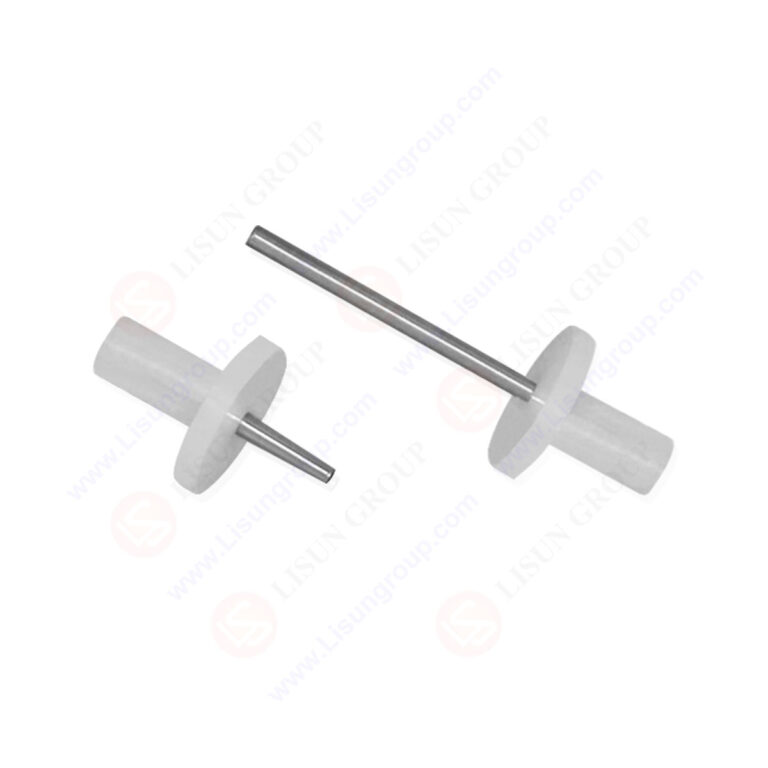

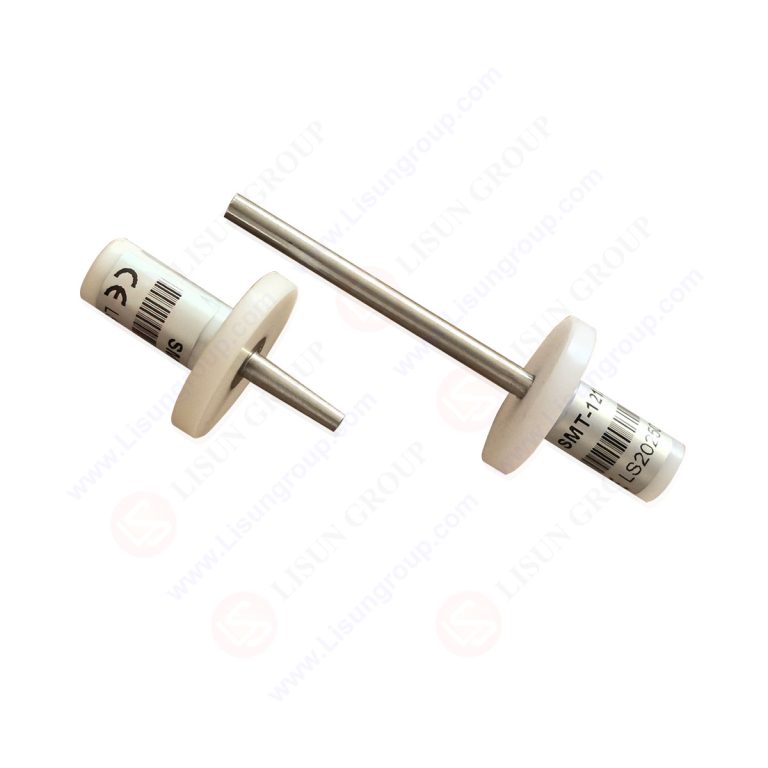

Test Pin of IEC 61032 Figure 8 and 9

1) Long Test Pin of IEC61032 Figure 8: LISUN model is SMT-1212

– Test Probe 12 This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.

2) Short Test Pin of IEC61032 Figure 9: LISUN model is SMT-1213

– Test Probe 13 This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536).

Long Test Pin of IEC61032 Figure 8

Short Test Pin of IEC61032 Figure 9
