LISUN WS-1 Temperature Rise Tester – After Sales Questions and Answers

Temperature Rise Tester is designed and manufactured according to IEC60884-1, IEC884－1, GB2099.1-2008 and other relevant standard of electrical accessories.

Applied to test electrical accessories heating conditions when connected to load current, whether the temperature rise of electrode is compliance with standard requirement or not. And it can effectively detect whether the plug bush is slants thin and whether plug and socket cooperated with all right.

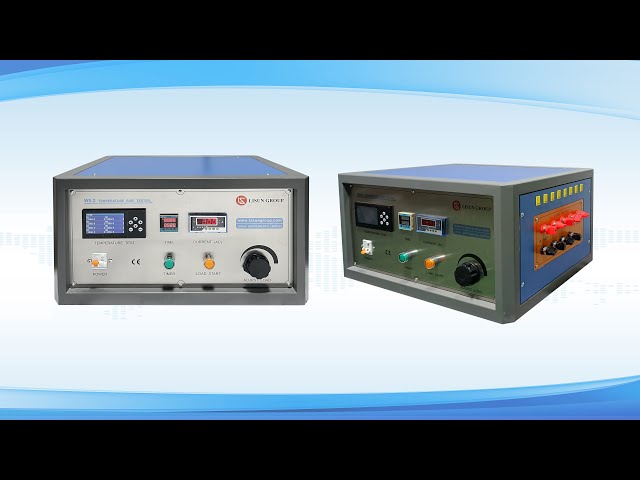

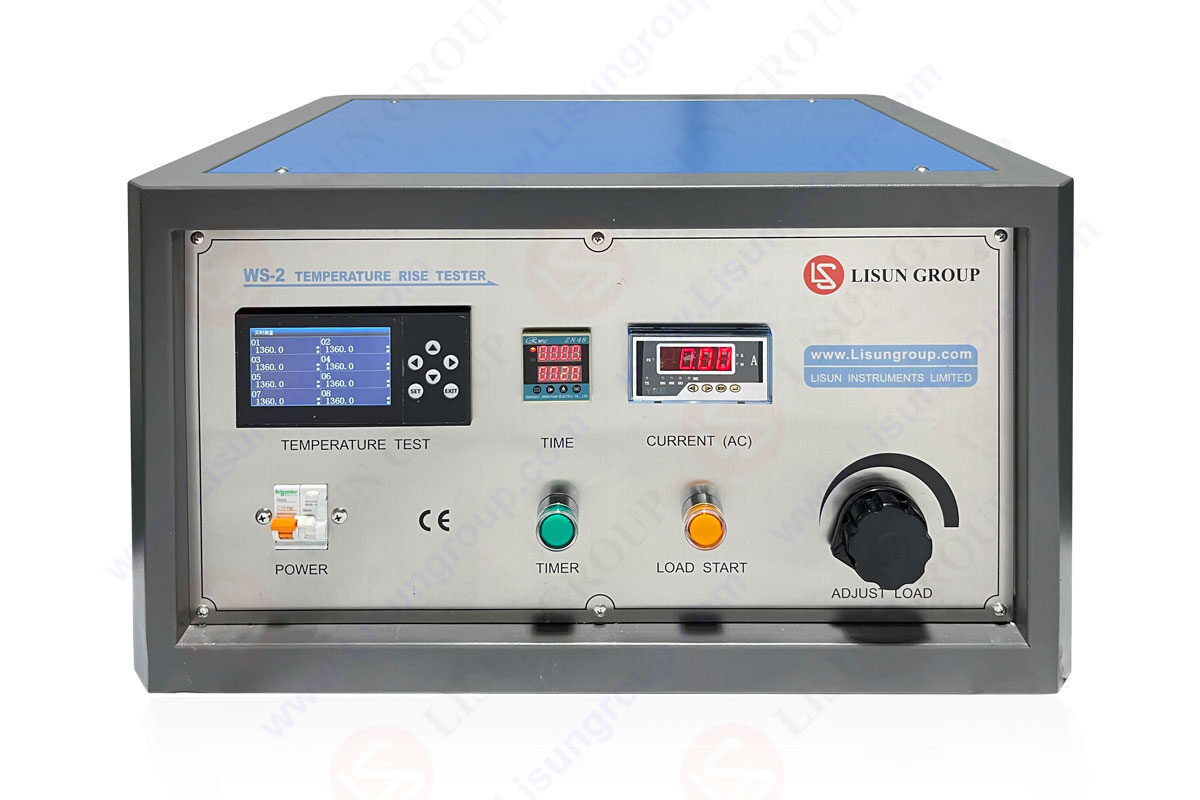

This equipment consists of current adjustment control part and temperature sampling measurement part.

Specification:
• Output current: AC 0~100A (0.5class);
• Temperature range: 0~100℃ ±1℃

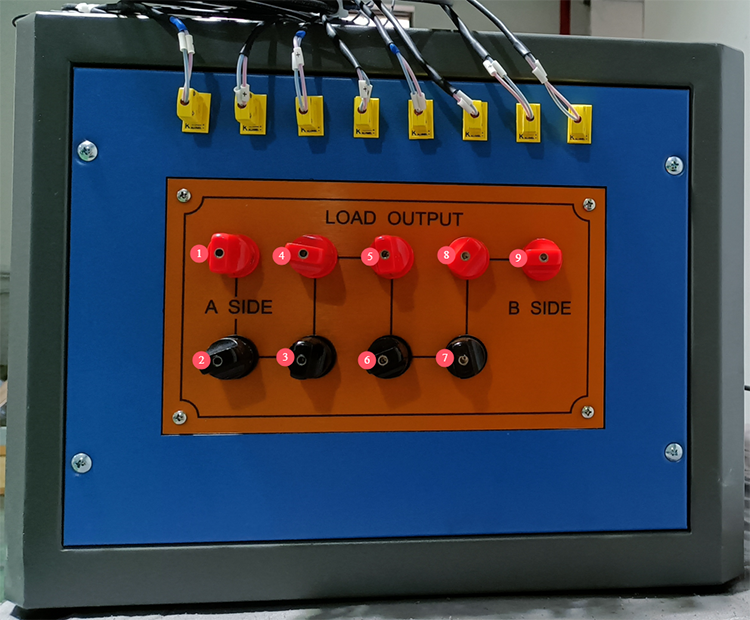

• Measuring point: 8 locations
• Power supply: AC220V 50Hz 5A
• Instrument preheating time: approx.15 min.

Q1: Abnormal temperature display
A1: Please confirm that the thermocouple is attached to the insulation position. If it needs to be attached to live parts, insulation tape needs to be used to separate the thermoelectric coupling.

Q2: Is the large AC test current generated by the equipment dangerous
A2: According to the standard, it is necessary to use high current for testing. The device is equipped with a voltage regulator that outputs low voltage and high current. If accidentally touched, it will not have serious consequences. But it is still necessary to pay attention to safe operation and avoid electric shock.
