What is a ESD test?
The static electricity generated by the human body to the object or between two objects may cause the electrical and electronic equipment circuits to malfunction or even be damaged. The ESD generator is designed for the withstanding ESD performance measurement for the assessment of electrical and electronic equipment. ESD61000-2/ESD61000-2A has a LCD touch screen in both English and Chinese.

video

Q1: The ESD61000-2 can’t be powered on.
A1: There is a fuse at the power socket of the ESD61000-2 and MOVs inside. The power input of the ESD61000-2 requires a stable and correct voltage, otherwise it may cause the fuse to burn out or the MOV to burn out. Please replace the corresponding fuse or MOV.
The fuse can be removed from the outside of the ESD61000-2, at the power socket:

LISUN ESD61000-2 ESD Simulator Guns – After-sales Frequently Asked Questions (FAQ)

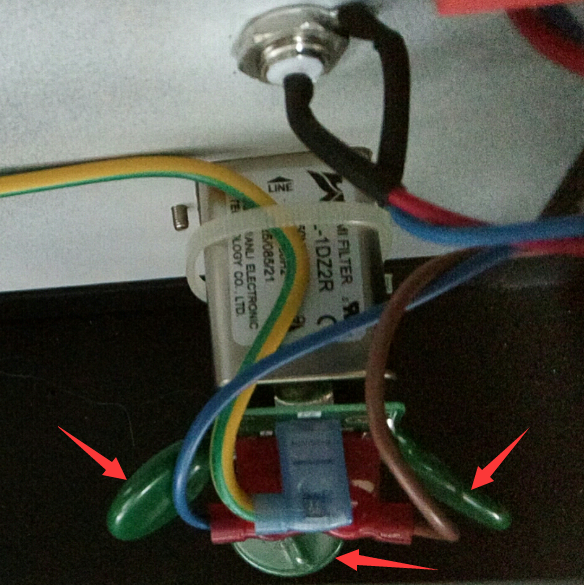

The MOVs are on the internal part of the power socket. You need to remove the cross screw on the outside of the power socket and take out the power socket to see:

LISUN ESD61000-2 ESD Simulator Guns – After-sales Frequently Asked Questions (FAQ)

Q2: Test environment and test methods for ESD testing.
A2: The manual only focuses on the operation of the ESD61000-2 product itself and introduces conventional ESD testing methods. Regarding the standard test environment and test methods for different EUTs, please must refer to IEC61000-4-2 and other related industry standards.



Q3: How to view ESD waveform?
A3: The bandwidth of the oscilloscope shall not be less than 2.5GHz. It shall be equipped with a discharge target, a pulse coaxial attenuator and several other accessories. The total cost is about 20k USD. Therefore, the customer is not recommended to perform this operation by himself. If the customer wants to view the ESD waveform, LISUN can provide the factory data. Or the customer can send the ESD61000-2 to a third-party testing agency.
