With the rapid advancement of power electronics technology, electric motors have become indispensable components across various industries including manufacturing, transportation, and household appliances. However, during operation, these motors are often subjected to transient overvoltage events known as surges. These surges can originate from lightning strikes, switching operations, grid disturbances, or electrostatic discharges, posing significant risks to motor performance and system integrity. To ensure both safety and reliability, comprehensive surge testing has evolved into a critical process in product development, quality control, and regulatory compliance.
This article provides an in-depth exploration of the technical features, functional advantages, and real-world applications of the electric motor surge tester developed by LISUN, a leading manufacturer in the field of electrical testing equipment. The LISUN motor surge tester offers high-precision measurement capabilities, multi-functional test simulation, automated operation, and robust safety protections, making it an ideal choice for manufacturers, R&D institutions, and quality assurance departments.
Through detailed analysis and practical case studies, this paper highlights how LISUN’s motor surge tester contributes to enhanced product reliability, reduced failure rates, and improved energy efficiency across multiple application domains such as industrial automation, new energy vehicles, and consumer electronics.

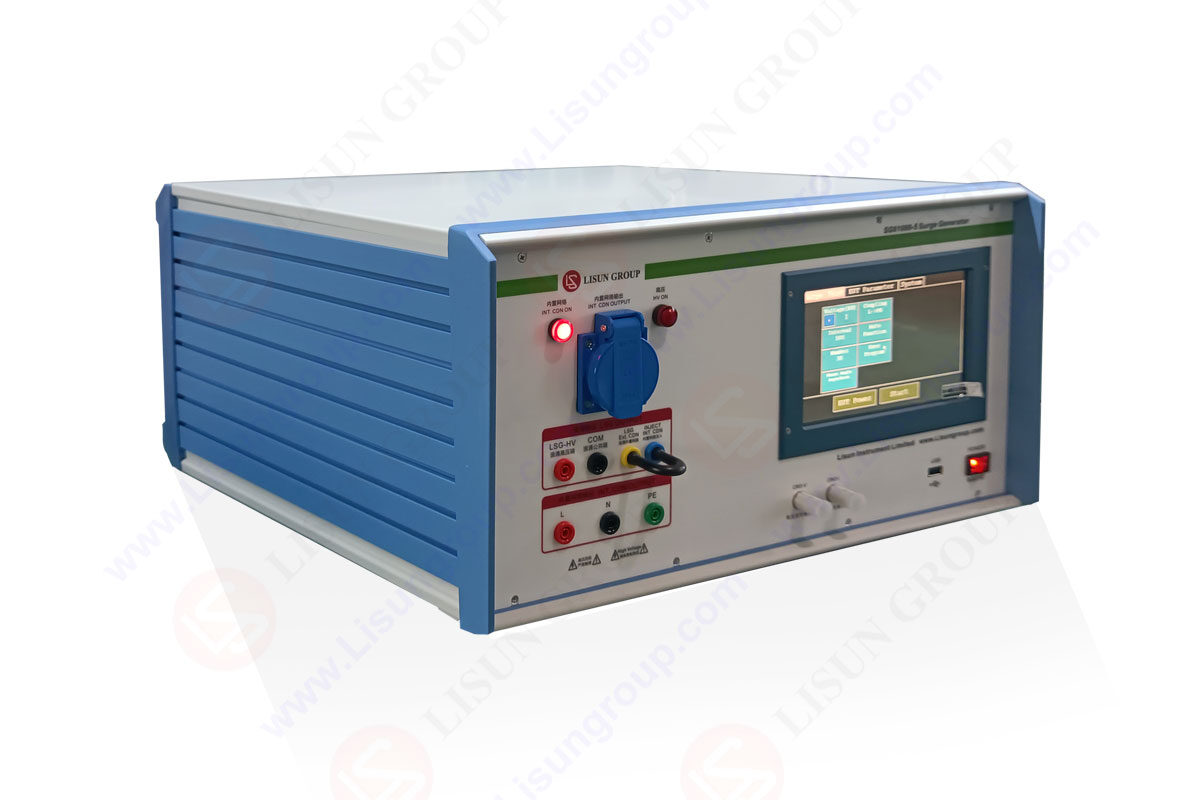

Surge Generator SG61000 5 AL5
Electric motors serve as the backbone of modern industrial processes, transportation systems, and everyday home appliances. Their operational consistency and long-term reliability are crucial not only for productivity but also for safety and sustainability. One of the most overlooked threats to motor performance comes in the form of transient voltage surges, short-lived but potentially damaging voltage spikes that can compromise internal insulation, circuitry, and overall motor function.
Surge-related failures often occur due to external environmental factors such as lightning-induced voltage fluctuations or internal causes like switching transients in power systems. Without proper testing and protection measures, even small surges can accumulate over time, degrading insulation layers and ultimately leading to motor burnout or catastrophic failure.
To mitigate these risks, electric motor surge testing has become an essential practice. It involves simulating real-world surge conditions under controlled laboratory settings to evaluate a motor’s ability to withstand such stresses without sustaining damage. This proactive approach allows engineers to identify weak points in design, validate protective mechanisms, and ensure conformity with international safety standards.
Among the many tools available for this purpose, LISUN motor surge tester stands out for its advanced technical specifications, user-friendly interface, and cost-effective performance. Developed by LISUN, this device integrates cutting-edge technologies to deliver precise, repeatable, and actionable results.
Technically surge referred to as transient overvoltage, is a brief but intense spike in voltage that exceeds the normal operating levels in an electrical system. Surges typically last from microseconds to milliseconds, yet they can carry enough energy to cause irreversible damage to sensitive electronic components.
These voltage anomalies may arise from various sources
• Natural Causes: Lightning strikes near power lines can induce large voltage surges.
• Switching Operations: Rapid switching of inductive loads (e.g., transformers, large motors) generates electromagnetic interference.
• Electrostatic Discharge (ESD): Static electricity accumulated in machinery or human contact can discharge suddenly.
• Grid Instabilities: Voltage fluctuations due to unstable power supply or faulty equipment.
In the context of electric motors, surges can lead to insulation breakdown, winding short circuits, and permanent magnetic rotor degradation—all of which contribute to early motor failure.
The effects of surges on electric motors are both immediate and cumulative. Upon exposure to a high-voltage spike, the following issues may arise
• Insulation Degradation: Repeated surges weaken insulating materials between windings and core, increasing the risk of internal shorts.
• Bearing Damage: High-frequency currents induced by surges can pass through motor bearings, causing premature wear and mechanical failure.
• Electronic Component Failure: In variable frequency drives (VFDs) and other smart motor controllers, integrated circuits may be damaged, disrupting motor control and feedback systems.
• Reduced Lifespan: Even minor surges reduce the expected operational life of a motor, increasing maintenance costs and downtime.
Therefore, implementing rigorous testing procedures using reliable tools like the LISUN motor surge tester becomes vital to safeguarding motor performance and ensuring compliance with industry-specific standards.
At the heart of the LISUN motor surge tester is its high-precision sensing and data acquisition system, capable of capturing and analyzing surge characteristics with exceptional accuracy. Key measurable parameters include:
• Peak Voltage
• Rise Time
• Pulse Duration
• Waveform Energy
• Polarity and Repetition Rate
These parameters provide valuable insights into the nature of surge events and help engineers determine whether a motor meets required insulation and performance thresholds. The integration of spectrally corrected sensors ensures minimal signal distortion, allowing for accurate reproduction of real-world surge profiles.
Moreover, the LISUN instrument supports real-time waveform display, enabling users to visually monitor surge behavior and adjust test parameters accordingly.
One of the standout features of the LISUN motor surge tester is its multi-mode simulation capability, which allows it to replicate different types of surge waveforms defined by international standards. These include
• Single Pulse Mode: Simulates isolated surges caused by direct lightning strikes.
• Burst Pulse Mode (Fast Transient Bursts): Mimics repetitive surges resulting from switching operations.
• Combined Waveform Mode: Emulates complex surge profiles involving both slow rise times and high peak voltages, as seen in IEC 61000-4-5 standard tests.
This versatility makes the LISUN platform suitable for a wide range of testing scenarios—from basic production line quality checks to advanced research and development projects.
Additionally, the tester supports custom waveform generation, allowing users to define specific test profiles based on their unique application requirements.
The LISUN motor surge tester is equipped with a fully digital control system, offering a highly automated workflow. Users can set up test sequences, configure voltage levels, trigger pulses, and log results—all from a centralized software interface. Some of the key automation benefits include
• Predefined Test Sequences: Standardized test protocols can be saved and reused, ensuring consistency across batches.
• Auto-Calibration Function: Ensures measurement accuracy over time without manual intervention
• Data Logging and Reporting: Real-time data is stored automatically and can be exported in common formats (CSV, Excel, PDF) for documentation purposes.
• Remote Control via USB/Ethernet: Facilitates integration with larger test environments and enables remote monitoring.
By reducing the need for manual adjustments and oversight, the LISUN tester significantly enhances efficiency and repeatability, especially in high-volume production or certification testing.
Safety is a top priority when conducting high-voltage surge tests. The LISUN motor surge tester incorporates multiple layers of safety features, including
• Overvoltage Protection: Automatically cuts off output if voltage exceeds safe limits.
• Overcurrent Detection: Prevents excessive current flow that could damage the DUT (Device Under Test).
• Leakage Current Monitoring: Detects abnormal current paths and halts testing immediately.
• Ground Fault Circuit Interrupter (GFCI): Protects operators from electric shock.
• Isolation Transformers: Provide galvanic separation between input and output for added safety.
These built-in safeguards not only protect personnel but also prevent costly damage to expensive test fixtures and devices.
Compared to traditional analog or semi-automated surge testers, the LISUN model offers superior measurement accuracy and repeatability. Its digitally controlled pulse generation and high-resolution sensors eliminate drift and calibration errors, providing consistent results across multiple test cycles.
Moreover, LISUN’s instruments conform to global standards such as IEC 61000-4-5, EN 61000-6-3, further enhancing their credibility in regulatory and certification contexts.
LISUN motor surge tester is designed with user experience in mind. Its intuitive GUI (Graphical User Interface) presents all controls in a clear, organized layout, making it accessible even to non-expert users. Additionally, LISUN provides comprehensive training resources, including video tutorials, user manuals, and online support.
From an integration standpoint, LISUN’s system supports plug-and-play connectivity with PCs, SCADA systems, and cloud-based data platforms, facilitating seamless incorporation into existing quality control workflows.
While many high-end surge testers come with prohibitive price tags, LISUN delivers top-tier performance at a competitive cost. By leveraging domestic engineering expertise and streamlined manufacturing practices, LISUN offers products that match or surpass the functionality of imported alternatives—at a fraction of the cost.
This cost-efficiency is particularly beneficial for SMEs (small to medium enterprises), startups, and educational institutions that require precision testing solutions without breaking the budget.
Another major advantage of the LISUN motor surge tester is its modular architecture, which allows for easy upgrades and customization. Optional modules include
• Temperature Compensation Sensors: Adjust test results based on ambient temperature variations.
• Humidity Monitoring Add-ons: Evaluate the impact of environmental moisture on motor insulation.
• Wireless Communication Modules: Enable remote access and mobile control.
• Custom Software Plugins: Extend functionality for specialized applications.
This modular expandability ensures that LISUN’s solution remains relevant and adaptable as testing needs evolve over time.
In manufacturing plants, electric motors drive everything from conveyor belts to CNC machines. Regular surge testing helps identify potential insulation weaknesses before deployment, preventing unexpected breakdowns and costly downtime. LISUN’s motor surge tester is widely used in
• Automotive Production Lines
• Textile Machinery Factories
• Food Processing Equipment Plants
Its compact size and ease of setup make it ideal for on-site maintenance checks and in-process quality inspections.
With the global push toward electrification, the automotive industry places immense importance on motor reliability in electric vehicles (EVs). LISUN’s surge tester plays a critical role in evaluating the durability of traction motors under simulated road conditions and charging cycle stress.
Key EV-specific applications include
• Traction Motor Validation
• Battery Management System Compatibility Tests
• Charging Port Electromagnetic Interference Testing
By integrating LISUN’s testing platform early in the R&D phase, manufacturers can accelerate product development while ensuring compliance with ISO 6469, SAE J2992, and other EV safety standards.
Even seemingly simple devices like washing machines, air conditioners, and refrigerators rely on efficient motor operation. LISUN’s motor surge tester helps appliance manufacturers ensure that motors can withstand surges caused by frequent power cycling or poor electrical infrastructure in certain regions.
Common use cases include
• Motor Insulation Integrity Testing
• Endurance Testing Under Simulated Grid Fluctuations
• Product Certification for CE, RoHS, and ENERGY STAR Standards
Thanks to its compact footprint and low learning curve, LISUN’s equipment is also popular among third-party testing labs serving OEMs and ODMs.
• Large Steel Plant Implements LISUN Surge Tester
A steel manufacturing facility was experiencing recurring motor failures due to unexplained insulation breakdowns. After identifying frequent voltage surges as the root cause, the plant introduced the **LISUN motor surge tester** to evaluate all incoming motors prior to installation.
Using the tester’s burst pulse mode, technicians were able to simulate real-life switching transients commonly found in heavy industrial environments. Based on the results, several batches of motors were flagged for insulation reinforcement, and new surge protection devices were installed at critical junctions.
Post-intervention, the motor failure rate dropped by over 60%, resulting in substantial savings in repair costs and increased uptime.
• EV Manufacturer Verifies Motor Durability with LISUN
An emerging electric vehicle startup needed to certify its newly designed hub motor for commercial release. The company adopted LISUN’s motor surge tester to perform comprehensive surge immunity testing, replicating conditions experienced during fast-charging, regenerative braking, and sudden load changes.
The LISUN system allowed engineers to adjust voltage levels and waveform shapes in real time, closely mimicking real-world stress scenarios. Moreover, the integrated reporting module enabled automatic generation of test certificates accepted by regulatory bodies.
As a result, the company successfully obtained national and international certifications, launching its EV model ahead of schedule and earning positive market feedback.
In summary, the LISUN Electric Motor Surge Tester represents a powerful, versatile, and cost-effective solution for ensuring the reliability and longevity of electric motors across a wide range of applications. With features such as high-precision measurement, multi-function simulation, automation, and robust safety mechanisms, LISUN’s platform addresses the critical challenges faced by manufacturers, researchers, and quality assurance professionals alike.
Whether deployed in industrial automation, new energy vehicles, or home appliance testing, the LISUN surge tester empowers users to proactively detect vulnerabilities, optimize designs, and meet stringent global standards.
As the demand for smarter, more resilient electric motors continues to grow, LISUN remains committed to innovation and excellence—providing tools that enable safer, more sustainable, and higher-performing electrical systems worldwide.
