How can you use LISUN’s ESD Stimulator Gun (ESD61000-2) to perform the ESD test

An electrostatic discharge generator gun, or ESD stimulator gun , is an instrument widely used for ESD testing. Due to its portability and compact size, an ESD simulator can be used in a number of situations. ESD guns are programmable and can detect voltages between 16 kV and 30 kV. This article will explain what ESD stimulator guns are, how they work, and how to use them to perform  ESD tests .

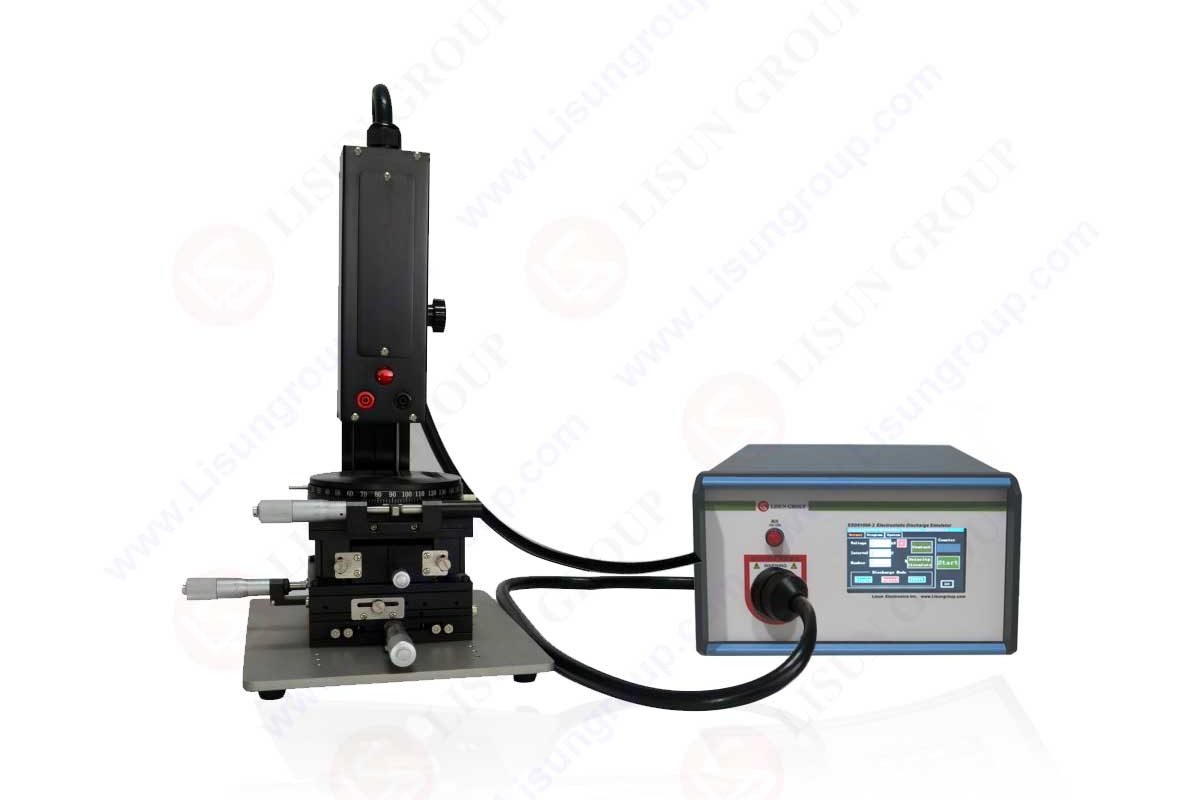

ESD Stimulator Gun (ESD61000-2)

ESD guns also commonly referred to as ESD simulators are used for ESD testing. These simulators are widely utilized to resolve and perform numerous tasks. In order to meet global ESD testing standards, the ESD gun  was created to be quick and adaptable. Electrostatic discharge tests can be performed using the ESD test gun on a variety of electrical and electronic devices while also assuring test comparability and repeatability. LISUN has manufactured the best electrical equipment. LISUN’s ESD gun is in full compliance with IEC 61000-4-2, EN61000-4 -2, ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322.

ESD test

It is well established that electrical and electronic equipment circuits may break down or even become destroyed as a result of static electricity produced by the human body near an object or between two things. The ESD generator is intended for the examination of electrical and electronic equipment’s ability to tolerate ESD. This in the simplest of words is what ESD testing is. Both an English and a Chinese LCD touch screen are available on the ESD61000-2/ESD61000-2A.

When trying to maintain an electrostatic protected area, monitoring the efficiency of your equipment is essential. When a device loses its antistatic characteristics, an ESD test can identify it. This promotes the security of workers and machinery. Regular testing of antistatic equipment enables one to identify any urgent issues with the equipment and repair them as soon as feasible. The sooner an issue with antistatic equipment is discovered, the better one will be able to take measures to stop further injury or damage from happening. This will ultimately save time, money , and costly replacements.

What is an ESD Stimulator Gun used for?

In order to conduct an electrostatic discharge test on electrical and electronic equipment, an electrostatic discharge simulator gun, also known as an ESD test gun , is utilized. It is employed for the purpose of indicating test levels, waveform specifications, and equipment design. An The electrostatic simulator discharge’s highest electrostatic voltage is 30 kV, which is enough to satisfy the harshest standard grade electrostatic voltage requirement. The ESD test gun can be used to check for electrostatic discharge on most electrical and electronic equipment, helping to ensure test comparability and repeatability.

Moreover, when trying to maintain an electrostatic protected area, monitoring the efficiency of your equipment is essential. When a device loses its antistatic characteristics, an ESD test can identify it. This promotes the security of workers and machinery. Regular testing of antistatic equipment enables one to identify any urgent issues with the equipment and repair them as soon as feasible. The sooner an issue with antistatic equipment is discovered, the better one will be able to take measures to stop further injury or damage from happening. This will ultimately save time , money, and costly replacements.

How can LISUN’s ESD simulator gun be used to perform ESD tests?

An electric jolt from a door handle, a crackling sweater hair that protrudes directly from your skull. When static electricity discharges, we are more accustomed to seeing it. Electrostatic Discharge, also known as ESD, is this phenomenon.

Testing for electrostatic discharge (ESD) is referred to as an EMC test for electrical products. The standard used on the equipment being tested specifies the ESD signal with a voltage level. The signal or waveform is produced by these weapons. The waveform specified in the applicable ESD standard is produced by the gun. Prior to the ESD testing, their calibration confirms the accuracy of ESD guns.

The gun is connected to an air or contact tip, and discharge is applied to the chosen gun sites. ESD Simulators (61000-2) are utilized for waveform specifications, test level indication, and equipment design. ESD stimulator guns are the tools used during ESD testing to measure the voltage, current, and capacitance.

Frequently asked questions

What are some of the requirements for performing an ESD test using an ESD gun?

Some of the requirements include

• The hcp/vcp grounding impedance of 470k must be verified before the test to ensure that the grounding screw is not loose.

• Atmospheric pressure, humidity, and temperature must be controlled at the test site. Requirements: Atmospheric pressure: 86Kpa–106Kpa; relative humidity: 30–60%; ambient temperature: 15–35°C.

• The distance between the element under test (EUT), the test space’s walls, and any metal objects must be greater than one meter.

• The electrostatic gun’s grounding metal strap needs to be grounded.

How difficult is it to use the ESD gun?

In order to facilitate its user, LISUN provides training when it comes to the usage of its products. This makes it easier for the customer to use a product having been trained by a professional. Moreover, due to their portability and compact size, ESD simulators are easy to use in a number of situations.
