Unleashing the Power of Surge Generator: Essential Techniques for Surge Suppression

I. Introduction of Surge Generator

Surge generators are important equipment in electrical systems. Their main function is to simulate high-voltage pulses or instantaneous voltage fluctuations to test and evaluate the effectiveness of different surge suppression systems. These high-voltage electrical devices mainly serve to prevent transient voltage fluctuations from damaging electrical systems, thus safeguarding production.

Surge generators play a crucial role in measuring the suppression capabilities of electrical systems. They are able to generate high-voltage pulses to simulate lightning strikes or other sudden high-voltage current events, testing the efficiency and reliability of suppression systems. If these suppression systems cannot withstand these high-voltage pulses, it means that they are unable to effectively protect the electrical system, which may lead to production interruptions and equipment damage. Therefore, surge generators are essential tools for ensuring that electrical systems can withstand high-voltage pulses.

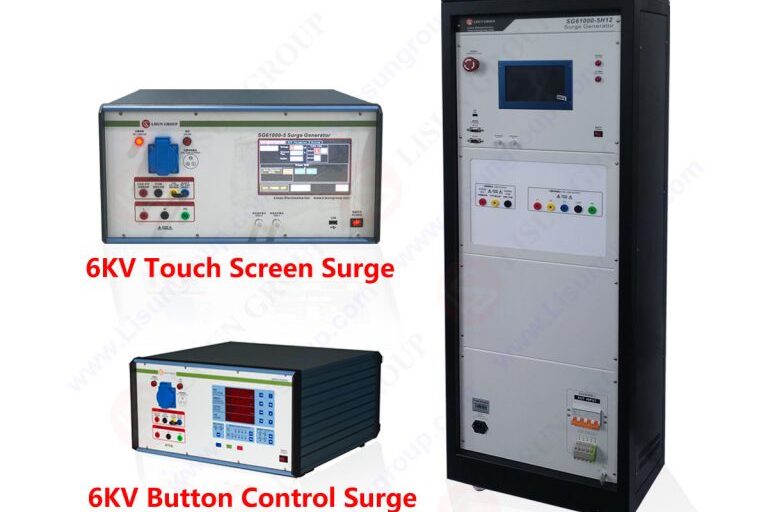

LISUN SG61000-5 is an automatic surge generator (also called lightning surge immunity test, combination wave generator, surge current generator/surge voltage generator, combined surge voltage and current generator) .

The SG61000-5 surge generator provides a common basis for evaluating the resistance of power cords and internal connectors of different equipment to high energy transient interference caused by natural lightning surge induction and large capacity load switching. It fully meets the IEC 61000-4-5, EN61000-4-5 and GB/T17626.5 standards.

Surge Generator SG61000 5

II. Understanding Surge Suppression

In the process of surge suppression, protective measures are used in order to decrease the impact that voltage spikes have on electrical infrastructure. These surges might be caused by a number of different things, including electrical grid oscillations, lightning strikes, or switching events.

By diverting or absorbing excess electrical energy, the purpose of surge suppression is to safeguard sensitive electronic equipment from any potential damage that might result.

III. Role of Surge Generators in Testing

Surge generators are an important piece of equipment for use in the testing of novel ways of surge suppression. They imitate the consequences of real surges by generating voltage transients in a controlled and repeatable manner, thereby making the simulation more accurate.

It is possible to recreate a broad range of surge circumstances in the actual world by fine-tuning the amplitude, duration, and waveforms of a surge generator’s output. With the assistance of these simulated surges, surge suppression devices and systems may be put through their paces and potentially enhanced.

The information that surge generators give, which details the interplay between surge currents and voltages and surge protection systems, may be of considerable use to professionals and may provide them with significant benefits.

In the process of repeated testing and analysis, surge generators make it possible to identify weaknesses in surge protection systems, which paves the path for the systems’ subsequent refinement and enhancement.

IV. Best Practices in Surge Suppression

When putting surge suppression strategies into action, it is essential to follow industry standards for best practices to provide optimum safety. Some essential methods include:

Comprehensive Risk Assessment: With the assistance of a thorough risk assessment, it is possible to identify potential surge sources and weak regions in the electrical system. As a result of this research, surge protectors may be positioned more effectively, which ensures the greatest possible degree of safety.

Multiple Protection Levels: use a number of surge protection devices simultaneously as opposed to just one single unit. The first line of defense is located at the service entrance, the second line of defense is located at the distribution panels, and the third line of defense is located at the sensitive equipment. Each tier provides an additional line of protection against unwelcome voltage surges that have the potential to cause costly equipment to malfunction.

Surge Diverter Placement: It is necessary to strategically position surge diverters in order to properly suppress surges. When the diverters are placed as close to the equipment that they are shielding as physically possible, the suppression is able to function at a higher level of effectiveness.

Grounding and Bonding: By ensuring that the grounding and bonding of every component of the electrical system is done properly, the risk of surges is decreased, and any excess energy is securely redirected. Equipotential bonding, grounding electrodes, and grounding conductors are all crucial components in the fight against surges.

Regular Maintenance and Testing: Maintenance and testing of surge protection devices and surge generator systems should be performed on a regular basis to ensure that they remain effective. Conducting visual inspections, testing surge protection devices, and testing surge generators on a consistent basis are all required in order to ensure that the system is operating as efficiently as possible.

V. Surge Generator Advancements

The evolution of technology for surge generators has led to the development of ever more sophisticated techniques of surge suppression. In today’s surge generators, you may find a variety of contemporary conveniences, such as programmable waveforms, increased surge energy capacity, and built-in monitoring, to name just a few.

As a result of these improvements, surge suppression strategies may now be assessed over a larger range of surge scenarios, with more accuracy and a higher level of complexity.

Protectors against surges that also record data make it possible to analyze the impacts of surges and how they affect the devices that are shielded from them. Having this information enables more accurate surge protection measures as well as improved performance across the board for the system.

VI. Conclusion

The role of surge generators also lies in providing protection for other types of electrical equipment. They can simulate various surge voltages that different electrical equipment may encounter in real production environments, testing whether the equipment can operate normally under these conditions. These tests can help electrical engineers identify weaknesses in equipment and take measures to strengthen their ability to withstand high-voltage pulses, thus ensuring the reliability and stability of the electrical system.

Surge generators can also be used to evaluate the actual effectiveness of different suppression systems. By simulating different levels of surge voltage and comparing the suppression capabilities of different systems, electrical engineers can identify the most effective suppression system and make improvements and optimizations. This helps to improve the efficiency and reliability of the suppression system, enabling the electrical system to better cope with sudden high-voltage pulses.

Electrical industry experts have a responsibility to stay current on the most recent developments in surge generators and ways for reducing surges in electrical systems. It is possible to protect electrical systems from the potentially catastrophic effects of voltage surges by testing and putting into practice effective methods of surge suppression. However, in order to do so, one must have an understanding of the role that surge generators play in this context.

In conclusion, surge generators are really beneficial equipment that may be used in the field of surge reduction. They may be used by trained professionals for the purpose of testing and enhancing surge protection systems and devices, as well as for fine-tuning suppression strategies.
