Application and Technical Research of Salt Spray Test Chamber in Material Corrosion Resistance Detection——Taking LISUN YWX/Q-010 Salt Spray Test Chamber as an Example

Abstract
As core environmental simulation equipment for corrosion resistance detection of materials and products, Salt Spray Test Chamber can accurately simulate marine and industrial salt spray corrosion environments. It accelerates the assessment on anti-corrosion performance of metal coatings, surface films, electronic components and finished products, providing crucial data support for product reliability verification, material selection and quality improvement. Taking LISUN YWX/Q-010 Salt Spray Test Chamber as the research object, this paper elaborates its working principle, structural characteristics, technical parameters, test standards and industrial applications. Comparative analysis is conducted based on measured data, which clarifies the technical advantages and detection value of this chamber. The research offers references for equipment selection and test method optimization in corrosion detection.

1. Introduction
In marine climate and industrial polluted areas, salt spray corrosion serves as a primary cause of failure for metal materials, coatings and electronic parts. Chloride ions contained in salt spray penetrate protective layers and trigger electrochemical corrosion, resulting in rusting, coating peeling, electrical short circuit and other malfunctions, which greatly shorten service life and threaten operational safety. Traditional natural exposure tests feature long cycles and numerous interfering factors, failing to meet the demands of rapid industrial R&D and quality control. By artificially reproducing salt spray atmosphere and accelerating corrosion procedures, Salt Spray Test Chamber efficiently evaluates corrosion resistance and has become indispensable reliability testing equipment in electronics, hardware, coating, home appliance and new energy industries.

LISUN YWX/Q-010 Salt Spray Test Chamber is high-end environmental simulation equipment developed for corrosion resistance inspection. Equipped with precise temperature control, automatic spraying and intelligent monitoring technologies, it supports neutral salt spray (NSS), acid salt spray (AASS) and copper accelerated acetic acid salt spray (CASS) tests and complies with domestic and international standards, satisfying detection requirements of various industries. This paper analyzes the technical application and practical value of Salt Spray Test Chamber based on this equipment.

2. Working Principle and Core Functions of Salt Spray Test Chamber

2.1 Working Principle
Prepared salt solution is atomized into fine particles inside the sealed test chamber via spraying devices to simulate real marine and industrial salt spray conditions. Chloride ions adhere to sample surfaces, penetrate protective coatings and react with internal metal materials electrochemically to speed up corrosion. The anti-corrosion capacity of materials is assessed by observing corrosion status and performance changes of specimens.

2.2 Core Functions
• Accurate environmental simulation: Stably regulate temperature, salt spray sedimentation rate and spraying pressure to restore authentic corrosion conditions.
• Multiple test modes: Compatible with NSS, AASS and CASS tests to fit diverse standard specifications.
• Intelligent monitoring: Automatic sedimentation detection, timing control and alarm functions ensure stable test operation.
• Accelerated performance evaluation: Shorten test period and effectively expose defects of protective layers and structural designs.

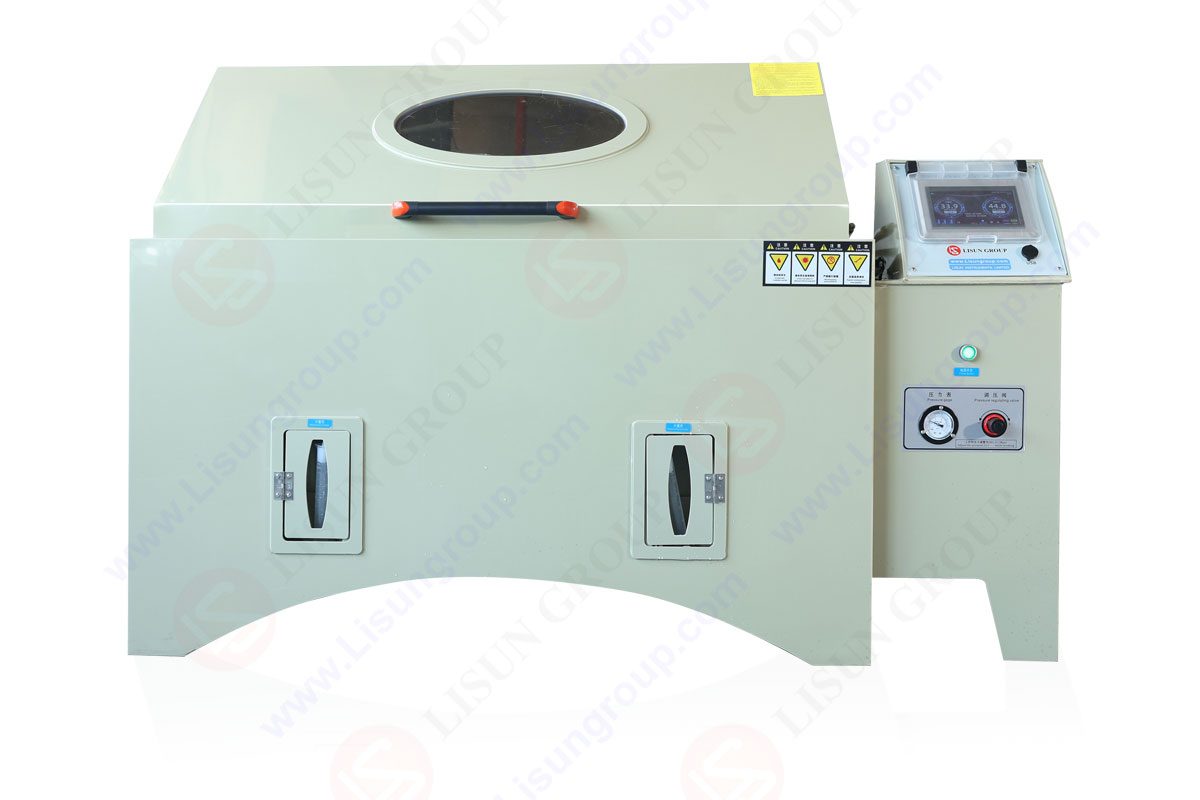

YWX/Q-010_AL

3. Structure and Technical Advantages of LISUN YWX/Q-010 Salt Spray Test Chamber

3.1 Structural Design
LISUN YWX/Q-010 Salt Spray Test Chamber adopts integrally formed imported corrosion-resistant PP plate with seamless structure to eliminate liquid leakage, adapting to long-term operation under strong acid and high salt concentration. High-precision temperature control system and automatic spraying unit are equipped. Stainless steel gas spring opening design facilitates daily operation. Compressed air is heated and filtered in saturation barrel to avoid nozzle crystallization and guarantee uniform spraying effect.

3.2 Technical Advantages
• Durable material: Anti-aging PP plate extends equipment service life under corrosive environment.
• Precise temperature control: Temperature uniformity within 2℃ and fluctuation within ±0.5℃ ensure consistent test conditions.
• Comprehensive functions: Continuous, intermittent and programmable spraying modes meet various test schemes.
• High operational safety: Multiple alarms for low water level, over temperature and low air pressure reduce operation risks.
• Wide standard compatibility: Conform to GB, ASTM, ISO and IEC standards to ensure universally recognized test results.

4. Key Technical Parameters of LISUN YWX/Q-010 Salt Spray Test Chamber
Designed with reasonable specifications balancing precision and practicality, core parameters are listed as follows:

5. Executive Standards and Industrial Applications of Salt Spray Test Chamber

5.1 Executive Standards
LISUN YWX/Q-010 Salt Spray Test Chamber complies with authoritative domestic and international standards, guaranteeing standardized testing and credible results.
• Domestic standards: GB/T 2423.17-2021, GB/T 10125-2021, GB/T 1771-2021
• International standards: ASTM B117-2022, ISO 9227-2017, IEC 60068-2-11-2013

5.2 Industrial Applications
• Electronic and electrical industry: Inspect chip pins, connectors and power adapters to evaluate coating reliability and shell protection performance, preventing short circuit and poor contact caused by salt spray erosion.
• Metal hardware industry: Test screws, springs and aluminum profiles to verify protective effects of galvanization and chromium plating for coastal and humid workshop usage scenarios.
• Coating treatment industry: Assess anti-corrosion capability of paint and powder coatings, detecting blistering, peeling and rust defects to support coating R&D and quality management.
• Household appliance industry: Examine outdoor air conditioner units and outdoor furniture to maintain appearance integrity and service durability in salty and humid surroundings.
• New energy industry: Test photovoltaic frame and communication base station shells to confirm structural stability and protective performance under long-term outdoor exposure.

6. Application Value and Development Trend of Salt Spray Test Chamber

6.1 Application Value
Salt Spray Test Chamber shortens test cycles and cuts R&D costs through accelerated corrosion tests, helping enterprises identify product defects and optimize material selection and processing technology. Featuring high precision, stable performance and full standard compatibility, LISUN YWX/Q-010 Salt Spray Test Chamber improves detection efficiency and result authenticity, offering solid technical support for product quality upgrading.

6.2 Development Trend
Future Salt Spray Test Chamber will develop towards intelligence, integration and cyclic operation. Internet of Things technology will realize remote monitoring and data traceability. Combined tests integrating salt spray, drying and humidity cycles will better simulate natural environments. Optimized structural design will reduce energy consumption and maintenance cost, catering to rigorous detection demands of marine engineering, aerospace and advanced new energy fields.

7. Conclusion
Salt Spray Test Chamber acts as vital environmental simulation equipment for material corrosion resistance detection. It simulates salt spray corrosion conditions accurately and conducts accelerated product assessment, occupying an irreplaceable position in industrial quality control. With scientific design, stable performance and complete functions, LISUN YWX/Q-010 Salt Spray Test Chamber satisfies multi-industry and multi-scenario detection demands, delivering scientific foundation for product reliability verification, material research and quality improvement. With industrial and technological advancement, Salt Spray Test Chamber will keep upgrading and play an increasingly important role in corrosion protection fields.
