25 Feb, 2024 134 Views Author: Cherry Shen

Wide application of electrostatic discharge generator in automotive electronics

The electrostatic discharge generator is a device used to generate a high-intensity electrostatic field and induce electrostatic discharge phenomena. Electrostatic discharge is a process of charge release, which occurs when an object accumulates excessive charge beyond its capacity and the charge is discharged through air or other medium.

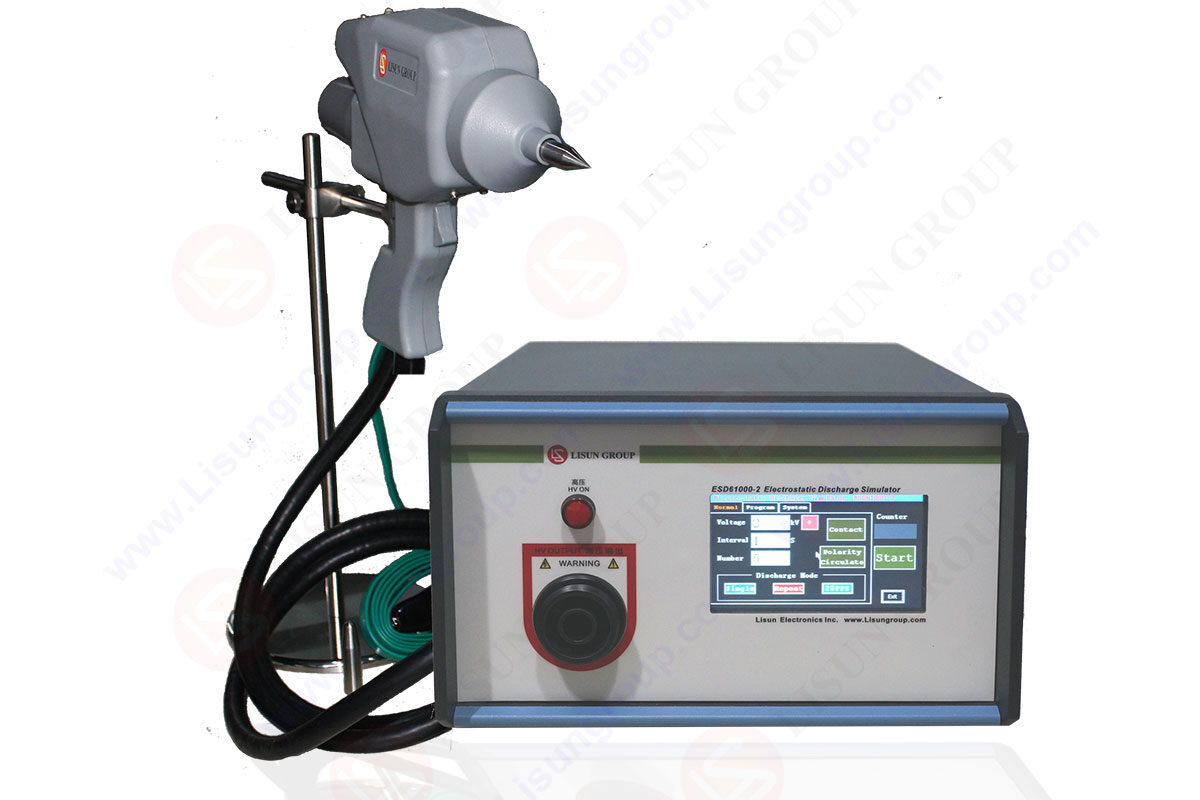

Wide application of electrostatic discharge generator in automotive electronics

ESD Gun Calibrate Set

I. The working principle of the electrostatic discharge generator mainly involves three processes: charge accumulation, field formation, and charge release.

1. First, the electrostatic discharge generator transfers charge from one object to another through devices or structures such as friction, inductor coils, and electrostatic induction plates. For example, when two objects rub or come into contact, charge transfer occurs, with one object becoming positively charged and the other negatively charged. This accumulation of charge leads to the generation of electrostatics.

video

2. Next, in the electrostatic discharge generator, the charged object creates an electric field that forms a high-intensity potential difference region. The electric field is a force field caused by charge, and within this region, charges are repelled or attracted. The strength of the electric field depends on the magnitude of the charge and the distance between objects. When the electric field strength reaches a certain critical point, electrostatic discharge occurs. This is why we sometimes feel a shock when touching a metal object.

3. Finally, the electrostatic discharge generator generates electrostatic discharge by releasing the accumulated charge. Discharge can be achieved through different means such as spark discharge, arc discharge, and point discharge. Spark discharge is the most common method. When charges accumulate to a certain level, they seek a path of lower potential energy to discharge. In the electrostatic discharge generator, charges form a corona region through a conductor tip or electrode. When the potential of the corona region reaches the discharge voltage, the charges create a visible spark or arc, thereby releasing the charge and generating electrostatic discharge.

II. The electrostatic discharge generator has a wide range of applications.

In laboratories, the electrostatic discharge generator is commonly used to study electrostatic phenomena and the effects of high electric fields. In industrial applications, the electrostatic discharge generator can be used for surface cleaning, electrostatic spraying, electrostatic dust removal, and more. Additionally, electrostatic discharge phenomena are widely applied in fields such as electrostatic elimination, electrostatic protection, and electronic product testing.

III. Wide application of electrostatic discharge generator in automotive electronics

1. Firstly, the main application of the electrostatic discharge generator in automotive electronics is for lightning protection. Modern automotive electronic devices use a large number of electronic components that are highly sensitive to electrostatic discharge and lightning. During the operation of a vehicle, it is often subjected to lightning strikes. Without the protection of an electrostatic discharge generator, these electronic devices can easily be damaged. The electrostatic discharge generator can absorb and reduce the impact of lightning on the automotive electronic system by releasing static energy, thus protecting the normal operation of the system.

2. Secondly, the electrostatic discharge generator can also be used for electrostatic testing of automotive electronic devices. In the automotive industry, the impact of static electricity on electronic devices is a very important issue. Static electricity accumulates on the surfaces of plastics and insulating materials in vehicles, and when a person touches these surfaces with static electricity, electrostatic discharge occurs. Electrostatic discharge not only poses a risk to individuals but also causes damage to automotive electronic devices. The electrostatic discharge generator can simulate real-life electrostatic discharge situations and perform electrostatic testing on automotive electronic devices to ensure the safety and reliability of the equipment.

3. The electrostatic discharge generator can also be applied to electromagnetic interference (EMI) suppression in automotive electronic devices. In the automotive electronic system, a large amount of electromagnetic radiation and interference are generated due to the dense arrangement of electronic devices and the transmission of high currents. This electromagnetic radiation and interference can have a negative impact on the normal operation of the entire automotive electronic system. The electrostatic discharge generator can effectively eliminate the electromagnetic radiation and interference generated by electronic devices by releasing static energy, thus improving the stability and anti-interference capability of the entire system.

4. Additionally, the electrostatic discharge generator can be used for maintenance and preservation of automotive electronic devices. Modern automotive electronic devices are becoming increasingly complex, and maintenance and preservation have become more challenging. The electrostatic discharge generator can release static energy to remove static accumulation in the equipment, preventing equipment failures and damage. For example, before replacing an automotive electronic device, the electrostatic discharge generator can be used to discharge static electricity inside the device to prevent damage during the repair process.

IV. Caution should be taken when using an electrostatic discharge generator

1. Ensure that operators have received relevant safety training and can operate the electrostatic discharge generator correctly.
2. Operators should wear protective equipment such as anti-static gloves and shoe covers during operation to ensure their safety.
3. Before operation, check if the power to the discharge apparatus has been disconnected and ensure that the surface of the apparatus is free from impurities or conductive materials.
4. The electrostatic discharge generator should be placed in a dry, clean area and kept away from water, moisture, and flammable substances.
5. During operation, strictly follow the operating instructions and comply with relevant safety regulations.
6. When using the electrostatic discharge generator, avoid contact with electronic devices, flammable, and explosive materials to prevent accidents or damage to equipment.
In conclusion, the electrostatic discharge generator has a wide range of applications in automotive electronics, including lightning protection, electrostatic testing, EMI suppression, and equipment maintenance.
These applications not only ensure the normal operation of automotive electronic systems but also enhance the reliability and stability of the entire system. With the continuous advancement of automotive electronic technology, it is believed that the application of the electrostatic discharge generator in automotive electronics will continue to expand and innovate, making greater contributions to the development of the automotive industry.

ESD simulator guns (Electrostatic Discharge Generator/Electrostatic Gun/ESD Guns) is in full compliance with IEC 61000-4-2EN61000-4-2ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322.

Wide application of electrostatic discharge generator in automotive electronics

ESD61000-2_Electrostatic Discharge Simulator
