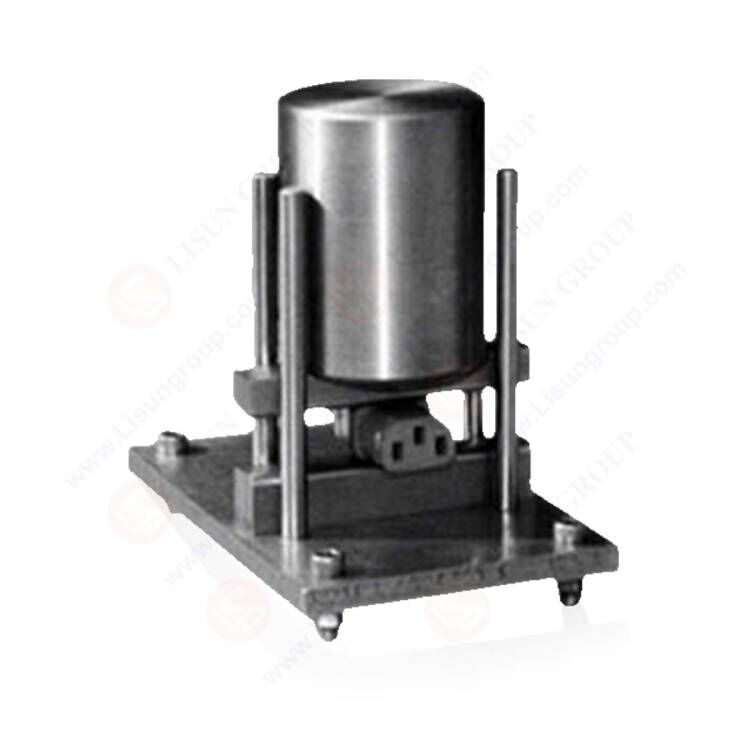

IEC60884-1:2022 Figure 41 Thermal Compression Test Device for Plug Socket

IEC60884-1:2022 Figure 41 Thermal Compression Test Device for Plug Socket consists of a movable pressure block, a fixed pressure block, a guide rail support, and weights. It can be used to assess the pressure resistance performance of specific electrical components under heated conditions. When conducting the test, it must be used in conjunction with a high-temperature chamber. By providing the sample with a specific heating environment and stable pressure, it tests whether the sample can maintain qualified pressure resistance performance under heated conditions, thereby verifying the structural stability and pressure resistance reliability of the relevant components when facing temperature changes in actual use scenarios.

Standard:

Application:
Used to assess the pressure resistance of electrical accessories and surface-mounted installation boxes under heat.
Sample range: mobile socket covers, electrical accessories and surface-mounted installation boxes

Structure and function:
The thermal compression test device consists of a mobile pressure block, a fixed pressure block, a guide rail bracket and a weight. When doing thermal pressure resistance tests on electrical accessories and surface-mounted installation boxes, it should be used in conjunction with the GW-225 high temperature chamber.

Test time: The cover of the mobile socket is tested at 25±5° for 1 minute, and the electrical accessories and surface-mounted installation boxes are tested at 80±2° for 1 hour.

Specification:
• Clamp cylindrical surface radius: R25mm
• Weight (upper clamp): 20N
• Corner radius: R2.5mm
• Clamp thickness: 15mm
• External size: 140 * 140 *205mm (length × width × height)
• Test environmental temperature: 70 ℃ ± 5 ℃ (Should work together with LISUN GW-225 high temperature chamber)

IEC 60884-1 Figure 41 Apparatus for compression test for the verification of resistance to heat specification of 25.5
