IK Rating Testing Technology and Application Based on LISUN IK01‑06 Spring Impact Hammer

Abstract：
IK Rating Testing is a core method to evaluate the mechanical impact resistance of enclosures for electrical and electronic equipment, which is directly related to the safety and reliability of products during use. As a high‑precision special device for IK Rating Testing, the LISUN IK01‑06 Spring Impact Hammer can stably output impact energy corresponding to IK ratings from IK01 to IK07 relying on its integrated structure and precise spring drive system, meeting the mechanical strength test requirements of products in various industries. Focusing on the standard basis of IK Rating Testing and the product characteristics of the LISUN IK01‑06 Spring Impact Hammer, this paper analyzes its application scenarios and technical advantages in IK Rating Testing, and illustrates the practicability of the device combined with actual test data, providing a reference for IK Rating Testing in related industries.

1. Core Connotation and Standard System of IK Rating Testing

IK Rating Testing is formulated in accordance with standard IEC 62262:2002, whose full name is Degrees of Protection Provided by Enclosures for Electrical Equipment Against External Mechanical Impacts. It uses the form of “IK + two digits” to characterize the impact resistance of products. The digits increase sequentially from 00 to 10, corresponding to the impact energy gradually increasing from 0 J to 20 J. The higher the rating, the stronger the enclosure’s ability to resist mechanical impact.

The core purpose of IK Rating Testing is to verify that the enclosure and internal components of a product can still operate normally when subjected to rough handling, falling objects, accidental collisions, etc., so as to avoid safety accidents caused by structural damage. It is a key part of factory inspection and quality certification for products in LED lighting, household appliances, electronic products and other industries.

The implementation of IK Rating Testing must follow a strict system of international and national standards. Domestic standards include GB/T 2423.55‑2023 Environmental Testing for Electric and Electronic Products – Hammer Tests, GB/T 7000.1‑2023 Luminaires – General Requirements and Tests, GB 4706.1‑2005 Household and Similar Electrical Appliances – Safety – General Requirements, etc. International standards include IEC 60068‑2‑75:2014 Environmental Testing – Part 2‑75: Tests – Test Eh: Hammer Tests, IEC 60598‑1:2025 Luminaires – General Requirements and Tests, UL 1244:2020 Standard for Safety for Electrical and Electronic Measuring and Test Equipment, etc.

These standards clearly specify the test method, impact energy accuracy, test point layout and other requirements of IK Rating Testing, requiring that test equipment must have stable energy output and good test repeatability. The LISUN IK01‑06 Spring Impact Hammer is a professional test device that fully meets the above standard requirements.

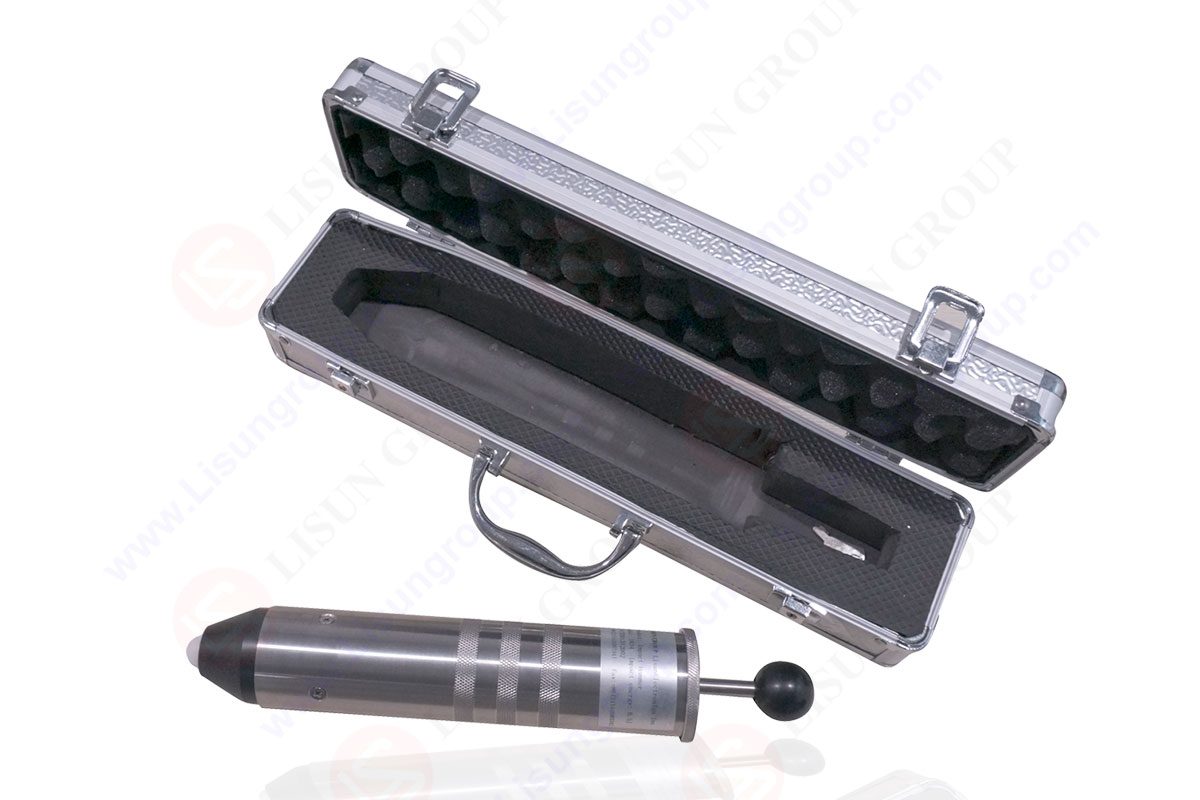

IK01-06_Spring Impact Hammer IK Level Tester

2. Product Characteristics and Test Principle of LISUN IK01‑06 Spring Impact Hammer

The LISUN IK01‑06 Spring Impact Hammer is a high‑precision device specially developed for IK Rating Testing. It adopts an integrated structural design with a compact body and strong mechanical stability, effectively avoiding energy deviation caused by equipment shaking during testing.

The device is equipped with a precision spring drive system, which converts the elastic potential energy of the spring into impact kinetic energy. It can accurately and stably output the impact energy corresponding to IK ratings from IK01 to IK07, with the energy error controlled within the allowable range of the standard. Among them, the error of IK01 (0.14 J) is ≤ ±0.014 J, IK06 (1 J) ≤ ±0.05 J, and IK07 (2 J) ≤ ±0.08 J, ensuring the accuracy and repeatability of IK Rating Testing results.

According to IK Rating Testing requirements in different industries, LISUN provides two types of spring impact hammers:

• Single‑level type: A special impact hammer for each rating from IK01 to IK07, suitable for batch testing of a single rating.

• Multi‑level type (IK01‑06): Integrates six ratings from IK01 to IK06 in one device, realizing fast switching of different impact energies through gear adjustment, greatly improving the efficiency of multi‑rating testing.

In addition, all models of impact hammers can be calibrated regularly through the LISUN IK01‑07‑CAL Spring Impact Hammer Calibrator to ensure long‑term test accuracy, meeting the metrology traceability requirements for equipment in IK Rating Testing.

The test principle of the LISUN IK01‑06 Spring Impact Hammer complies with the spring hammer test method in IEC 60068‑2‑75:2014. The impact energy is determined by preset spring compression. The impact head is aligned with the specified test point of the tested product, and the spring is released so that the hammer strikes the tested part with specified energy.

By observing whether cracks, deformation, functional failure and other phenomena appear on the product enclosure, it can be judged whether it meets the protection requirements of the corresponding IK rating. The device is easy to operate without complex external power sources, and can perform IK Rating Testing in laboratories, production workshops and other environments with strong adaptability.

3. Application Scenarios of LISUN IK01‑06 Spring Impact Hammer in IK Rating Testing

IK Rating Testing covers LED lighting, household appliances, consumer electronics, industrial control and many other fields. With its wide‑range impact energy output and high adaptability, the LISUN IK01‑06 Spring Impact Hammer has become core equipment for IK Rating Testing in various industries.

It is mainly used for mechanical strength tests of impact‑prone parts such as product enclosures, operating levers, handles, knobs, indicators, signal lamps and lamp covers.

• LED lighting industry: Enclosures and lamp covers of indoor lamps, outdoor street lamps, landscape lamps and other products need to pass IK Rating Testing. Indoor lamps generally require IK04 to IK05, while outdoor lamps require IK06 to IK07. The LISUN IK01‑06 Spring Impact Hammer can perform accurate impact tests on lamp covers and enclosures to verify their damage resistance under object impact and wind‑induced collision.

• Household appliance industry: Control panels, enclosures, knobs and other parts of refrigerators, washing machines, air conditioners, televisions and other appliances need to pass IK03 to IK05 tests. The LISUN IK01‑06 Spring Impact Hammer can simulate various impact scenarios to complete IK Rating Testing of household appliances.

• Consumer electronics industry: Office electronic equipment such as keyboards, mice, routers, printers, as well as small sensors and electronic components usually require IK01 to IK04. The multi‑level LISUN IK01‑06 can quickly switch ratings and realize batch IK Rating Testing.

• Industrial control industry: Industrial control boxes, distribution boxes, operation panels and other equipment usually require IK05 to IK07 due to tool collision and material falling risks. The LISUN IK01‑06 Spring Impact Hammer can output high impact energy from 0.7 J to 2 J to simulate real industrial impacts.

4. Technical Advantages of LISUN IK01‑06 Spring Impact Hammer in IK Rating Testing

In practical IK Rating Testing, the LISUN IK01‑06 Spring Impact Hammer shows significant technical advantages over traditional test equipment:

• High precision and repeatability: The precise spring drive system and integrated structure effectively reduce impact energy deviation, ensuring that each test is highly consistent with standard values. Test repeatability meets GB/T 2423.55‑2023 and IEC 60068‑2‑75:2014.

• High adaptability and convenience: The multi‑level IK01‑06 supports fast switching among six IK ratings without replacing the hammer or complicated adjustment. It is compact, lightweight and suitable for both laboratory and online production testing.

• Full standard compatibility: The device fully complies with current domestic and international standards for IK Rating Testing, including GB, IEC, UL, EN, etc. It supports 3C, CE and other certification tests, reducing enterprise testing costs.

• Long‑term stability and calibratability: High‑strength wear‑resistant materials extend service life. The dedicated IK01‑07‑CAL calibrator supports regular calibration to maintain long‑term accuracy, meeting metrology and testing equipment management requirements.

5. Conclusion

As a key link to ensure the mechanical safety of electrical and electronic equipment, IK Rating Testing has strict requirements for the accuracy, stability and adaptability of test equipment.

With its integrated structure, precise spring drive system and full standard compatibility, the LISUN IK01‑06 Spring Impact Hammer has become a professional device for IK Rating Testing. It can stably and accurately perform impact tests from IK01 to IK07, meeting testing needs in LED lighting, household appliances, consumer electronics, industrial control and other industries.

With the increasing demand for product quality, the importance of IK Rating Testing is becoming more prominent. The LISUN IK01‑06 Spring Impact Hammer provides reliable equipment support for IK Rating Testing and helps enterprises improve impact resistance and safety reliability.

In the future, LISUN will further integrate digital and intelligent technologies to realize automatic collection, analysis and traceability of IK Rating Testing data, providing more efficient testing solutions for high‑quality industry development.
