A Comprehensive Overview of Insulation Resistance Transformer Testing with LISUN LS2789 Transformer Comprehensive Tester

Introduction
In the realm of electrical engineering, ensuring the safety, reliability, and optimal performance of transformers is of utmost importance. One critical aspect of transformer maintenance and quality control is insulation resistance testing. This test plays a pivotal role in assessing the integrity of the transformer’s insulation system, which is essential for preventing electrical failures, reducing downtime, and maintaining the longevity of these vital components. The LISUN LS2789 Transformer Comprehensive Tester stands out as a cutting-edge solution designed to meet the diverse and rigorous demands of insulation resistance transformer testing, among other comprehensive testing requirements. This article delves into the significance of insulation resistance testing, the features and capabilities of the LISUN LS2789 tester, and how it addresses the challenges in the transformer testing industry, supported by detailed specifications and comparative data in tabular form.

The Importance of Insulation Resistance Transformer Testing
Insulation resistance testing is a fundamental diagnostic procedure used to evaluate the quality and condition of a transformer’s insulation materials. Transformers rely on effective insulation to prevent electrical leakage, short circuits, and breakdowns, which can lead to catastrophic failures and pose significant safety hazards. Over time, insulation materials can degrade due to factors such as heat, moisture, mechanical stress, and chemical reactions. Insulation resistance testing helps identify early signs of degradation, allowing for timely maintenance or replacement of components before major issues arise.

The test involves applying a direct current (DC) voltage across the insulation and measuring the resulting resistance. A high insulation resistance value indicates healthy insulation, while a low value may signal the presence of contaminants, moisture, or deterioration. This test is particularly crucial in industries such as power generation, distribution, manufacturing, and telecommunications, where the reliable operation of transformers is indispensable for uninterrupted service.

Key Objectives of Insulation Resistance Testing
•  Assess Insulation Integrity: Determine if the insulation can withstand the operational voltage and prevent electrical breakdown.
•  Detect Moisture and Contamination: Identify the presence of moisture or conductive particles that can compromise insulation performance.
•  Monitor Degradation Trends: Track changes in insulation resistance over time to predict maintenance needs and avoid unexpected failures.
•  Ensure Compliance with Standards: Meet industry standards and regulatory requirements for transformer safety and performance.

Overview of LISUN LS2789 Transformer Comprehensive Tester

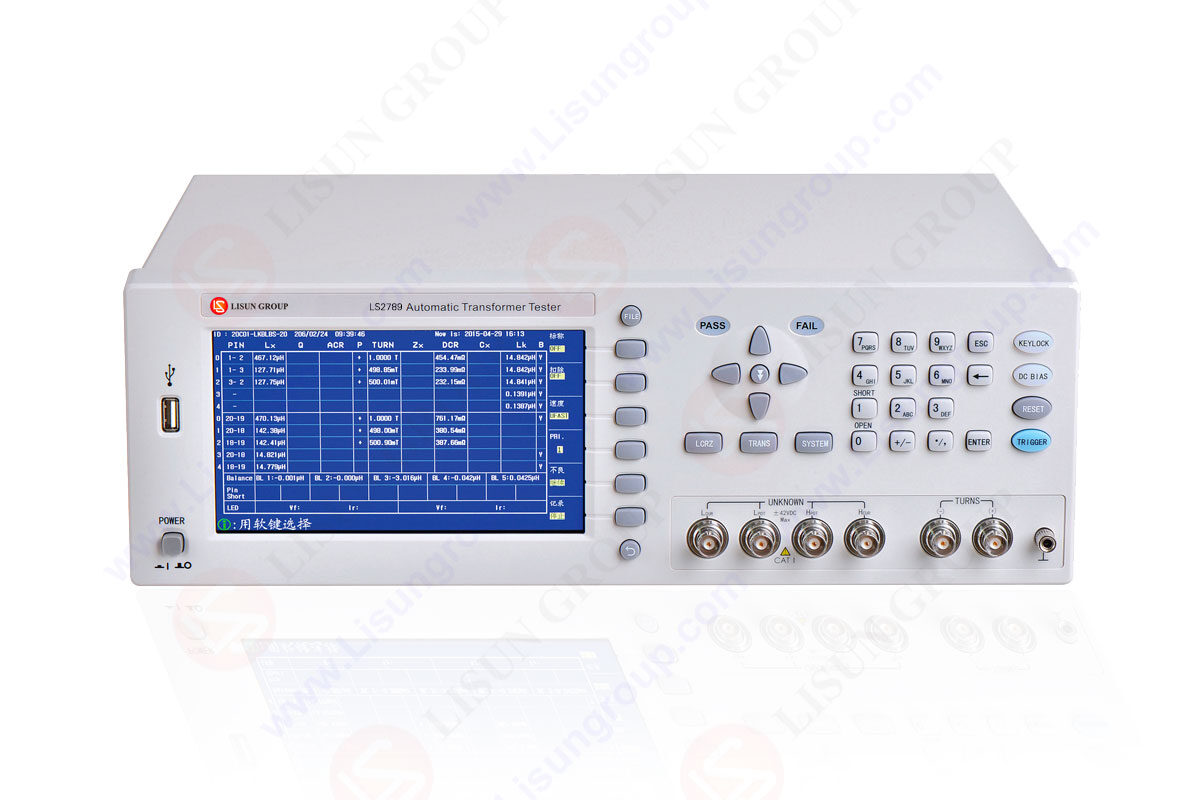

The LISUN LS2789 series Transformer Comprehensive Tester is a state-of-the-art instrument developed by LISUN Group, a leading provider of testing solutions with over a decade of experience in the transformer testing industry. Designed to deliver high stability, exceptional measurement speed, and versatile functionality, the LS2789 is a game-changer in the field of transformer testing, including insulation resistance testing.

Product Model Variations
The LS2789 series comprises three main models, each catering to different frequency range requirements while maintaining consistent high precision and advanced features:
•  LS2789: Operates within a frequency range of 20Hz to 200kHz, with a resolution of 1mHz.
•  LS2789A: Extends the frequency range to 300kHz, suitable for applications requiring higher frequency testing.
•  LS2789B: Offers the widest frequency range of 20Hz to 500kHz, making it ideal for advanced and high-frequency transformer testing scenarios.

All models share a robust set of specifications and features that enhance their performance in insulation resistance testing and other comprehensive transformer evaluations.

Key Features of LISUN LS2789 for Insulation Resistance Transformer Testing

1. High Measurement Accuracy
The LS2789 series boasts a basic measurement accuracy of 0.05%, ensuring reliable and precise results in insulation resistance measurements. This level of accuracy is critical for detecting subtle changes in insulation performance, which can be indicative of early-stage degradation.

2. Wide Test Parameter Range
The tester supports a comprehensive range of test parameters relevant to insulation resistance testing and beyond. Key parameters include:
•  Insulation Resistance (IR): Measured to assess the integrity of the insulation system.
•  DC Resistance (DCR): Helps identify issues such as loose connections or winding defects that can impact insulation performance.
•  Capacitance (C) and Inductance (L): Provide insights into the electrical characteristics of the transformer, which can be correlated with insulation condition.
•  Leakage Inductance and Phase Angle: Useful for evaluating the magnetic and electrical behavior of the transformer, influencing insulation stress analysis.

The table below outlines the detailed display ranges for these parameters:

Function and parameter	Display Range
Insulation Resistance (IR)	0.01 mΩ～99.9999MΩ
DC Resistance (DCR)	0.01 mΩ～99.9999MΩ
Capacitance (C)	0.00001pF～9.99999F
Inductance (L)	0.00001μH～99999.9H
Leakage Inductance	N/A (Included in comprehensive transformer tests)
Phase Angle (θ)	-179.999°～179.999°

3. Advanced Hardware and Interface
•  7-inch True Color LCD Screen: With an 800×480 resolution, the screen provides a full-display of all parameters, ensuring clear and intuitive visualization of test results.
•  Multiple Operating Interfaces: Adaptable to different user preferences, enhancing usability and accessibility for technicians with varying levels of expertise.
•  Transformer Scan Boxes: Available in pin configurations from 20Pin to 192Pin, the tester can accommodate a wide range of transformer sizes and types, making it suitable for diverse industrial applications.

4. Enhanced Data Management and Protection
•  Keyboard Lock and Data Protection: Prevents unauthorized changes to settings and ensures data integrity during power outages, safeguarding critical test results.
•  PASS/FAIL LED Display: Provides instant visual feedback on test outcomes, streamlining the quality control process.
•  Dual Operating System Support: Offers optional Chinese and English interfaces with various display styles, catering to a global user base.
•  USB Upgrade Capability: Allows for easy firmware updates, ensuring the tester remains equipped with the latest features and improvements.

5. Flexible Test Modes and Configurations
•  Four-Terminal Test Mode: Utilizes an optimized matrix structure to reduce measurement errors caused by lead resistance and contact impedance, enhancing the accuracy of insulation resistance measurements.
•  Programmable Up to 96-Pin Transformers: Divided into 4 channels (24P each), the tester supports cross-channel testing, enabling efficient and comprehensive evaluation of complex transformer designs. Customizable configurations up to 100P (25P×4) are also available to meet specific customer requirements.
•  Multiple Trigger Modes: Including internal, manual, automatic, external, and bus triggers, providing flexibility in integrating the tester into different testing environments and workflows.

6. Optional Bias Current Sources
•  LS27Y09 (±100mA Built-in Bias Current Source): Useful for testing transformers under biased current conditions, which can simulate real-world operating scenarios and provide more accurate insulation performance data.
•  LS27Y10 (0～1A Constant Current Source): Enables testing at higher current levels, essential for evaluating the behavior of transformers in high-power applications.

Key Advantages in Insulation Resistance Testing
•  High-Speed Testing: The super-fast test speed of 150 times per second allows for rapid evaluation of multiple transformers, increasing productivity in manufacturing and maintenance settings.
•  Customizable Test Signals: The ability to adjust the test signal level up to 5Vrms (customizable) ensures compatibility with a wide range of transformer designs and insulation requirements.
•  Low Distributed Capacitance: The tester’s optimized matrix structure and shrapnel contact design minimize distributed capacitance, resulting in more accurate and reliable insulation resistance measurements, especially at high frequencies.
•  Long-Life Shrapnel Contacts: Designed for durability, the shrapnel contacts maintain consistent performance over extended use, reducing the need for frequent replacements and ensuring long-term reliability.

Applications of LISUN LS2789 in Insulation Resistance Testing
The LS2789 Transformer Comprehensive Tester is widely applicable across various industries and transformer types, including:
•  Power Transformers: Used in power generation and distribution networks to ensure the insulation integrity of large-scale transformers, critical for maintaining grid stability.
•  Distribution Transformers: Tested in utility and industrial settings to prevent failures in local power distribution systems.
•  Audio Transformers: Evaluated in the electronics industry to ensure high-quality sound performance and safety in audio equipment.
•  High-Frequency Transformers: Utilized in telecommunications, renewable energy systems (e.g., inverters), and electronic devices such as laptops and smartphones, where high-frequency operation requires precise insulation testing.
•  Industrial Transformers: Tested in manufacturing facilities to support machinery and equipment requiring reliable power conversion and distribution.

In each application, the LS2789’s ability to perform rapid, accurate, and comprehensive insulation resistance testing helps manufacturers and maintenance teams identify potential issues early, reduce downtime, and ensure compliance with industry standards such as IEC 60664, IEEE Std 43, and ANSI/IEEE C57.12.91.

Comparison with Traditional Insulation Resistance Testing Methods

Feature	Traditional Megohmmeters	LISUN LS2789 Transformer Comprehensive Tester
Test Parameters	Limited to insulation resistance	Supports a wide range of parameters including IR, DCR, L, C, phase angle, turn ratio, etc.
Measurement Accuracy	Typically lower (1-5% accuracy)	0.05% basic accuracy, ensuring precise results
Test Speed	Slow, manual operation	High-speed testing (up to 150 times/SEC), the automatic trigger modes
Frequency Range	Fixed or limited frequency	Adjustable frequency range (20Hz～500kHz, depending on the model)
Data Management	No built-in data storage	Data protection against power down, USB connectivity for data transfer and firmware updates
Usability	Basic interface, limited customization	User-friendly 7-inch LCD screen, multiple operating interfaces, and programmable configurations
Scalability	Designed for single-function testing	Supports multi-channel testing, customizable pin configurations, and optional bias current sources

The LS2789’s advanced features make it a superior choice for modern testing environments, where efficiency, accuracy, and versatility are paramount.

Conclusion
Insulation resistance transformer testing is a critical component of ensuring the safety, reliability, and longevity of transformers in various industries. The LISUN LS2789 Transformer Comprehensive Tester offers a cutting-edge solution that combines high precision, speed, and versatility to meet the evolving demands of transformer testing. With its wide range of features, including multiple frequency ranges, advanced data management, and customizable configurations, the LS2789 sets a new standard in the industry.

Whether used in manufacturing, maintenance, or research and development, the LS2789 provides technicians and engineers with the tools they need to accurately assess insulation integrity, detect early signs of degradation, and maintain optimal transformer performance. As the power and electronics industries continue to advance, the LS2789 remains a reliable and future-proof solution for insulation resistance testing and beyond.
