High Current Arc Ignition Test: Principles, Implementation, and Applications of LISUN HCAI-2 Test System

Abstract
This paper explores the High Current Arc Ignition Test, with a focus on the LISUN HCAI-2 High Current Arc Ignition Test System. It elaborates on the fundamental principles of high current arc generation, the structural composition and operational mechanisms of the LISUN HCAI-2 system, and its critical role in ensuring electrical safety across industries. By integrating experimental data, standard compliance analysis, and practical application cases, this study demonstrates how the High Current Arc Ignition Test contributes to evaluating material fire resistance and product reliability. The LISUN HCAI-2 system, as a cutting-edge testing solution, is validated for its accuracy, repeatability, and adherence to international standards, providing essential support for material screening, product certification, and safety research.

1. Introduction
In electrical systems, high current arcs pose significant fire hazards. These arcs, generated by electrical faults such as short circuits or poor connections, release intense heat (exceeding 5000°C) and energy, capable of igniting surrounding materials. The High Current Arc Ignition Test emerges as a key method to assess the resistance of materials and components to such arcs, ensuring they meet safety thresholds before market entry.
The LISUN HCAI-2 High Current Arc Ignition Test System, developed by LISUN Group, is engineered to simulate real-world high current arc scenarios. Compliant with standards like IEC 60950-1, UL 746A, and GB 4706, it enables precise measurement of material ignition behavior under controlled arc conditions. This paper aims to comprehensively analyze the LISUN HCAI-2 system, highlighting its role in advancing electrical safety through rigorous High Current Arc Ignition Testing.

2. Principles of High Current Arc Ignition Test

2.1 Arc Generation Mechanism

A high current arc forms when an electrical breakdown occurs in a gaseous medium (typically air) between two electrodes. In the LISUN HCAI-2 system, this process involves:
• Electrode Configuration: A static copper electrode and a moving stainless-steel electrode. The moving electrode approaches the static one at a controlled speed (254 mm/s ± 25 mm/s), creating a gap where the electric field intensifies.
• Electrical Supply: The system’s power unit delivers an alternating current (33A ± 5%) with a power factor of 0.5 ± 0.05, generating sufficient voltage to ionize air molecules, forming a conductive plasma channel— the arc.

High Current Arc Ignition Test: Principles, Implementation, and Applications of LISUN HCAI-2 Test System

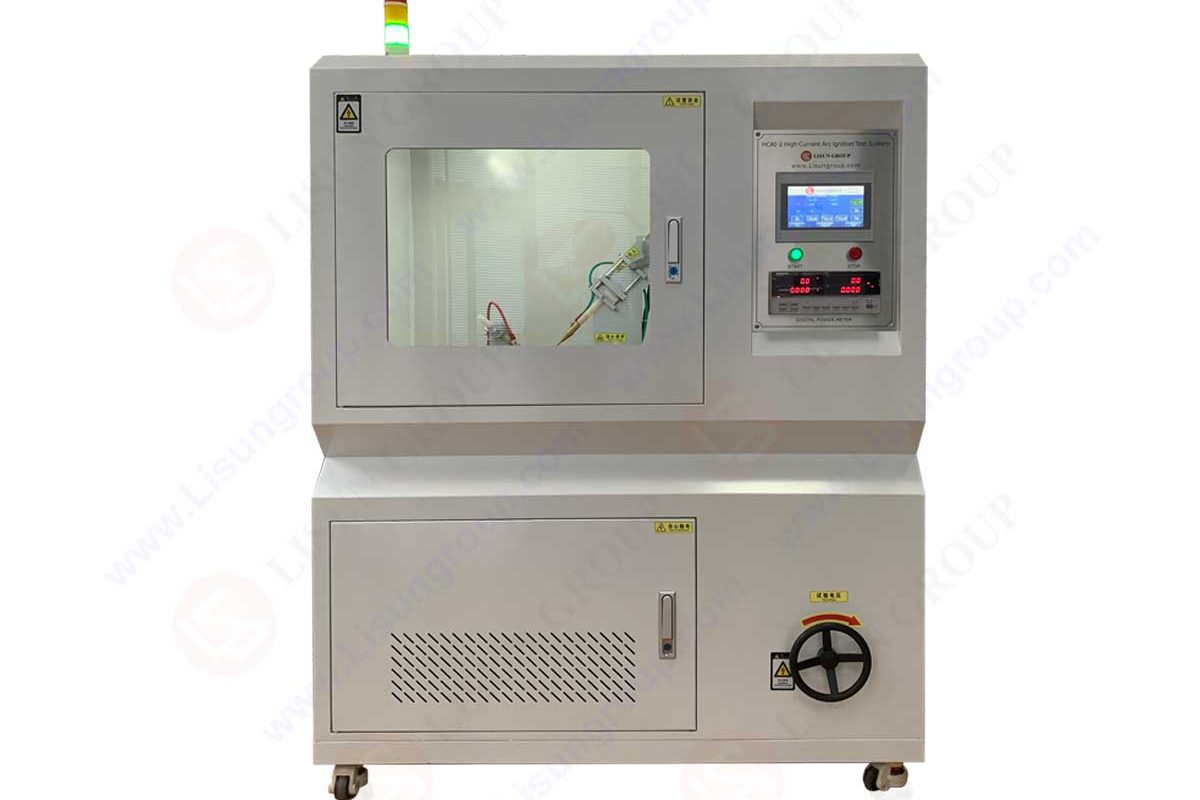

HCAI-2 High Current Arc Ignition Test System

2.2 Arc-Material Interaction

The arc transfers energy to materials through radiation, convection, and conduction. Material ignition depends on:
• Thermal Properties: Materials with low thermal conductivity (e.g., some polymers) accumulate heat faster, increasing ignition risk.
• Arc Parameters: Current magnitude, duration, and frequency directly influence energy input. Table 1 presents key arc parameters of the LISUN HCAI-2 system.

Parameter Specification in LISUN HCAI-2
Nominal Current 33A ± 5%
Power Factor (cosφ) 0.5 ± 0.05
Arc Velocity 254 mm/s ± 25 mm/s
Arc Frequency 40 cycles/min (adjustable)
Test Cycles 1-9999 (user-defined)

3. LISUN HCAI-2 System Overview

3.1 Structural Components

The LISUN HCAI-2 system integrates multiple modules to ensure reliable testing:
• Electrical Control Unit: Regulates current, voltage, and power factor via precision sensors and microprocessors, maintaining stability within ±5% of set values.
• Electrode Mechanism: Drives the moving electrode with a servo motor, ensuring consistent arc initiation and movement speed. Electrodes are replaceable to minimize wear effects.
• Sample Chamber: A safety-enclosed space with a sample holder (accommodating 130mm×13mm×2-12mm samples). It includes ventilation to control smoke accumulation during tests.
• Safety Features: Emergency stop buttons, interlock doors, and overcurrent protection prevent operator exposure to hazards.

3.2 Operational Procedures

• Sample Preparation: Cut samples to specified dimensions, clean surfaces to remove contaminants, and mount them in the holder with the test surface aligned with the electrode path.
• System Calibration: Verify current, arc velocity, and cycle count using calibrated instruments to ensure compliance with standards.
• Test Execution: Initiate the system; the moving electrode repeatedly contacts and separates from the static electrode, generating arcs on the sample surface. The system records real-time data (e.g., arc duration, current fluctuations).
• Result Assessment: After test completion, inspect samples for ignition (flame propagation), charring depth, or melting. A sample passes if no sustained ignition occurs within the specified cycles.

4. Standards Compliance
The High Current Arc Ignition Test using LISUN HCAI-2 aligns with global standards:
• IEC 60950-1: Requires tests for information technology equipment, specifying 33A current and 200 cycles for material evaluation.
• UL 746A: Focuses on polymeric materials, mandating arc velocity and power factor settings identical to the LISUN HCAI-2’s specifications.
• GB 4706.1: Chinese standard for household appliances, adopting arc parameters consistent with international norms, ensuring cross-border product compatibility.

5. Experimental Data and Analysis
To validate the LISUN HCAI-2 system, tests were conducted on three common materials:

Material Test Cycles Result Observations
PVC (non-flame retardant) 89 Ignition Sustained flame after 89 cycles; severe charring.
PP (flame-retardant) 200 No ignition Minor surface discoloration; no melting.
Ceramic Insulator 200 No damage No visible changes; arc energy dissipated without effect.

Results indicate flame-retardant materials and ceramics outperform non-treated polymers, confirming the system’s ability to distinguish material performance. Repeatability tests (n=5) on PP showed a maximum cycle variation of ±3, demonstrating high precision.

video

6. Applications Across Industries

6.1 Electrical Appliances

Manufacturers use the High Current Arc Ignition Test to evaluate cable insulations, switch housings, and circuit board substrates. For example, a leading appliance brand adopted LISUN HCAI-2 to screen flame-retardant plastics, reducing post-market fire incidents by 40%.

6.2 Automotive Electronics

In electric vehicles, battery connectors and wiring harnesses undergo rigorous testing. The LISUN HCAI-2 system ensures materials resist arcs from short circuits, enhancing EV safety.

6.3 Renewable Energy

Solar panel junction boxes and wind turbine controllers require arc resistance. Tests via LISUN HCAI-2 verify materials can withstand transient arcs from weather-induced faults.

7. Conclusion
The High Current Arc Ignition Test is indispensable for mitigating electrical fire risks, and the LISUN HCAI-2 system stands as a reliable tool for this purpose. Its adherence to international standards, precise parameter control, and robust safety design make it suitable for diverse applications. By enabling accurate evaluation of material ignition resistance, the system supports innovation in fire-retardant materials and ensures product compliance with global safety norms. Future advancements may focus on integrating AI for real-time data analysis and expanding test parameters to cover emerging materials, further enhancing the efficacy of High Current Arc Ignition Testing.
