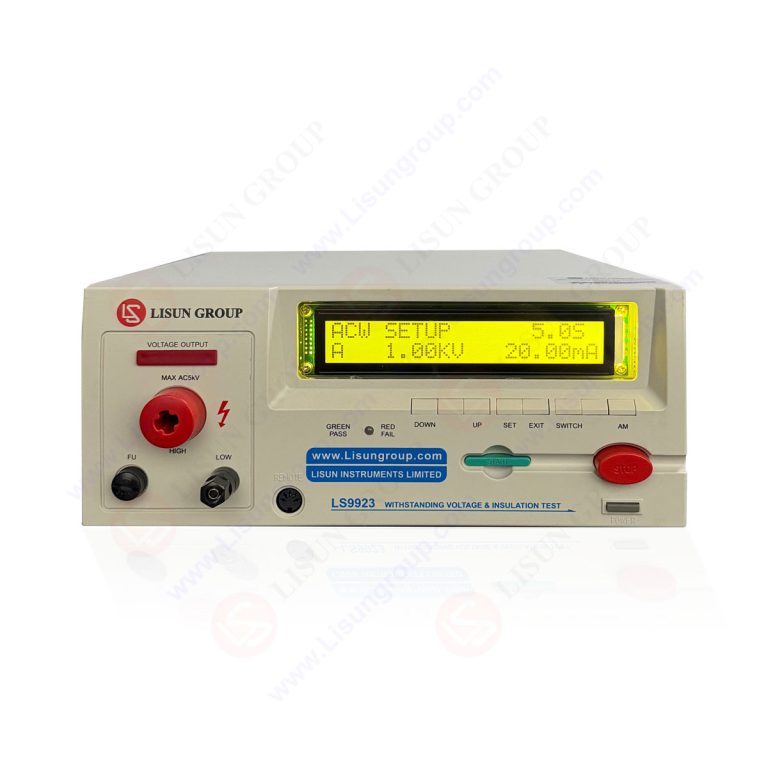

Programmable Withstanding Voltage & Insulation Tester

The LS9923 Programmable Withstanding Voltage & Insulation Tester is an integrated testing device developed by LISUN specifically for the safety inspection of electrical products. It centrally integrates two key functions: AC/DC withstand voltage testing and insulation resistance testing. It can accurately evaluate the insulation performance and breakdown resistance of electronic products under high-voltage conditions, and is widely suitable for compliance testing needs of electrical products in multiple fields such as household, industrial, and medical.

The LS9923 adopts a high-precision voltage sampling module and a fast overcurrent protection circuit. Its output voltage range covers AC/DC 0~5.00KV, and the overcurrent cutoff speed is fast (millisecond-level response), which can effectively avoid irreversible damage to the tested equipment caused by continuous high-voltage breakdown. Meanwhile, it is equipped with convenient functions such as remote control rod operation, acousto-optic alarm, and automatic test time control. The operation interface is simple and intuitive, making it suitable for both batch testing scenarios where production line workers can quickly get started, and refined testing needs during the R&D phase in laboratories. It is an ideal insulation and withstand voltage testing tool that balances safety, accuracy, and ease of use.

Reference Standards:

Note: Different standards have slightly different requirements for Programmable Withstanding Voltage & Insulation Tester. We recommend that you confirm with LISUN engineers which standards each LISUN Programmable Withstanding Voltage & Insulation Tester model meets in order to accurately match your testing needs.

Specifications:

Applications:
• Household Appliance Industry: Withstand voltage tests for power cords and enclosures of products such as rice cookers, washing machines, and electric irons, compliant with IEC 60335-1 (GB 4706.1), to prevent electric leakage risks.
• Lighting Industry: Insulation resistance tests for LED ceiling lights, outdoor floodlights, and stage lighting fixtures (e.g., insulation between lamp holders and enclosures), meeting IEC 60598-1 (GB 7000.1).
• Electronic Components Industry: Withstand voltage breakdown tests for components like capacitors, transformers, and relays, ensuring no breakdown occurs under rated voltage.
• Wire and Cable Industry: Withstand voltage tests for insulation layers of power cords and signal cables to verify their high-voltage resistance, compliant with IEC 60204-1 (GB/T 24344).
• Medical Equipment Industry: Insulation resistance tests for small medical diagnostic instruments and physiotherapy devices, meeting the safety requirements for medical equipment specified in IEC 60601-1 (GB 9706.1).
• Industrial Machinery Industry: Withstand voltage tests for industrial electrical equipment such as machine tools and motor control boxes, compatible with GB/T 24344, to ensure electrical safety in industrial
