Product No: EFT61000-4

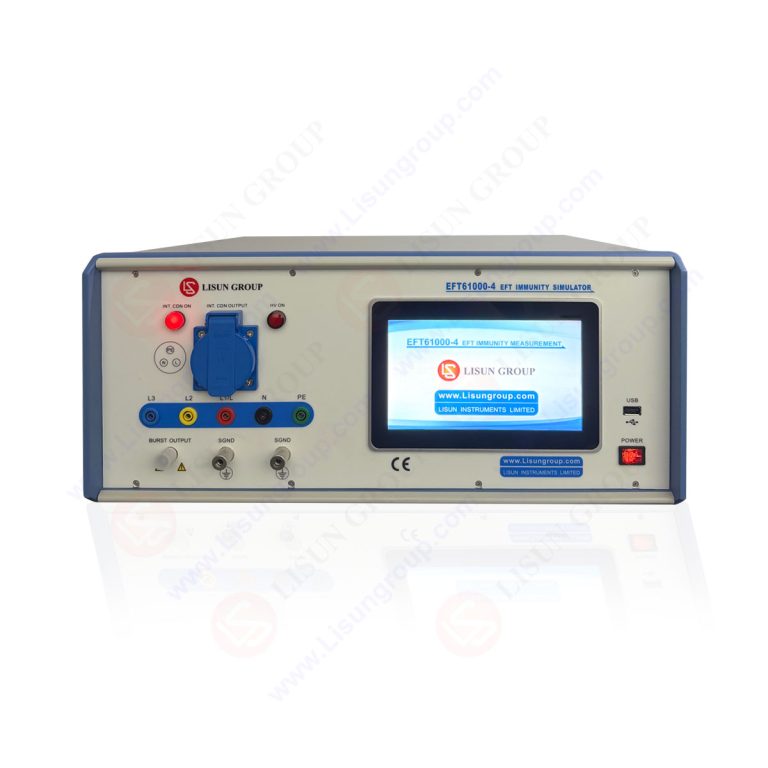

The EFT61000-4 series EFT Immunity Measurement (also known as EFT Burst testing, Fast Transient Pulse Generator, Fast Transient Burst Simulator) is a high-precision device designed specifically for electromagnetic compatibility (EMC) immunity testing. Its core function is to simulate the high-frequency pulses generated by fast transient pulse that electronic and electrical equipment (EUT) may encounter during actual operation, such as power grid switching operations and relay contact bounce. This allows the EUT to assess its tolerance to such interference and ensure stable operation in complex electromagnetic environments.
The EFT61000-4 series EFT Burst testing features a large self-developed Android touch screen with Chinese and English support, built-in test programs for national and international standards such as IEC/EN 61000-4-4 and GB/T 17626.4, and supports one-click access to preset parameters, making it applicable to EMC compliance testing needs in a wide range of fields including LED lighting, consumer electronics, automotive electronics, industrial control and medical devices.
Standards:
| Standards NO. | Standards Name |
| IEC 61000-4-4:2012 | Electromagnetic compatibility (EMC) – Part 4-4: Testing and measurement techniques – Electrical fast transient/burst immunity test |
| EN 61000-4-4:2012 | Electromagnetic compatibility (EMC) – Part 4-4: Testing and measurement techniques – Electrical fast transient/burst immunity test |
| ANSI/IEEE C62.41-1991 Clause 10.1 “The Electrical Fast Transient (EFT)” |
IEEE Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits |
| GB/T 17626.4-2018 | 电磁兼容 试验和测量技术 快速瞬变脉冲群抗扰度试验 |
Specifications:
| LISUN Model | EFT61000-4 | EFT61000-4A | EFT61000-4-32A | EFT61000-4A-32A | EFT61000-4-100A | EFT61000-4A-100A |
| Output voltage | 0~5kV | 0~6kV | 0~5kV | 0~6kV | 0~5kV | 0~6kV |
| Pulse frequency | 1kHz~1,000kHz Continuously adjustable | |||||
| Polar pulse | Positive/negative, positive and negative automatic alternation | |||||
| Internal resistance | 50Ω ±20%、1,000Ω ±20% | |||||
| Pulse rising time | 5ns ±30% | |||||
| Pulse width (at 50Ω) | 50ns ±30% | |||||
| Pulse width (at 1kΩ) | 35ns~150ns | |||||
| Pulse length | 0.01ms~20ms | |||||
| Pulse period | 100ms~500ms | |||||
| Test time | 1s~9,999s | |||||
| Test function | Set the test mode or IEC standard | |||||
| CDN | Built-in 3phase 16A CDN | Built-in 3phase 32A CDN | External 3phase 100A CDN | |||
| Working power | AC220V (110V optional) ±10%, 50/60Hz | |||||
Recommendation 1:
If testing network signal cables such as RJ45, we recommend using the LISUN EFT-CLAMP Capacitive Coupling Clamp in conjunction with the EFT61000-4 Fast Transient Generator.
EFT-CLAMP capacitance coupling clip
Recommendation 2:
We recommend that you use the LISUN EFT-DESK standard test table with EFT61000-4 Fast Transient Generator to create a test environment that fully complies with standard requirements.
EFT Test Desk
