Coupling Decoupling Network for Communication Lines

Product No: CDN61000-5C

Leave a Message

=
  • Description
  • The CDN61000-5C Series Coupling Decoupling Network for Communication Lines is fully meet IEC 61000-4-5, EN 61000-4-5, GB/T 17626.5, ITU-T K.45, ITU-T K.21 and ITU-T K.20, it output surge waveform are Combine wave (1.2/50μs and 8/20μs) and CCITT wave (10/700μs and 5/320μs). CDN61000-5C Series can works with LISUN SG61000-5 Series Surge Generator to test all of the communication lines, signal wires and control cables.

    Standard:
    IEC 61000-4-5/EN61000-4-5/GB/T17626.5 “Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test

    Specification

    LISUN Model CDN61000-5C-H8BC CDN61000-5C-H8CC CDN61000-5C-H8BCC CDN61000-5C-L8BCDC CDN61000-5C-L4CDC CDN61000-5C-L4BDC
    Data Rate 5~1000MB/s <5MB/s
    EUT Channel 8 Channels 4 Channels
    Compling Waveform 1.2/50μs and 8/20μs 10/700μs and 5/320μs 1.2/50μs and 8/20μs、10/700μs and 5/320μs 1.2/50μs and 8/20μs 10/700μs and 5/320μs
    Coupling Mode Common-Mode Common-Mode and Differential-Mode
    Port Type Unshielded Symmetrical Lines Unshielded Symmetrical Lines, Unshielded Asymmetrical Lines
    Max Test Voltage 6KV (It can work with LISUN SG61000-5 or SG61000-5C)
    EUT Type High speed communication lines such as RJ45 Low speed communication lines such as RS485 and RS422, RS232 and GPIB

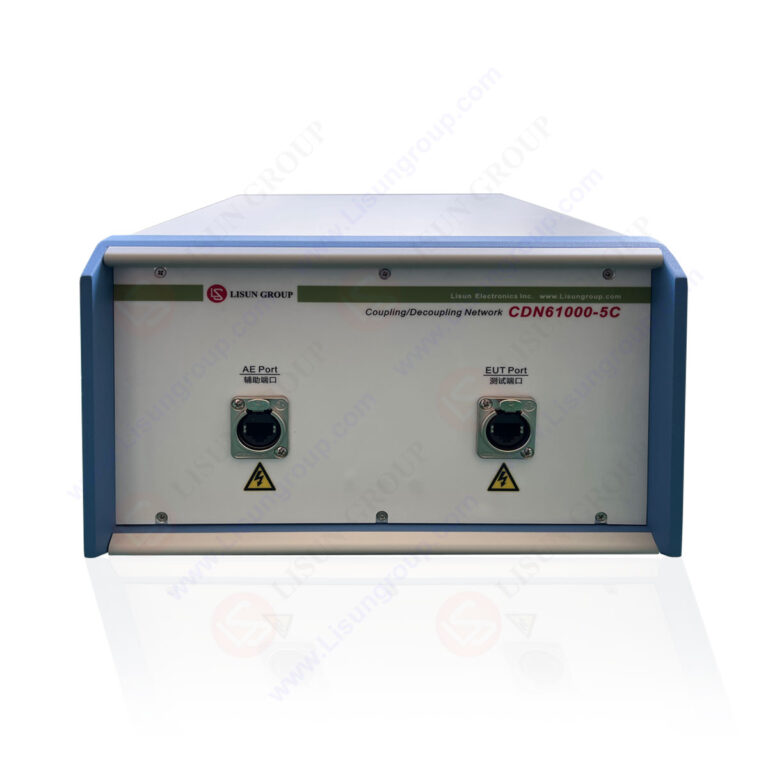

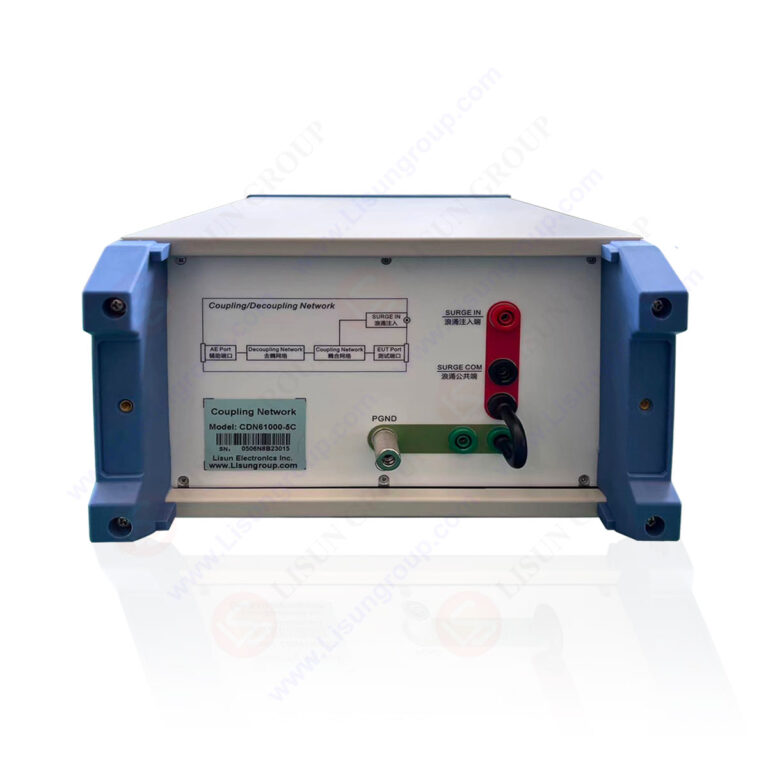

    Coupling Decoupling Network for High Speed Communication Lines CDN61000-5C-H Series

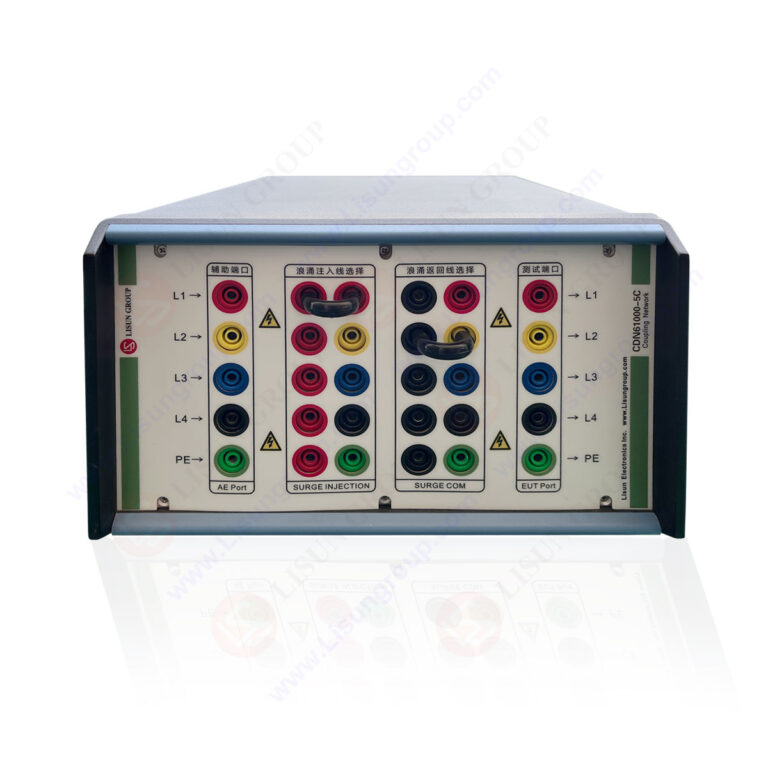

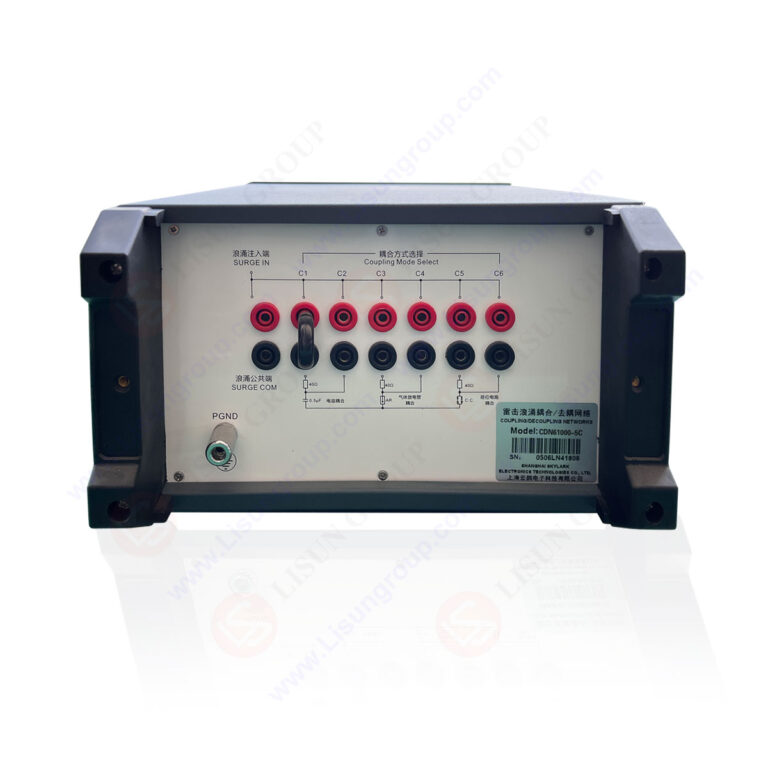

    Coupling Decoupling Network for Low Speed Communication Lines CDN61000-5C-L Series

    Remark: CDB61000-5C-L8BCDC where CDN61000-5C means the CDN for communication lines, H/L means high speed/low speed, 8/4 means how many channels, B/C means 1.2/50μs or 10/700μs (BCC means 1.2/50μs and 10/700μs), D/C means differential/common mode (DC means differential and common mode).
