Surge Monitor

Product No: SG-M10

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description
  • Download

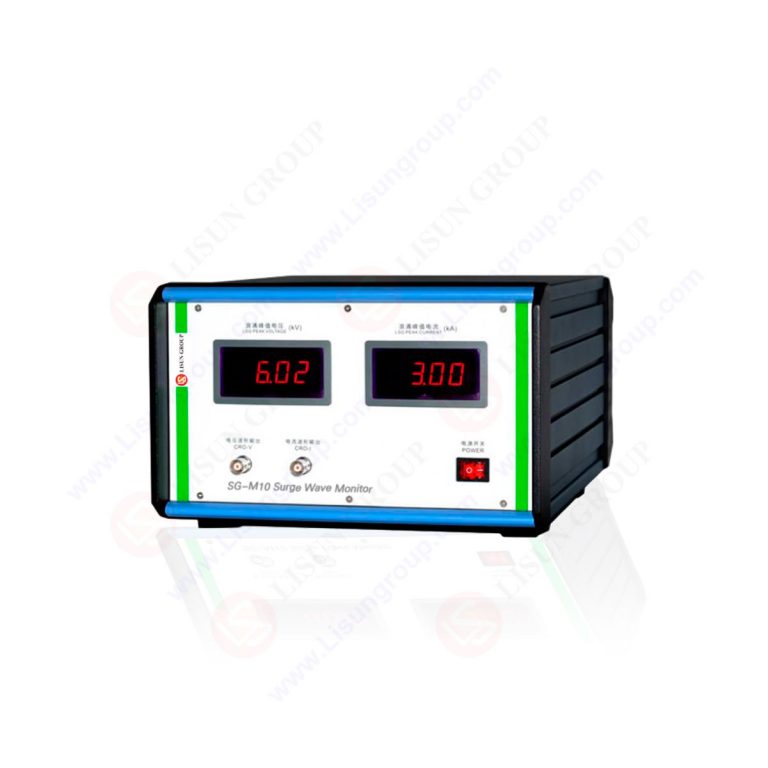

  • SG-M10 Surge Monitor built-in surge voltage and current probe. After connecting with LISUN OSP1102 Digital Oscilloscope, it can real-time monitor Surge Generator SG61000-5SA/SB and SG61000-5NA/NB surge 1.2/50us and 8/20us output waveform, real-time display of surge peak voltage and peak current, and real-time monitor surge breakdown voltage and breakdown current of EUT. Thus make the surge test process more direct and facilitate fault diagnosis.

    Optimized for the surge waveforms specified in GB/T 17626.5 and IEC 61000-4-5. The test results with high accuracy and good stability.

    Maximum peak voltage

    ±10kV ±10%

    Maximum peak current

    ±5kA ±10%

    Voltage attenuation ratio

    1000:1

    Current attenuation ratio

    1000:1

    Accuracy

    >5%

    Surge peak voltage and peak current display

    LCD synchronous display

    Surge voltage and current monitoring output

    BNC coaxial terminal, ≥1MΩ

    Power Supply

    AC220±10% 50/60Hz (110V customizable)

  • SG-M10 Surge Monitor Brochure
