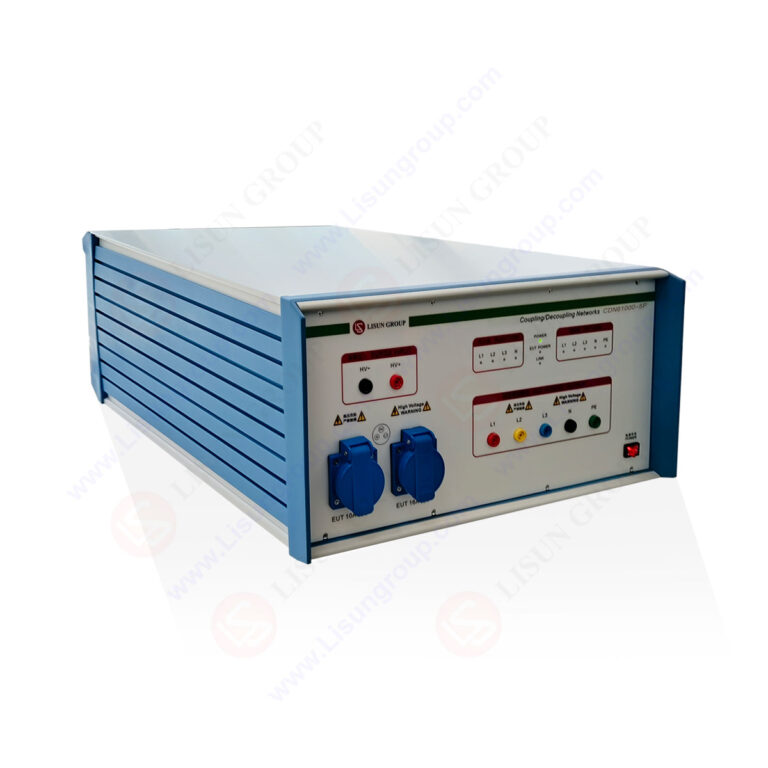

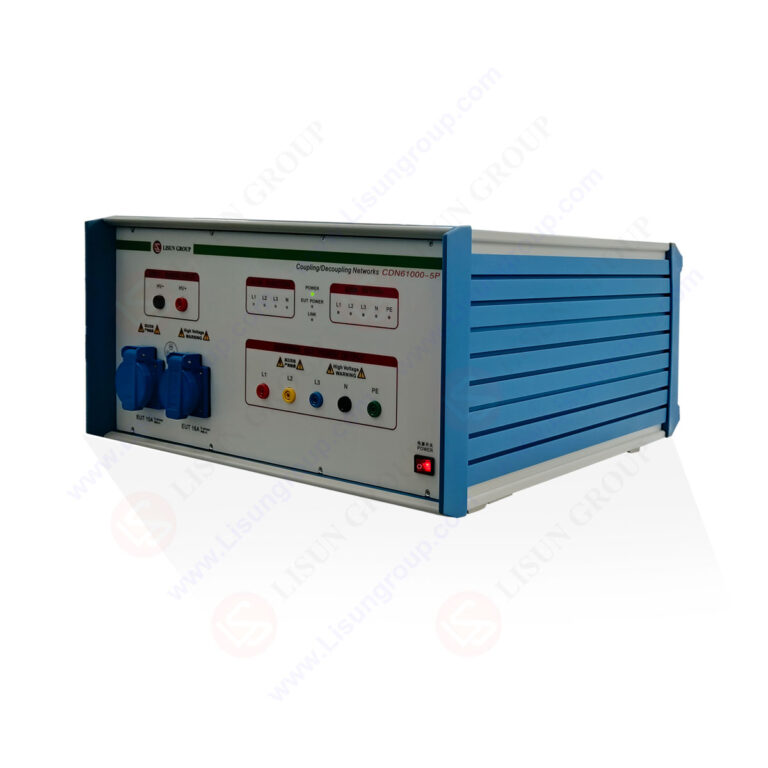

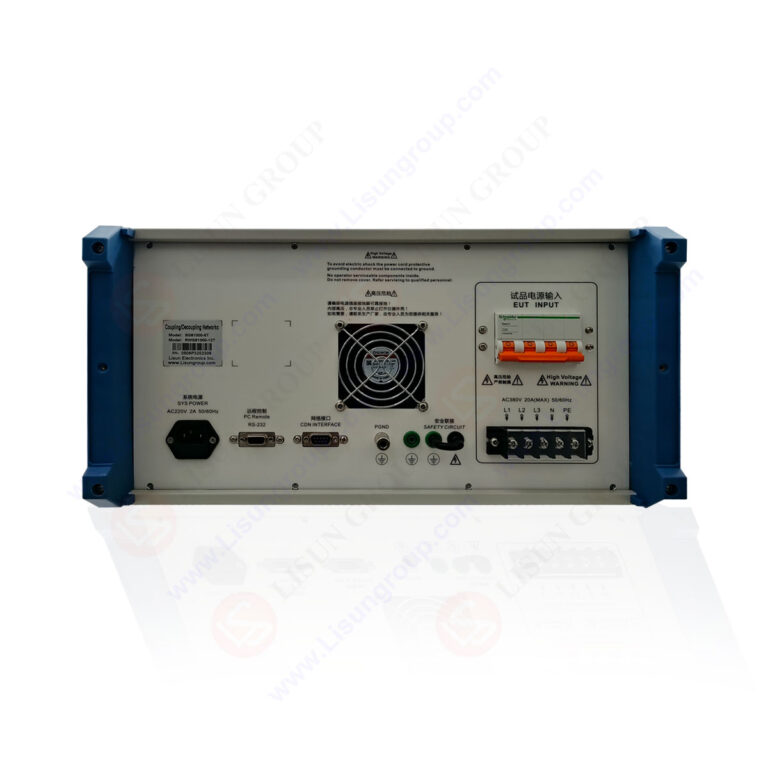

Coupling Decoupling Network for Power Lines

Product No: CDN61000-5P

Leave a Message

=
  • Description
  • Video
  • Download

  • The CDN61000-5P Series Coupling Decoupling Network for Power Lines are used to work with LISUN SG61000-5 series Surge Generator and RWG61000-12 series Ring Wave Generator. It can do the three-phases power line surge immunity test.

    Standard：
    IEC61000-4-12/EN61000-4-12/GB/T17626.12 “Electromagnetic compatibility (EMC) – Part 4-12: Testing and measuring – Ring waves immunity test”
    IEC 61000-4-5/EN61000-4-5/GB/T17626.5 “Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test”

    LISUN Model

    CDN61000-5P-T440V20A

    CDN61000-5P-T440V32A

    CDN61000-5P-T440V100A

    Coupling  Wave

    IEC61000-4-5 Surge Combine Wave 1.2/50μs and 8/20μs，IEC61000-4-12 Ring Wave

    Max Surge Voltage/Current

    6KV/3KA (Work with LISUN SG61000-5 series Surge Generator or RWG61000-12 series Ring Wave Generator)

    Phase Angle

    Asynchronous, Synchronization 0°~ 360°

    Coupling Mode

    Common-Mode and Differential-Mode

    EUT Capacity

    3phases/AC440V/20A

    3phases/AC440V/32A

    3phases/AC440V/100A

    CDN61000-5P Coupling Decoupling Network for Power Lines

    Note: It can be customized according to customer requirements. For example, CDN61000-5PH-T1000V50A has a Max input voltage of 10KV and Max input current of 5KA, and the capacity of the equipment under test (EUT) is 3phases/AC1000V/50A, which can be worked with LISUN SG61000-5H-SP.
