20 Nov, 2023 289 Views Author: Raza Rabbani

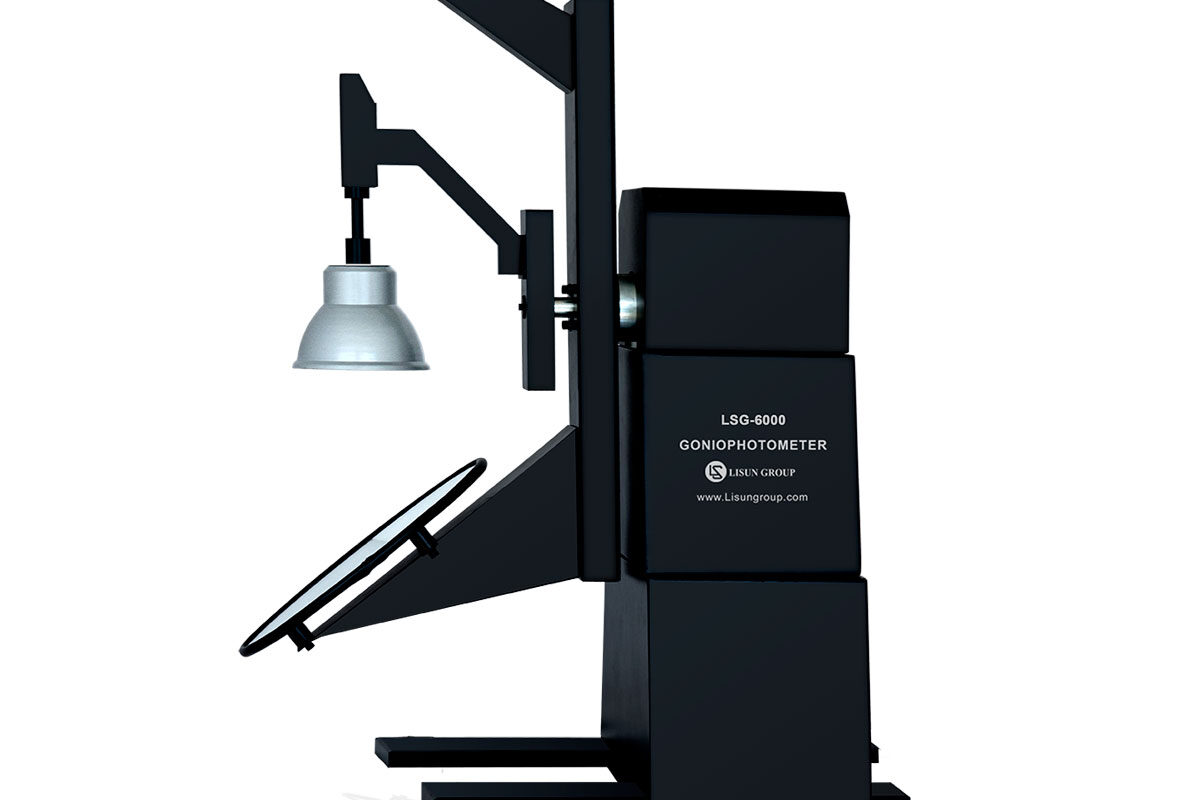

Application of Goniophotometers in Display and Projection Technologies

Introduction
Measurement and characterisation of the light distribution from a wide variety of sources may be accomplished with the help of goniophotometry, a method that has several applications. While goniophotometers are most often thought of in relation to lighting design and analysis, they really have a lot of uses in the area of projection and display technology.

This article delves further into the function of goniophotometers in various fields, demonstrating how crucial they are for achieving peak visual performance, maintaining good picture quality, and improving the user experience.

Manufacturers and researchers may create cutting-edge systems that give great visual performance and satisfy the needs of current display applications by learning how to use goniophotometers in display and projection technologies.

Optimizing Display Uniformity
Display technologies like as LCD, OLED, and microLED need to be able to maintain a level of brightness and color uniformity over the whole of the screen in order to provide a high-quality viewing experience.

Goniophotometers are vital instruments for determining the brightness and color uniformity of a display and measuring their consistency. Using goniophotometers and gathering readings from a number of different angles, it is possible to zero in on the source of brightness and color variations on a display.

Using goniophotometric measurements, one is able to analyze the effectiveness of various backlighting systems, light diffusers, and optical coatings in the process of producing a field of illumination that is uniform.

The data collected by goniophotometers might provide manufacturers with the knowledge they need to enhance display designs, make adjustments to lighting configurations, and develop compensatory algorithms to solve non-uniformities.

In addition, goniophotometers may be used in order to determine how shifts in viewing angle influence the quality of an image shown on a screen. Researchers are able to determine the optimal viewing range for a particular display technology as well as any constraints or compromises by studying the fluctuations in brightness and color at a variety of viewing angles.

For large-scale digital signs or curved displays, which need this information to function properly, the image quality must be consistent when seen from a range of angles.

Characterizing Projector Performance
The usage of goniophotometers, which are an essential component of projection technology, allows for the measurement of a variety of projection-related metrics, including light output, beam angle, and image distortion, to name just a few of the more common ones. Using goniophotometry, one is able to get accurate readings on the degree of spatial homogeneity and dispersion of light flux in a projected image. This information is essential for determining the image quality and ensuring that the illumination is consistent throughout the surface that is being projected onto.

With the use of goniophotometers, it is also feasible to determine throw ratios and to describe projector beam angles.

By analyzing the angular distribution of the light that projectors generate, researchers have the ability to determine the precise positioning and alignment of projectors for a wide number of applications. This ensures that there will be no exposed black areas or errant beams of light throughout the whole process.

The use of a goniophotometer allows for the assessment of image distortion in addition to problems about hotspots. Examining the light distribution from a number of different projection angles allows for the detection and quantification of distortions such as keystone, pincushion, and vignetting.

This information is essential for changing the optics of the projector and developing correction algorithms in order to achieve an improvement in image quality. You can select LISUN for the best goniophotometers.

Validating HDR and Wide Color Gamut (WCG) Capabilities
High Dynamic spectrum (HDR) and Wide Color Gamut (WCG) technologies have dramatically revolutionized the viewing experience by expanding the spectrum of colors, as well as the brightness and contrast of images. Only with the assistance of goniophotometers are the high dynamic range (HDR) and wide color gamut (WCG) capabilities of displays and projectors able to be checked and assessed.

Goniophotometry is a method that may be used in order to assess the brightness, black levels, and contrast ratios of high dynamic range (HDR) panels. Evaluating a panel’s light output at varied brightness levels and from a range of viewing angles may help to establish both the HDR performance of the display as well as whether or not it complies with industry standards.

Goniophotometers are another tool that may be used to characterize the color gamut coverage and accuracy of displays and projectors. By examining the spectral distribution of the light emitted at a variety of angles, researchers have the ability to assess the color performance and gamut coverage of displays and projectors.

Because having access to this data is essential in disciplines such as digital filmmaking, professional photography, and graphic design, to name just a few examples of these kinds of work environments, a wide color gamut is necessary.

Goniophotometers are also helpful for determining whether or not the colors on a whole screen or projection are consistent with one another. By obtaining measurements of chromaticity coordinates and color temperature from a number of different vantage points, researchers are able to identify variations in color or differences in color temperature.

These data are necessary for preserving the accuracy of the colors and making certain that the whole screen or projection area appears the same.

In addition, goniophotometers are an essential component in the process of determining the overall quality of the viewing experience provided by virtual reality (VR) systems and 3D displays.

Researchers are required to assess the light distribution and cross-talk over a wide range of viewing angles in order to conduct an analysis of the depth perception and image quality of 3D displays. This knowledge may be used to improve the design of 3D displays and virtual reality (VR) systems so that they better immerse people in surroundings that are realistic and interesting.

Measurements obtained using goniophotometry are also useful for anti-glare and anti-reflection systems designed for use with displays and projectors.

By analyzing how light is dispersed and how reflections behave from a variety of perspectives, researchers have a better chance of locating and resolving issues such as glare and unwanted reflections. Because the eyes of the viewer may be impacted by the light in the environment, this is particularly important for digital signs that are shown outside and for head-up displays in vehicles.

Additionally, goniophotometers are useful for characterizing and fine-tuning display or projection systems for specific applications. For instance, goniophotometric measurements may be used to evaluate how well an automobile’s display functions in a range of lighting and viewing conditions. This helps to ensure that the driver is both safe and comfortable while operating the vehicle.

In order to make an accurate diagnosis and selection of a treatment plan, it is necessary to evaluate the reliability and consistency of the image rendering in medical imaging displays. This is where goniophotometry comes into play.

Conclusion
Display and projection technologies rely heavily on goniophotometers because they provide accurate measurements of light distribution, picture quality, color performance, and user experience. Manufacturers and researchers may improve the visual experience for consumers by employing goniophotometric data to fine-tune display and projection systems, achieve uniform lighting, increase picture quality, evaluate HDR and WCG capabilities, and more.

Digital signage, entertainment, virtual reality, and medical imaging are just few of the fields where goniophotometry has been put to use to enable the creation of displays and projectors of the highest possible quality.
