In the field of optical measurement, two key instruments—LISUN’s vertical goniophotometer and the standard illuminance meter—play indispensable roles. Although their functions and applications differ significantly, they share a strong technical relationship that enables them to complement each other in various lighting engineering projects. This article presents an in-depth analysis of both devices, covering their working principles, technical features, usage scenarios, and mutual interconnection. It also discusses how these tools support lighting design, quality control, and performance evaluation, highlighting their combined value in modern lighting applications.
With the rapid development of LED technology and growing emphasis on lighting efficiency and comfort, accurate optical measurements have become more crucial than ever. Whether for product certification, indoor lighting planning, or scientific research, selecting the right measurement tool is essential. The vertical goniophotometer provides detailed angular light intensity data, while the illuminance meter delivers localized illumination readings. Together, they form a powerful toolkit for lighting professionals aiming to optimize visual environments.
LM-79 Moving Detector Goniophotometer (Mirror Type C)

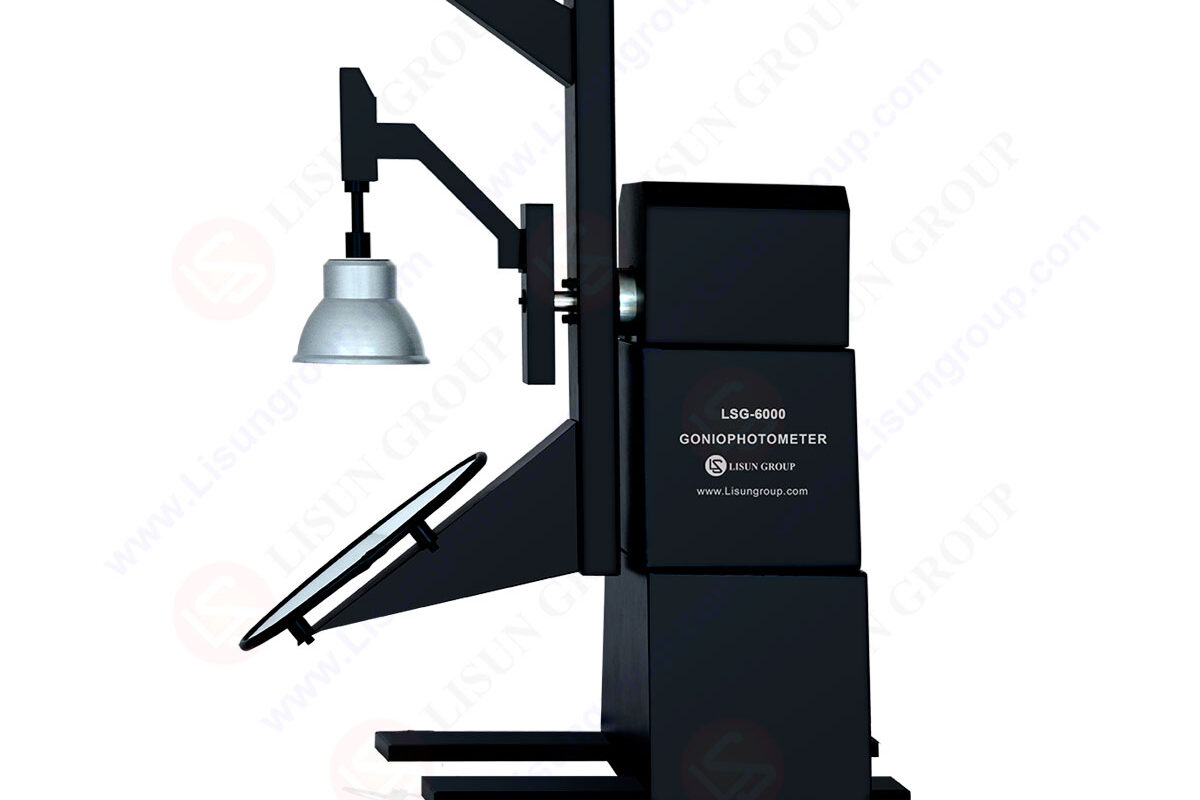

The LSG-6000 vertical goniophotometer is a high-precision optical measurement system designed for determining the spatial distribution of luminous intensity emitted by lamps or light sources. It works by rotating the test lamp in three-dimensional space and measuring its luminous intensity at different angles using a highly sensitive photodetector. These measurements are then used to generate a photometric curve, which describes the directional output of the light source.
This method allows engineers and designers to visualize how light spreads from a fixture in all directions—a critical factor when designing lighting systems for roads, industrial spaces, commercial buildings, or residential interiors. Understanding this distribution helps ensure uniform lighting and optimal energy use.
The vertical goniophotometer integrates advanced rotary stages and calibrated photodetectors to ensure precise and consistent data collection across multiple tests. Equipped with specialized software, the device automates rotational movement and real-time data logging, minimizing human error and streamlining the testing process. From compact LED bulbs to large-scale industrial floodlights, the vertical goniophotometer supports a wide range of lamp sizes and types, making it versatile for diverse testing needs.
Lighting manufacturers use the vertical goniophotometer during the design phase to evaluate the optical performance of prototypes. Engineers can analyze beam angles, light uniformity, and energy efficiency before finalizing production models. Additionally, the vertical goniophotometer LSG-6000 meets LM-79-24、LM-79-19, COMMISSION DELEGATED REGULATION (EU) 2019/2015, CIE-121, CIE S025, SASO 2902, IS16106 and EN13032-1 clause 6.1.1.3 type 4 requirements. This ensures that products meet global lighting safety and performance requirements. Universities and research institutions often rely on the LSG-6000 for experimental studies related to lighting physics, optical simulation, and new material testing. Its ability to provide raw photometric data makes it an invaluable tool for academic purposes.
An illuminance meter measures the amount of visible light falling on a surface, expressed in lux (lx). It operates based on the photoelectric principle: a photosensitive sensor, typically made of silicon photodiodes, captures incoming light and converts it into an electrical current proportional to the light intensity. This signal is then processed and displayed as a numerical value on the device’s screen.
Unlike the vertical goniophotometer LSG-6000, which focuses on the entire spatial distribution of light, the illuminance meter offers spot measurements at specific points, making it ideal for field assessments. This feature is particularly useful for verifying lighting conditions in real-world settings where immediate adjustments may be necessary.
Most illuminance meters are small and lightweight, allowing users to carry them easily to various locations for on-site measurements. Due to its simple structure and direct reading interface, the illuminance meter provides immediate results, facilitating quick adjustments in real-world lighting setups. Compared to full-scale goniophotometers like the LSG-6000, illuminance meters are much more cost-effective, making them accessible for smaller budgets and everyday use.
Interior designers and architects use illuminance meters to assess lighting levels in offices, classrooms, museums, and retail stores to ensure optimal visual comfort and productivity. In factories, laboratories, and warehouses, maintaining appropriate lighting conditions is critical for worker safety and operational efficiency. Illuminance meters help monitor and adjust lighting to comply with workplace safety regulations. Growers use these instruments to measure light intensity in greenhouses and indoor farms to optimize plant growth and improve yield quality. Adjusting light levels according to crop needs helps maximize photosynthesis and reduce energy waste.
Although both devices serve the purpose of measuring light, their methodologies, precision levels, and application contexts differ significantly. The vertical goniophotometer LSG-6000 provides detailed angular light intensity distribution, whereas the illuminance meter offers point-based illuminance measurement. The former is primarily used for laboratory testing, R&D, and certification, while the latter is more suited for field inspection, maintenance, and troubleshooting. While the LSG-6000 offers superior accuracy suitable for detecting micro-level changes, the illuminance meter provides moderate precision adequate for general use. Operationally, the LSG-6000 requires trained personnel and controlled environments, whereas the illuminance meter is simple and user-friendly. Cost-wise, the LSG-6000 represents high-end equipment, while the illuminance meter is affordable and widely available.
Despite their differences, there exists a clear technical linkage between the vertical goniophotometer LSG-6000 and the illuminance meter. The LSG-6000 generates a complete set of photometric data, including intensity values at every angle. Using mathematical modeling, this data can be transformed into predicted illuminance values at any point in space. Therefore, if one knows the distance and orientation of a target surface relative to the light source, it becomes possible to estimate the expected illuminance without direct measurement. Conversely, measured illuminance data from a meter can be reverse-engineered to infer certain characteristics about the original light source’s distribution pattern. While not as comprehensive as LSG-6000 data, this information is still valuable for practical lighting analysis.
In a typical lighting design project, the workflow begins with laboratory testing using the LSG-6000. Once the desired light distribution is achieved through design modifications, actual installations are followed by field verification with an illuminance meter. This two-step process ensures that theoretical models align with real-world performance. For instance, when designing a sports stadium lighting system, engineers first use the LSG-6000 to characterize each lamp type under consideration. Then, after installation, they perform extensive illuminance measurements across the field to confirm that the lighting meets regulatory standards such as FIFA or IAAF requirements.
While the LSG-6000 offers superior accuracy, it is not always feasible to use it in every situation due to its complexity and setup time. On the other hand, although less precise, the illuminance meter provides sufficient detail for most day-to-day lighting evaluations. Lighting professionals often adopt a hybrid approach: using the LSG-6000 for initial validation and the illuminance meter for ongoing monitoring and fine-tuning.
• LED Streetlight Quality Assurance
A city planning department was tasked with upgrading its public street lighting system. Before procurement, manufacturers were required to submit photometric reports generated using the LSG-6000 to prove that their products met road lighting standards (e.g., EN 13201).
Once installed, city engineers conducted random checks using portable illuminance meters to verify that the light levels on the ground matched those specified in the design plans. Discrepancies were corrected by adjusting mounting heights or replacing faulty fixtures. This iterative process ensured that the final installation met the required specifications and provided optimal lighting for pedestrians and drivers alike.
• Commercial Office Lighting Upgrade
An office building management team wanted to enhance energy efficiency while improving lighting comfort. They began by having existing lighting fixtures tested on the LSG-6000 to determine their photometric properties.
Armed with this data, they modeled new lighting layouts using lighting simulation software. After implementing the new LED layout, they used illuminance meters to validate that all workspaces now received adequate illumination (typically 500 lx or higher), meeting ISO 9241-6 ergonomic guidelines. This ensured that employees had a comfortable and productive working environment, thereby enhancing overall business performance.
In summary, LISUN’s LSG-6000 vertical goniophotometer and the standard illuminance meter fulfill distinct yet interconnected roles in the field of lighting measurement. While the LSG-6000 excels in capturing detailed photometric data necessary for design and certification, the illuminance meter serves as a practical tool for on-site verification and maintenance. Understanding the strengths and limitations of each instrument allows lighting professionals to make informed decisions, ensuring both technical accuracy and practical feasibility. As lighting technologies continue to evolve toward smart systems and adaptive control, the integration of advanced optical measurement tools will remain vital to achieving sustainable, efficient, and visually comfortable environments.
LISUN continues to lead in the development of innovative optical instrumentation, supporting industries worldwide with reliable, accurate, and user-friendly solutions tailored to modern lighting challenges. By leveraging these advanced tools, professionals can create lighting designs that not only meet regulatory standards but also enhance the user experience, leading to better outcomes in terms of energy efficiency, safety, and comfort.
Through continued innovation and application of these technologies, we can look forward to even more sophisticated lighting solutions in the future. The synergy between high-precision laboratory instruments like the LSG-6000 and practical field tools such as illuminance meters will undoubtedly play a key role in shaping the next generation of lighting systems. With a focus on sustainability, adaptability, and user-centric design, these advancements promise to revolutionize how we think about and interact with light in our daily lives.
