ISO 16750-2:2023 Automotive Electrical Disturbances Test System

Product No: LS-ISO16750

Leave a Message

Description
Download

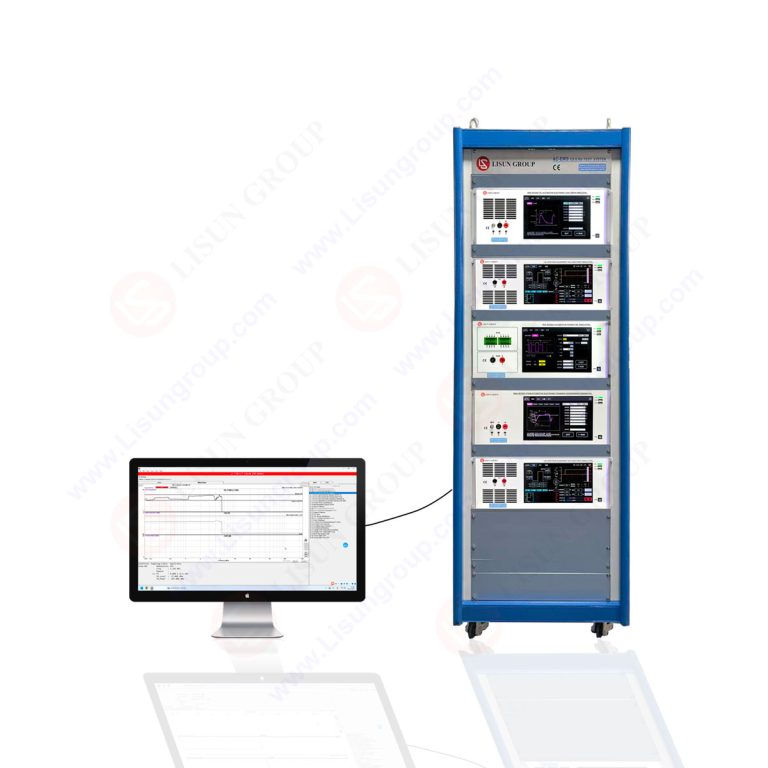

The LS-ISO16750 Automotive Electrical Disturbances | Automotive Electronic Performance Test System is an integrated electrical performance compliance testing solution designed by LISUN specifically for automotive electronic and electrical components (such as ECUs, sensors, and on-board chargers). Its core function is to simulate various stress environments that may occur in the electrical system during actual vehicle operation (such as voltage fluctuations, transient pulses, grounding offsets, and wiring harness interruptions). It assesses the electrical performance stability and reliability of automotive components according to international and OEM standards, proactively identifying the risk of component failure under scenarios such as power supply anomalies and sudden load changes. This provides standardized testing for automotive electronics R&D verification, production line quality inspection, and third-party certification.

The LS-ISO16750 Automotive Electrical Disturbances | Automotive Electronic Performance Test System fully complies with the ISO 16750-2:2023 international standard and is also compatible with mainstream OEM specifications such as Volkswagen VW 80000, General Motors GM 3172, and Nissan 28401, meeting the customized testing needs of different car brands. The system covers 12 core test items, including DC power supply voltage, transient overvoltage, superimposed AC current, and wiring harness micro-interruption, making it a core tool for automotive electronics companies to break through international certification barriers and ensure product quality.

Standards:

Standards No.	Standards Name
ISO 16750-2:2023	Road vehicles-Environmental conditions and testing for electrical and electronic equipment-Part 2: Electrical loads
VW 80000:2021	Volkswagen Group Standard — Electrical tests for components in motor vehicles
GM 3172:2020	General Motors Standard — Electromagnetic compatibility requirements for automotive components
LV 124:2022	Verband der Automobilindustrie (VDA) Standard — Electrical requirements for components in motor vehicles
GB/T 28046.2-2011	道路车辆电气及电子设备的环境条件和试验第 2 部分：电气负荷

System Configuration:

Product Name	LISUN Model	Specifications
Four-Quadrant Bipolar Voltage Variation Simulator	LIS-APS-4030K300	Fully compliant with ISO 7637-2 and ISO 16750-2:2023 standards, it can generate Pulse 2b, Pulse 4 and derived waveforms, with an output power of ±40V/±30A/300KHz (other options: voltage ±40V and ±80V; current ±10A/±20A…±100A/±150A), which has built-in ripple voltage probe, current probe and oscilloscope.
Automotive Load Dump Pulse Simulator	EMS-ISO7637-P5-80V30A	Generate the Pulse 5a and Pulse 5b waveforms in accordance with ISO 7637-2 and ISO 16750-2:2023 clause 4.6.4.

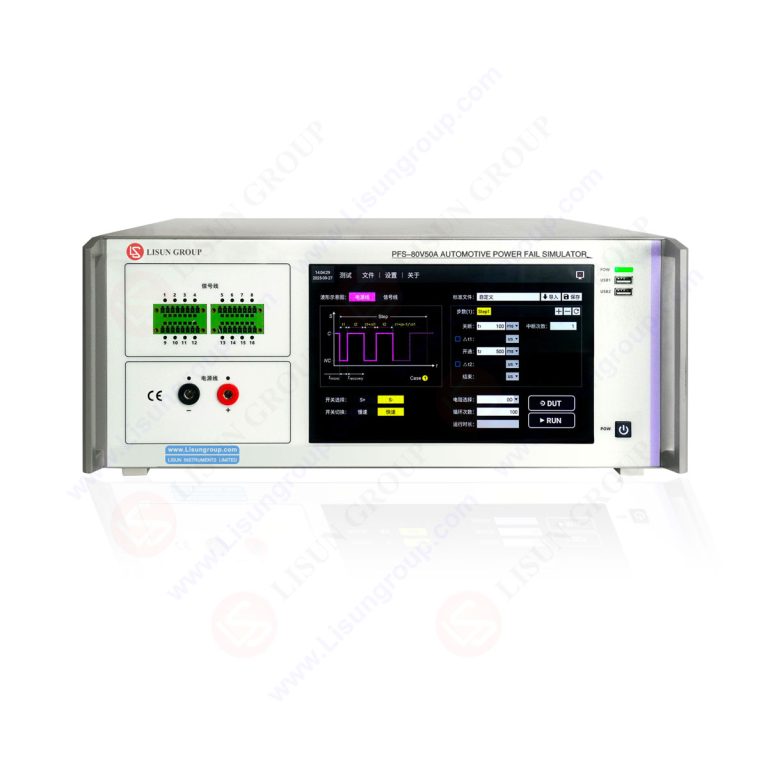

Automotive Power Fail Simulator	PFS-80V50A	Fully compliant with ISO 16750-2:2023 Clause 4.9, it is equipped with 1 pair of positive/negative for power lines testing, and 16 × 2 A channels for signal lines testing, supporting 1 µs min interruption time and ≤ 200 ns switching speed.
Ground Offset Box	LIS-OFFSET-10V10A	Adopting a Four-quadrant Bipolar Power Supply architecture, it supports CC/CV dual-mode output with maximum ratings of ±10V/±10A and 100kHz bandwidth, fully compliant with ISO 16750-2:2023 Clause 4.8.
Load Short Circuit Switch	LIS-LSCS-1730	Equipped with 30 channels for signal lines and power lines short-circuit testing. (for 50 channels, the LISUN optional model LIS-LSCS-1750 can be selected), which fully meets the requirements of ISO 16750-2:2023 clauses 4.10.2 and 4.10.3
19-inch Standard Cabinet	CASE-19	The above instruments are mounted in a single cabinet, which is aesthetically pleasing and easy to operate

Note: Optional LISUN instruments are available for EMC Automotive Transient Immunity | Emissions Testing to fully meet ISO 7637-2 and ISO 7637-3 standards. For specific system configuration, please refer to the ISO 7637 Automotive Transient Immunity Generator

Test Items:

ISO 16750-2:2023 Test Items	LISUN Model
4.2、Direct current(DC) supply voltage	LIS-APS-4030K300（The appropriate product model should be selected based on the maximum voltage and current of the object being tested.）
4.3.1、Superimposed alternagting voltage
4.3.2、Transient overvoltage
4.4、Superimposed alternating voltage
4.5、Slow decrease and increase of supply voltage
4.6.1、Drops or interrupts in supply voltage
4.6.2、Reset behaviour at voltage drop
4.7、Reversed voltage
4.6.3、Starting profile
4.6.4、Load dump	EMS-ISO7637-P5-80V30A（The appropriate product model should be selected based on the maximum current of the object being tested.）
4.8、Ground reference and supply offset	LIS-OFFSET-10V5A
4.9.1、Single line interruption	PFS-80V50A（The appropriate product model should be selected based on the maximum current of the object being tested.）
4.9.2、Multiple line interruption
4.10.2、Short circuit in signal line and load circuit	LIS-LSCS-1730
4.10.3、Overloading of load circuits	LIS-LSCS-1730
4.11、Withstand Voltage*	LS9923 and GDJS-100B（Other test chamber specifications can be selected based on the maximum size of the object being tested.）
4.12、Insulation Resistance*
