24 Nov, 2017 3210 Views Author: root

New Product – LMS-6000 Portable CCD Spectroradiometer

In order to meet the demands of the lighting market for handle spectrometer, Lisun launches LMS-6000 Portable CCD Spectrometer recently. Compare with Lisun CHROMA-2 Pocket Chroma Meter, LMS-6000 is lighter and easy to carry. Of course, the price is more competitive. LMS-6000 can be inserted SD card to store data, which is easy to use.

Let us introduce LMS-6000 briefly.

  1. Spectral platform: telephoto asymmetrical crossed CT system.
  2. Wavelength range: 380~780nm(350~950nm), FWHM: 2nm, Spectral resolution: 0.2nm
  3. Sensor: CCD with 3648pix
  4. Integration time: 50μs~20000ms
  5. Stray light: <0.1%
  6. Illuminance range: 5~200000lx
  7. CCT range: 1000~100000K
  8. Color coordinates accuracy: ±0.001@standard light source A 2856K
  9. Zero calibration: automatically self calibration
  10. Test mode: single/continuous
  11. LCD screen: 5inch high definition IPS capacitive touch screen and resolution is up to 480*854
  12. With 4000mAh rechargeable Li-ion battery continuous working time 20 hours
  13. Structure: aluminum alloy carving
  14. Size is one Iphone 6S and thickness is like diameter of 1RMB coin

We have a series model to test special parameters: LMS-6000 is basia model. LMS-6000L is for brightness. LMS-6000P is for PAR and PPFD. LMS-6000S is for TM-30 Rf and Rg. LMS-6000F is for flicker test. LMS-6000B is for blue light hazard.

Here is the photo for LMS-6000:

LMS-6000 Portable CCD Spectroradiometer

New Product – LMS-6000 Portable CCD Spectroradiometer

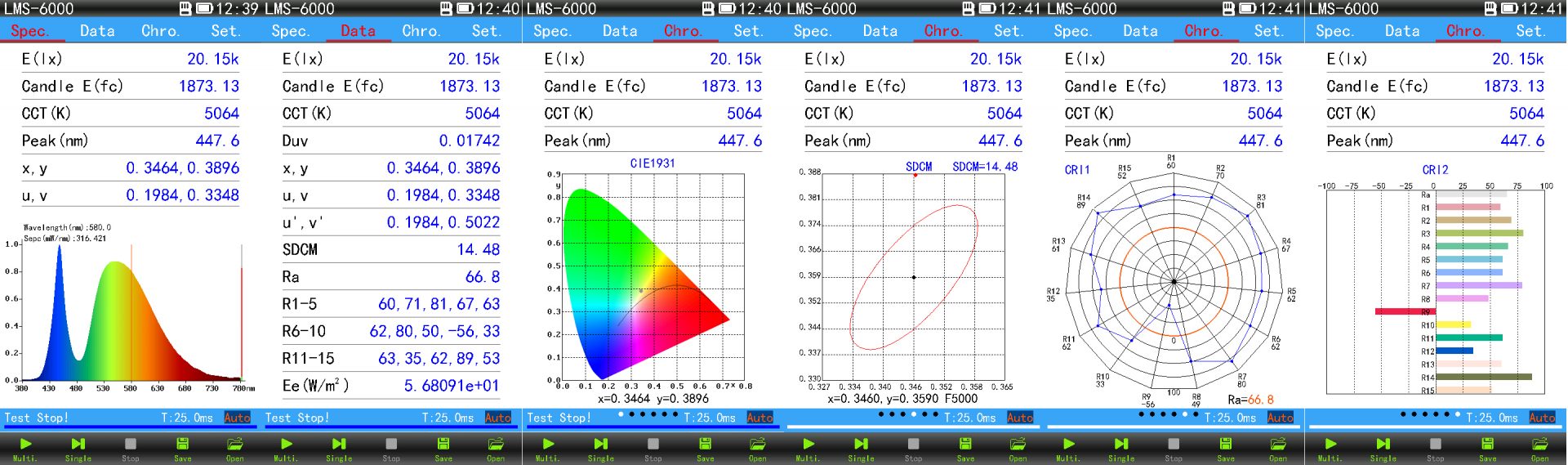

LMS-6000 Test Report:

New Product – LMS-6000 Portable CCD Spectroradiometer

Lisun LMS-6000 can be used for lighting field measurement directly. LMS-6000 can measure illuminance E(lx), Candle E(fc), CCT(K), Duv, chromaticity coordinates(x,y), SDCM, CRI, Irradiance Ee(W/m2), Photopic and Scotopic Vision ratio(S/P), Dominant wavelength etc. LMS-6000 can also measure Energy-saving lamps, CFL, HID lamps etc narrow spectrum light source. The application is very wide.

Welcome new and old customers to consult LMS-6000 Portable CCD Spectroradiometer price.

Lisun Instruments Limited was found by LISUN GROUP in 2003. LISUN quality system has been strictly certified by ISO9001:2015. As a CIE Membership, LISUN products are designed based on CIE, IEC and other international or national standards. All products passed CE certificate and authenticated by the third party lab.

Our main products are Goniophotometer, Surge Generator, EMC Test SystemsESD Simulator, EMI Test Receiver, Electrical Safety Tester, Integrating Sphere, Temperature Chamber, Salt Spray Test, Environmental Test ChamberLED Test Instruments, CFL Test Instruments, Spectroradiometer, Waterproof Test Equipment, Plug and Switch Testing, AC and DC Power Supply.

Please feel free to contact us if you need any support.
