LISUN Light Flicker Test System: A Beacon of Technological Innovation and Lighting Quality Assurance

Introduction

The rapid advancement and widespread adoption of LED lighting technology have revolutionized the illumination industry, offering energy efficiency and longevity. However, the issue of light flicker has emerged as a critical factor affecting both lighting quality and user experience. Flicker, defined as rapid fluctuations in light output, can cause visual discomfort, headaches, and even severe health issues, particularly in prolonged exposure to low-quality light sources. Consequently, flicker testing has become an essential component of light source evaluation, directly impacting product quality, user health, and safety. LISUN is a leading manufacturer of testing equipment in China, has developed the LSRF-3 Light Source Start, Rise Time, and Light Flicker Test System, renowned for its high precision, multifunctionality, and compliance with international standards. This article explores the technical advantages, functional features, application scenarios, and industry value of the LISUN LSRF-3 system, underscoring its role as a cornerstone in ensuring high-quality lighting solutions.

The Importance of Light Flicker Testing

Light flicker refers to rapid changes in light intensity caused by fluctuations in power supply or driver circuit design. Low-frequency flicker (<80Hz) can be perceptible to the human eye, leading to visual fatigue, while high-frequency flicker (80Hz–2000Hz), though less noticeable, may cause the stroboscopic effect, impacting spatial perception and potentially triggering health issues such as headaches or seizures in sensitive individuals. International standards, including IEEE Std 1789, IEC TR 61547-1:2020, CIE SVM, and EU ErP regulations ((EU) 2019/2020), set stringent requirements for flicker metrics such as Short-Term Flicker Perceptibility (Pst LM) and Stroboscopic Visibility Measure (SVM). These standards aim to ensure light sources are safe, comfortable, and compliant with global market expectations.

The LISUN LSRF-3 flicker test system is specifically engineered to meet these standards, offering high-precision measurements of light source start time, rise time, and flicker parameters. By providing reliable test data, the system enables manufacturers and testing agencies to validate compliance with global regulations, ensuring that lighting products meet the highest standards of quality and safety.

Technical Advantages of the LSRF-3 Flicker Test System

The LISUN LSRF-3 Light Source Start, Rise Time, and Flicker Test System is an advanced, high-precision instrument that combines multifunctionality with user-friendly operation. Its core technical advantages include:

• High-Precision Measurement and Rapid Sampling
The LSRF-3 is equipped with a Class A fast photometric probe, boasting a sampling rate of up to 100kHz. This allows the system to capture minute changes in light intensity with exceptional accuracy. The system supports a flicker measurement range of 0–100% and a frequency range of 0.1Hz to 3000Hz, accommodating a wide variety of light sources, including LEDs, fluorescent lamps, and energy-saving bulbs. Utilizing high-resolution sensors and advanced signal processing technology, the LSRF-3 precisely calculates critical flicker metrics such as Pst LM, SVM, and percent flicker, aligning with standards like IEEE 1789, IEC-Pst, and CIE SVM. This ensures that test results are both accurate and globally recognized.
• Multifunctional Integrated Design
Beyond flicker testing, the LSRF-3 measures start time (the duration from power-on to stable light output) and rise time (the time required for light output to increase from 10% to 90%). These parameters are crucial for evaluating a light source’s responsiveness and stability, particularly for compliance with standards such as ENERGY STAR V2.1, EU ErP regulations, and SASO2902. For instance, EU ErP regulations mandate that light sources achieve a start time of less than 0.5 seconds and a rise time of less than 2 seconds. The LSRF-3 efficiently verifies compliance with these requirements, ensuring that products meet regulatory benchmarks.
• Intelligent Software and Data Analysis
The LSRF-3 connects to PCs via a USB interface and comes with English-language software compatible with Windows 7/8/10/11, certified by Microsoft drivers. The software supports real-time data acquisition, waveform analysis, and automated test report generation. Users can intuitively visualize light intensity fluctuations over time and receive automatic assessments of flicker safety levels (e.g., Pst LM ≤ 1, SVM ≤ 1.3). The system also allows data export in multiple formats, facilitating further analysis and archival in laboratory settings, thereby streamlining compliance processes.
• Modular Design and Compatibility

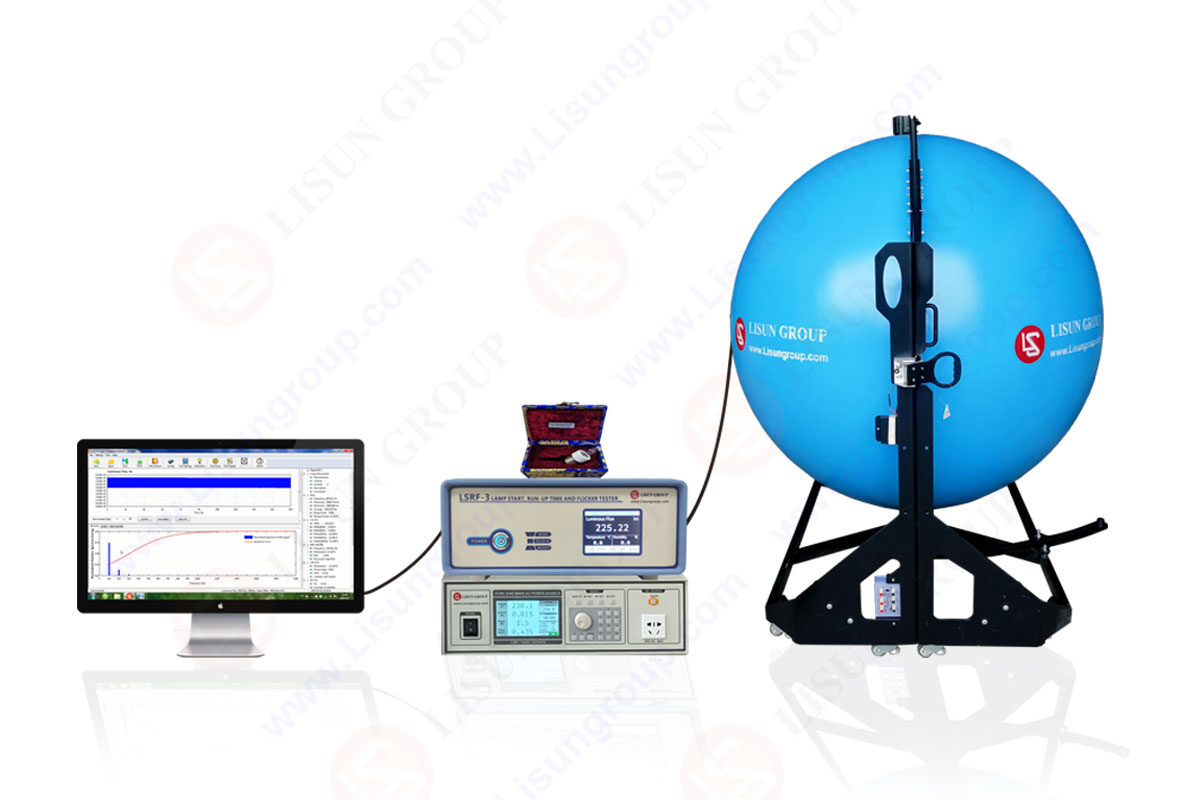

The LSRF-3 is designed for seamless integration with other LISUN testing equipment, such as the LPCE-2 integrating sphere system or the LSG-6000 goniophotometer. This compatibility makes it an ideal upgrade for existing LISUN customers. To ensure test environment stability, particularly when measuring power fluctuation-related metrics like Pst LM(I), the system must be paired with the LSP-500VARC-Pst precision AC variable frequency stabilized power supply or a standard lamp. This modular approach enhances the system’s versatility and adaptability to diverse testing scenarios.

Functional Features of the LSRF-3 Flicker Test System

The LSRF-3 stands out for its robust functionality, tailored to meet the diverse needs of the lighting industry. Its key features include:
• Broad Testing Range
The LSRF-3 measures flicker across a frequency range of 0.1Hz to 3000Hz, covering both low- and high-frequency phenomena. This makes it suitable for testing LEDs, fluorescent lamps, and other light sources. Additionally, its illuminance measurement range spans 0.1lx to 200,000lx, accommodating everything from small indoor lamps to high-power outdoor streetlights.
• High Reliability and Standards Compliance
The LSRF-3 is designed to comply with international standards, including:
• IEEE Std 1789: Defines flicker’s health impacts and limits for fluctuation depth.
• IEC TR 61547-1:2020: Specifies testing methods for Pst LM and SVM.
• EU ErP Regulation ((EU) 2019/2020): Requires SVM ≤ 1.3 for adult workplaces and ≤ 1 for children’s learning environments.
• ENERGY STAR V2.1: Sets strict requirements for start and rise times.
These standards ensure that LSRF-3 test results are universally accepted, supporting manufacturers in achieving global market access.
• User-Friendly Operation
The LSRF-3 features an intuitive interface, allowing users to place the light source on the test platform, calibrate the system, and select parameters ascended parameters (e.g., Pst, SVM, or percent flicker). The system’s fast photometric probe and stable test fixtures ensure precise light source positioning, minimizing external interference. Upon completion, the software generates standardized reports, simplifying certification processes.
• Flexible Test Configurations
The LSRF-3 supports multiple testing configurations, such as absolute photometry with an integrating sphere or relative photometry with a photometric probe. It also accommodates power fluctuation testing when paired with the LSP-500VARC-Pst power supply, enabling comprehensive evaluation of light source performance under unstable voltage conditions.

Application Scenarios of the LSRF-3

The LISUN LSRF-3 flicker test system is widely used across various domains, addressing diverse industry needs:
• LED Lighting Manufacturing and Quality Control
LED manufacturers rely on the LSRF-3 to validate flicker performance at different dimming levels (100%, 20%, or minimum dimming). Test results typically show that high-quality LED lamps achieve Pst LM values below 1 and SVM values below 1.3, indicating low flicker levels suitable for prolonged use, in compliance with EU ErP, ENERGY STAR, and CA CEC standards.
• Certification and Regulatory Compliance
The LSRF-3 equips testing agencies and laboratories with a reliable tool for ensuring light source compliance with certifications like CE, FCC, and SASO2902. Its high-precision measurements and standardized reports facilitate market entry in regions such as Europe, North America, and the Middle East.
• Automotive and Transportation Lighting
In the automotive sector, the LSRF-3 evaluates the flicker performance of headlights and signal lights, ensuring stability and safety in dynamic environments. When paired with the LSG-1950 goniophotometer, it provides detailed analysis of light intensity distribution and flicker characteristics, meeting transportation industry standards.
• Research and Development
Research institutions use the LSRF-3 to study flicker characteristics of novel light sources, enabling engineers to optimize driver circuit designs. For example, waveform analysis can guide improvements in electrolytic capacitor configurations or dual-stage driver systems, reducing flicker depth and enhancing light quality.

Market Competitiveness of the LISUN LSRF-3

The LISUN LSRF-3 flicker test system enjoys significant competitive advantages in the market:
• Localized Expertise and Cost-Effectiveness
As a Chinese brand, LISUN understands the specific needs of the local lighting industry, offering solutions tailored to regional standards. Compared to imported systems, the LSRF-3 delivers comparable performance at a lower cost, reducing procurement and maintenance expenses for customers.
• Continuous Innovation and Upgrades
The LSRF-3 has been on the market for over a decade, with LISUN’s engineering team continually enhancing its features, such as real-time waveform analysis. Comprehensive FAQs and technical support ensure the system remains at the forefront of industry advancements.
• Robust After-Sales Support
LISUN maintains multiple service centers across China, providing 24/7 technical support and rapid maintenance services. The LSRF-3’s remote diagnostic capabilities minimize downtime, ensuring operational efficiency for users.

Future Development Outlook

As global awareness of lighting quality and its health implications grows, flicker testing will play an increasingly vital role in the lighting industry. LISUN plans to advance the LSRF-3 in the following areas:
• Intelligent Upgrades
Future iterations of the LSRF-3 will incorporate AI algorithms and cloud-based data analytics, offering predictive flicker analysis and optimization recommendations to enhance testing efficiency.
• Adaptation to Emerging Technologies
With the rise of smart lighting and IoT devices, the LSRF-3 will expand its testing capabilities to support complex dimming and control protocols, addressing the needs of next-generation lighting systems.
• Global Market Expansion
LISUN is actively pursuing international market growth, collaborating with global certification bodies to enhance the LSRF-3’s recognition in Europe, North America, and Asia, ensuring it meets the evolving demands of the global lighting industry.

Conclusion

The LISUN LSRF-3 Light Source Start, Rise Time, and Flicker Test System stands as a benchmark in flicker testing, combining high precision, multifunctionality, and user-friendly design. Whether ensuring compliance with stringent international standards or optimizing light source designs, the LSRF-3 delivers unmatched performance and reliability. As LISUN continues to innovate, the LSRF-3 will remain a vital tool in helping the global lighting industry achieve superior product quality, creating healthier and more comfortable lighting environments for users worldwide.
