Abstract
This paper focuses on the significance of ISTA and ASTM Drop Test Machines for packages, with a particular emphasis on the LISUN DT-60KG Automatic Double – Arms Drop Test Machine. It elaborates on how these machines measure the impact that packages endure during transportation and handling processes, such as drops. By conducting relevant tests, the impact strength of packages can be identified, which provides crucial guidance for packaging design. Through in – depth analysis and the presentation of data and principles, this paper aims to enhance the understanding of the importance of drop test machines in ensuring the integrity of packages and their contents during the supply chain journey.
1. Introduction
In the complex logistics and supply chain network, packages are constantly exposed to various mechanical stresses during transportation, loading, unloading, and storage. Among these, drop impacts are one of the most common and potentially damaging factors that can lead to product damage and economic losses. To address this issue, international standards such as ISTA (International Safe Transit Association) and ASTM (American Society for Testing and Materials) have been established, and specialized drop test machines have been developed. The LISUN DT- 60KG Automatic Double – Arms Drop Test Machine is a representative product in this field, which plays a vital role in evaluating package performance.
When a package is dropped, the product inside is subjected to sudden acceleration and deceleration forces. These forces can cause internal components to shift, collide, or even break. For example, in the case of electronic products, a single drop during transportation may lead to damage to delicate circuit boards or display screens. According to industry statistics, approximately 30% of product damages during transportation are attributed to drop – related impacts. This not only results in direct losses for manufacturers and sellers but also negatively affects customer satisfaction and brand reputation.
Drop testing provides valuable data for packaging designers. By understanding how packages respond to different drop scenarios, designers can make informed decisions about materials selection, cushioning design, and overall package structure. A well – designed package can effectively absorb and dissipate the impact energy, protecting the product inside. For instance, through drop testing, it has been found that adding a certain thickness of foam cushioning material in a package can reduce the impact force on the product by up to 50%. This kind of knowledge is essential for creating cost – effective and high – performance packaging solutions.
ISTA has developed a series of comprehensive test procedures for packages. For example, the ISTA 1A standard is designed for single – packaged products, which requires dropping the package from specific heights (such as 30 inches for packages weighing less than 150 pounds) on different surfaces (flat, edge, and corner) to simulate real – world handling and transportation conditions. The ISTA 2A standard is for small – to – medium – sized packages shipped by parcel post, with more specific drop height and orientation requirements based on package weight. These standards ensure that packages are tested under consistent and relevant conditions, enabling accurate comparison and evaluation.
ASTM also has a range of standards related to drop testing. ASTM D5276, for example, details the procedures for drop testing packages to determine their ability to withstand impacts during handling and transportation. It specifies factors such as the release mechanism of the drop test machine, the measurement of drop height accuracy, and the reporting of test results. ASTM standards are widely recognized in the industry for their scientific rigor and practical applicability, providing a solid foundation for drop test machine design and operation.
The LISUN DT-60KG Automatic Double – Arms Drop Test Machine is equipped with advanced features. It has a drop height range of 400 – 1500 mm (or can be customized as specified), which can meet the requirements of different test scenarios. The maximum weight it can measure is 60 kg, suitable for a wide variety of packages. The drop error is less than 1°, and the drop height error is within ± 10 mm, ensuring high – precision testing. It supports drop methods for face, edge, and corner, covering all possible drop orientations in real – world situations. The machine height is displayed by a digital measuring instrument and also has a calibration function for accurate height setting.
The machine operates based on an electromagnetic drive drop control system. When the test starts, the package is placed on the platform. By clicking the drop button, the electromagnetic mechanism releases the platform, allowing the package to free – fall. The double – arms structure of the machine provides stable support during the lifting and dropping process, ensuring that the package falls in a controlled and accurate manner. The motor rotation system is responsible for adjusting the drop height according to the test requirements. As shown in Figure 1, the overall structure of the machine is designed to achieve reliable and repeatable drop tests.
Operation of the LISUN DT-60KG is user – friendly. The reset mode is manual, which allows for easy preparation for the next test. It is equipped with a protection function, with limit protection switches installed on the upper and lower positions of the machine’s main lifting rod. This ensures that in case of any abnormal operation, the machine will stop immediately to prevent damage to the equipment and potential safety hazards.

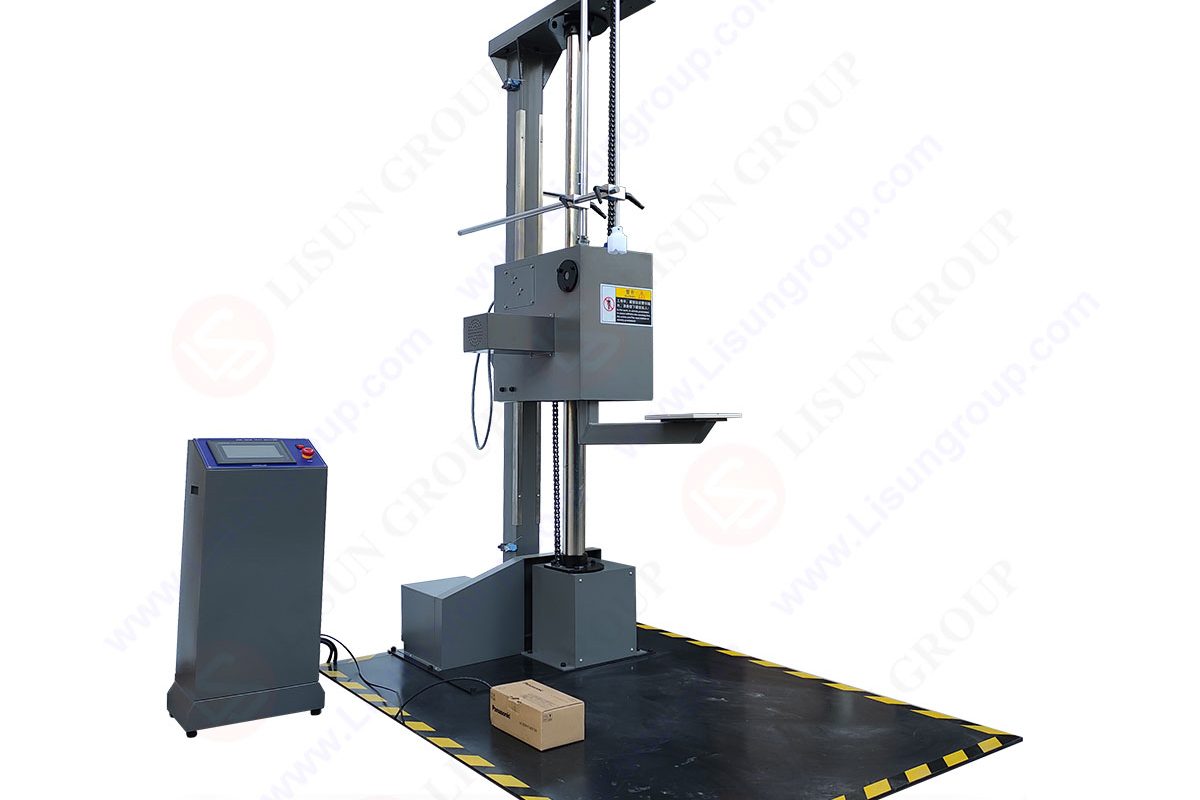

DT-60KG Automatic Double Drop Test Machine
• Sample Preparation: Select the package to be tested and ensure that it is properly packaged with the product inside, following normal packaging procedures.
• Test Setup: Set the drop height on the LISUN DT-60KG according to the relevant ISTA or ASTM standard. For example, if testing according to ISTA 1A for a 10 – kg package, the drop height might be set to • 36 inches (914.4 mm).
Drop Execution: Place the package on the platform of the machine in the appropriate orientation (face, edge, or corner as required by the test). Click the drop button to initiate the test.
• Data Collection: Observe and record any visible damage to the package and product after the drop. This may include cracks in the packaging material, deformation of the package structure, or damage to the product itself.
Based on the test results, the impact strength of the package can be evaluated. If the package shows no visible damage and the product inside remains intact after multiple drops at the specified height, it indicates that the package has a relatively high impact strength. Conversely, if there is significant damage, it suggests that the package may need improvement in its design or material selection. For example, in a series of tests on a cardboard box package, after 10 drops at a height of 1000 mm, 3 out of 10 boxes showed cracks at the corners. This data can be used to analyze the weak points of the box design and make corresponding adjustments.
• Package Material: Different materials have different mechanical properties. For example, high – density polyethylene (HDPE) has better impact resistance compared to low – density polyethylene (LDPE). Cardboard with higher grammage and better fiber quality also shows greater impact strength.
• Cushioning Design: The type and thickness of cushioning materials inside the package play a crucial role. Foam, bubble wrap, and air – filled cushions can all help absorb impact energy. A thicker layer of foam cushioning can generally provide better protection.
• Package Structure: The overall structure of the package, such as the presence of reinforced corners or a rigid frame, can affect its impact strength. A package with a well – designed folding structure may be more resistant to drops.
• Visual Inspection: After drop testing, visually inspect the package for any signs of damage, such as cracks, tears, or dents. This is a simple and straightforward method but may not detect internal damage to the product or subtle weaknesses in the packaging.
• Mechanical Testing: Use additional mechanical testing equipment to measure the residual strength of the package after the drop. For example, a compression tester can be used to check if the package’s ability to withstand vertical loads has been affected.
Based on the drop test results, if the package shows excessive damage, designers may consider changing the packaging material. For example, if a plastic package made of polypropylene (PP) fails to withstand the drops, switching to a more impact – resistant material like acrylonitrile – butadiene – styrene (ABS) may be a solution. Table 2 shows a comparison of the impact strength of different packaging materials.
If the drop test reveals that certain parts of the package, such as the corners, are more prone to damage, design modifications can be made. Reinforcing the corners with additional cardboard layers or using corner protectors can improve the package’s performance. Another option is to adjust the shape of the package to distribute the impact force more evenly. For example, changing a rectangular package to a more rounded shape may reduce stress concentration points.
8. Conclusion
ISTA and ASTM Drop Test Machines, such as the LISUN DT-60KG Automatic Double – Arms Drop Test Machine, are essential tools in the packaging industry. They accurately measure the impact that packages experience during transportation and handling, enabling the identification of package impact strength. By using the results of these tests, packaging designers can optimize their designs, select appropriate materials, and improve the overall performance of packages. This not only helps protect products during transit but also reduces costs associated with product damage. As the logistics industry continues to evolve, the importance of these drop test machines in ensuring the integrity of packages will only increase. Further research and development in this field may focus on improving the accuracy of test methods, developing more advanced testing equipment, and exploring new packaging materials and designs that can better withstand the harsh conditions of transportation and handling.
