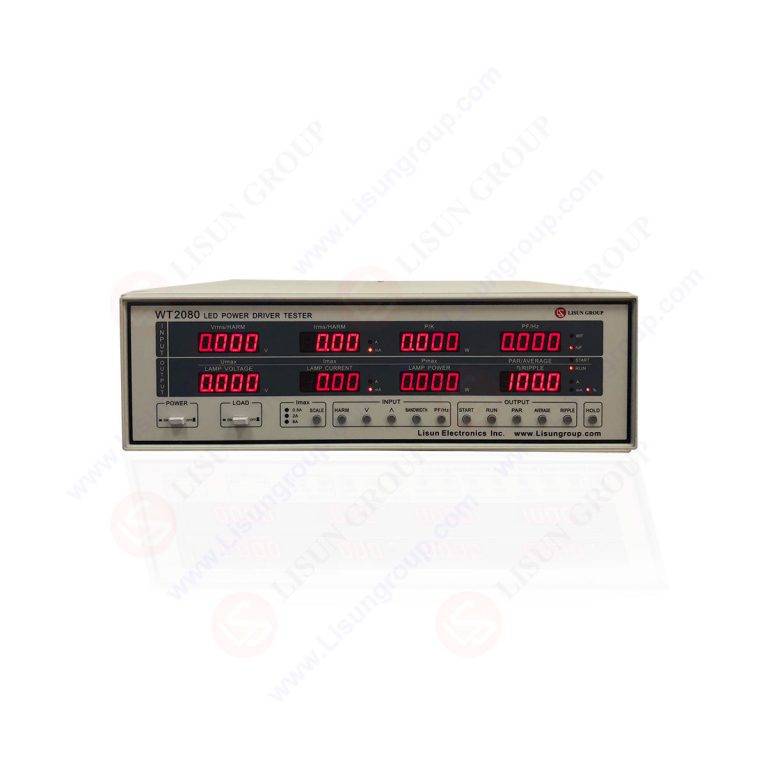

LED Power Driver online Tester

Product No: WT2080-OK

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description
  • Download
  • WT2080-OK LED Power Driver on line Testing Machine is according to GB/T 24825-2009 and IEC 62384: 2006. It suitable for LED Driver production line testing quick test (0.1s finish the testing). The WT2080-OK can test 1pc LED Driver at one time in the production line.

    Specification:
    1. Input Characteristics Test (AC)
    • To measure the input voltage, current, power, power factor, power grid frequency
    • The fundamental frequency scope of the current and voltage: 45Hz~65Hz; Narrowband range: 45Hz~5kHz; Broadband range: 45Hz~1MHz.
    • Voltage range: 0.15~300 V (CF=1.67); Current range: 1.5mA ~ 2.7A (CF=3); Power range: 0.015~800 W; Power factor range: 0.000~1.000.

    2. Input Characteristics Test (DC)
    • Measuring voltage, current, power.
    • Voltage range: 0.15~500V; Current range: 1.5mA~8A; Power range: 0.015~4000W

    3. Output Characteristics Test (AC)
    • Measuring lamp voltage, lamp current, lamp power.
    • Lamp voltage range: 0.15~300V (CF=3); Lamp current range: 1.5mA~2.7A(CF=3); Lamp power range: 0.015~800W

    4. Output Characteristics Test (DC)
    • Measuring output lamp voltage, lamp current, lamp power, ripple wave current.
    • Voltage range: 3~500V; Current range: 1.5mA~8A; Power range: 0.015~4000W; Ripple wave current range: 5mA~2.5A
